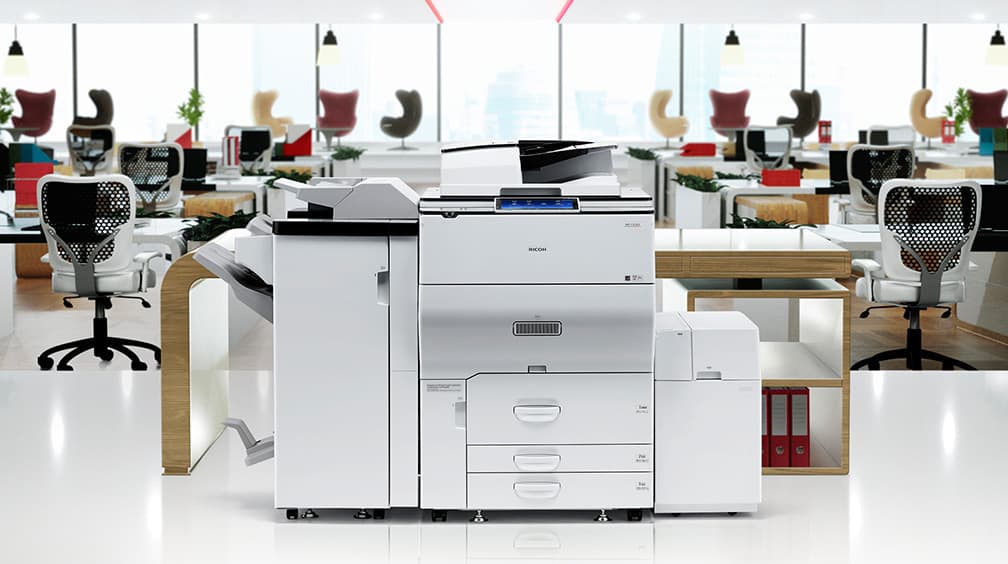

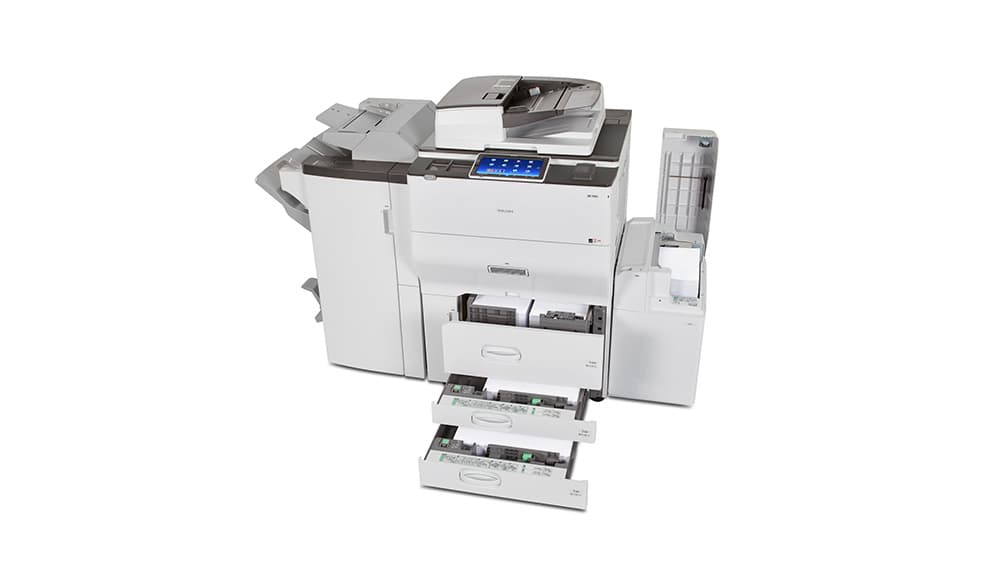

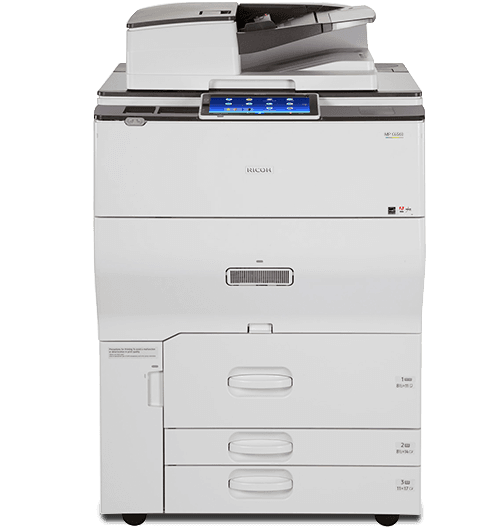

MP C6503

Fax Connection Unit Type M26

ID: 417686

• Enables users to send and receive faxes from the sub machines (up to 6) via the Primary MFP. Communicates over the network with the unit that has the fax option.

Notes:

• Fax Option Type M26 required.

Fax Option Type M26

ID: 417689

• Enable fax services: 33.6kbps, approximately 2 second transmission speed, standard JBIG, and standard 320 page memory. Includes standard Internet Fax (T.37), LAN Fax, IP-Fax (T.38), Fax Forwarding to Email, and Paperless Fax function.

G3 Interface Unit Type M2

ID: 417692

• Adds one additional fax line. Up to two lines may be added for a maximum of three lines.

Notes:

• Fax Option Type M26 required.

Memory Unit Type M26 64 MB

ID: 417695

• Memory expansion, which provides additional 64 MB memory for fascimile functions.

Notes:

• Fax Option Type M42 must be selected to add this option.

Booklet Finisher SR4130

ID: 417629

• The 2,000-sheet Booklet Finisher allows thick documents to be professionally finished as paginated, duplexed, saddle-stitched folded booklets.
• Up to 20 sheets can be saddle-stitched.
• It also offers 65-sheet, multi-position stapling, mixed sized stapling, optional hole-punching, and shift-sort collating.
• Weight: 128.7 lbs. (58 kg)
• W x D x H (inches): 25.9 x 28.7 x 38.6
• W x D x H (mm): 658 x 729 x 980

Notes:

• Booklet Finisher SR4130 cannot be installed with Copy Tray Type M26, Finisher SR4120, Finisher SR4080, or any related options.

Cooling Fan Unit Type M26

ID: 417677

• Prevents paper bricking.
• Optional cooling fan for Finisher SR4120 and Booklet Finisher SR4130.

Notes:

• This option cannot be installed with Finisher SR4110.

Cooling Fan Unit Type M31

ID: 417908

• Prevents paper bricking.
• Optional cooling fan for Finisher SR4110.

Notes:

• This option cannot be installed with Finisher SR4120 or Booklet Finisher SR4130.

Copy Tray Type M26

ID: 417904

• The 500-sheet Copy Tray is the system's most basic exit tray for printed or copied output. Select the Copy Tray if you do not require advanced finishing including stapling, hole punching, folding, or booklet making.
• When configured with this option, output is delivered face down in a neat stack.
• Weight: 4.85 lbs. (2.2 kg)
• W x D x H (inches): 13.8 x 19.7 x 6.7
• W x D x H (mm): 351 x 500 x 170

Notes:

• Copy Tray Type M26 cannot be installed with Finisher SR4120, Finisher SR4110, Booklet Finisher SR4130, Multi-Folding Unit FD4000, Cover Interposer Tray CI4020, Cover Interposer Tray CI4040, Mail Box CS4010, Multi-Folding Unit FD4000, or any related options.

Cover Interposer Tray CI4020

ID: 416640

• Compatible with Finisher SR4110 only.
• Dual Cover Interposer that allows pre-printed covers and inserts to be easily fed into the finishing workflow at the touch of a button. This option eliminates the need for time-consuming off-line manual insertion and reduces the wear and tear on originals.
• Weight: 99.21 lbs. (45 kg)
• W x D x H (inches): 4 x 28.7 x 50
• W x D x H (mm): 102 x 729 x 1,270

Notes:

• Cover Interposer Tray CI4020 cannot be installed with Cover Interposer Tray CI4040, Copy Tray Type M26, Finisher SR4120, Booklet Finisher SR4130, Mailbox CS4010, or any related options.

Cover Interposer Tray CI4040

ID: 417631

• Compatible with Finisher SR4120 or Booklet Finisher SR4130 only.
• Single Cover Interposer that allows pre-printed covers and inserts to be easily fed into the finishing workflow at the touch of a button. This option eliminates the need for time-consuming off-line manual insertion and reduces the wear and tear on originals.
• Weight: 26.46 lbs. (12 kg)
• W x D x H (inches): 4 x 23.62 x 23.62
• W x D x H (mm): 102 x 600 x 600

Notes:

• Cover Interposer Tray CI4040 cannot be installed with Cover Interposer Tray CI4020, Finisher SR4080, Copy Tray Type M26, Mail Box CS4010, or any related options.

Die Set 3-5-7 Hole

ID: 404761

• This die set accommodates a 3 Hole, 5 Hole and 7 Hole Ring Bind.

Notes:

• 1. Only one can be installed inside the GBC StreamPunch Ultra MP at a time.
• 2. For use in the GBC StreamPunch Ultra MP only.

Die Set C4 Coil Oval 43-47H

ID: 404771

• This die set accommodates a 43 Hole or 47 Hole Bind.

Notes:

• 1. Only one can be installed inside the GBC StreamPunch Ultra MP at a time.
• 2. For use in the GBC StreamPunch Ultra MP only.

Die Set C4 Round 43-47H .2475 Color Coil

ID: 404757

• This die set accommodates 43 Hole or 47 Hole Coil Bind.

Notes:

• 1. Only one can be installed inside the GBC StreamPunch Ultra MP at a time.
• 2. For use in the GBC StreamPunch Ultra MP only.

Die Set GBC 3 Hole 8mm HD

ID: 409058

• This die set accommodates a 3 Hole Bind.

Notes:

• 1. Only one can be installed inside the GBC StreamPunch Ultra MP at a time.
• 2. For use in the GBC StreamPunch Ultra MP only.

Die Set GBC CombBind 19H HD

ID: 409059

• This die set accommodates a 19 Hole Bind.

Notes:

• 1. Only one can be installed inside the GBC StreamPunch Ultra MP at a time.
• 2. For use in the GBC StreamPunch Ultra MP only.

Finisher SR4110

ID: 416632

• This 3,000-sheet Finisher is ideal for offices that produce collated and stapled sets of documents. It offers 100-sheet, multi-position stapling, mixed sized stapling, optional hole-punching, and shift-sort collating.
• Weight: 165 lbs. (75 kg)
• W x D x H (inches): 31.7 x 28.7 x 38.6
• W x D x H (mm): 805 x 729 x 980

Notes:

• Finisher SR4110 cannot be installed with Copy Tray Type M26, Finisher SR4120, Booklet Finisher SR4130, or any related options.

Finisher SR4120

ID: 417628

• This 3,000-sheet Finisher is ideal for offices that produce collated and stapled sets of documents. It offers 65-sheet, multi-position stapling, mixed sized stapling, optional hole-punching, and shift-sort collating.
• Weight: 83.7 lbs. (38 kg)
• W x D x H (inches): 25.9 x 28.7 x 38.6
• W x D x H (mm): 658 x 729 x 980

Notes:

• Finisher SR4120 cannot be installed with Copy Tray Type M26, Finisher SR4110, Booklet Finisher SR4130, or any related options.

GBC Die Set 21H-23H Wirebind

ID: 404768

• This die set accommodates a 21 or 23 Hole Twin Loop Wire 2:1 Bind.

Notes:

• 1. Only one can be installed inside the GBC StreamPunch Ultra MP at a time.
• 2. For use in the GBC StreamPunch Ultra MP only.

GBC Die Set 3 Hole

ID: 404760

• This die set accommodates a 3 Hole Ring Bind.

Notes:

• 1. Only one can be installed inside the GBC StreamPunch Ultra MP at a time.
• 2. For use in the GBC StreamPunch Ultra MP only.

GBC Die Set Coil Rnd 44H

ID: 409057

• This die set accommodates 43 Hole or 44 Hole Coil Bind.

Notes:

• 1. Only one can be installed inside the GBC StreamPunch Ultra MP at a time.
• 2. For use in the GBC StreamPunch Ultra MP only.

GBC Die Set CombBind 19-20-21 Hole

ID: 404767

• This die set accommodates a 19, 20, or 21 Hole Cerlox Bind.

Notes:

• 1. Only one can be installed inside the GBC StreamPunch Ultra MP at a time.
• 2. For use in the GBC StreamPunch Ultra MP only.

GBC Die Set VB LTR

ID: 404765

• This die set accommodates a 11 Hole Velobind Bind.

Notes:

• 1. Only one can be installed inside the GBC StreamPunch Ultra MP at a time.
• 2. For use in the GBC StreamPunch Ultra MP only.

GBC Die Set W3 Square 32-34H Wirebind

ID: 404769

• This die set accommodates a 32 or 34 Hole Twin Loop Wire 3:1 Bind.

Notes:

• 1. Only one can be installed inside the GBC StreamPunch Ultra MP at a time.
• 2. For use in the GBC StreamPunch Ultra MP only.

GBC StreamPunch Ultra MP

ID: 404056

• The GBC StreamPunch Ultra MP uses a variety of easily interchangeable die sets to punch documents inline in a variety of different binding styles. Sheets are punched on the fly with no reduction in overall productivity, and are delivered in neatly punched stacks to the system's shift tray.
• Weight: 210 lbs. (95 kg)
• W x D x H (inches): 18 x 29 x 40
• W x D x H (mm): 457 x 737 x 1,016

Notes:

• 1. Finisher SR4080 required.
• 2. Customer replaceable punch option.
• 3. Requires at least one GBC StreamPunch Ultra die set.

High Capacity Belt Stacker BST4000-1

ID: 404722

• The High Capacity Belt Stacker is a practical option for more production-oriented sites. It allows long unattended runs and stacks up to 1,000 8.5" x 11"/A4 booklets of 4 pages.
• The stacker can be configured straight after the Plockmatic 350-m or in a 90-degree angle, which attaches after the standard output tray.
• The stacker requires its own power outlet.
• W x D x H (inches): 70.3 x 17.7 x 41.7
• W x D x H (mm): 1,786 x 450 x 1,059

Notes:

• Plockmatic 350-m required.

Mail Box CS4010

ID: 416633

• The 9-Bin Mailbox offers workgroups the ability to separate and stack document output to designated bins directly from the print driver. This option helps keep workflows streamlined and organized.
• Weight: 33 lbs. (15 kg)
• W x D x H (inches): 21.26 x 23.62 x 25.98
• W x D x H (mm): 540 x 600 x 660

Notes:

• 1. One of the following finishers is required: SR4150 or Booklet Finisher SR4160.
• 2. Mail Box CS4010 cannot be installed with Copy Tray Type 9002

Multi-Folding Unit FD4000

ID: 415908

• Provides automatic inline document folding with the ability to deliver folded output in six different patterns; Half-Fold, Letter Fold-In (Tri-Fold), Letter Fold-Out (Tri-Fold), Gate-Fold, Double Parallel Fold (Four-Fold), and Z-Fold. The Multi-Folding Unit is ideal for companies that want to produce professionally finished documents such as newsletters, brochures, menus, and marketing materials in-house.
• Weight: 208.82 lbs. (92 kg)
• W x D x H (inches): 18.5 x 28.7 x 38.6
• W x D x H (mm): 470 x 729 x 980

Notes:

• One of the following finishers is required to add this option: Finisher SR4120, Finisher SR4080, or Booklet Finisher SR4130.

Output Jogger Unit Type M25

ID: 417630

• Aligns and stacks output delivered to Finisher SR4150 or Booklet Finisher SR4160.

PBM 500-m Upgrade Kit

ID: 404979

• Upgrades Plockmatic 350-m to 50 page folding capacity.

PBM-m Book Fold Module

ID: 404982

• Plockmatic PBM book fold module for square edge book folding.
• Weight: 130 lbs. (60 kg)
• W x D x H (inches): 14.2 x 24.4 x 35.4
• W x D x H (mm): 361 x 620 x 899

Notes:

• Plockmatic 350-m required.

PBM-m Cover Feeder

ID: 404720

• Cover inserter used to feed covers into the Plockmatic finishing workflow.
• Weight: 22 lbs. (10 kg)
• W x D x H (inches): 12.2 x 20.9 x 7.5
• W x D x H (mm): 310 x 531 x 191

Notes:

• Plockmatic 350-m required.

PBM-m Trim Module

ID: 404981

• Plockmatic PBM trim module for face trim of booklets only.
• Weight: 229.3 lbs. (110 kg)
• W x D x H (inches): 14.2 x 24.4 x 35.4
• W x D x H (mm): 361 x 620 x 899

Notes:

• Requires Plockmatic 350-m.

Plockmatic 350-m

ID: 404980

• The PBM350-m can staple and fold up to 35 sheets inline, which creates saddle-stitched finished booklets of up to 140 pages.
• Weight: 220 lbs. (134.9 kg)
• W x D x H (inches): 55.9 x 35.4 x 27.6
• W x D x H (mm): 1,420 x 899 x 701

Notes:

• Requires Finisher SR4110.

Plockmatic Rail Unit

ID: 404723

• Helps dock/undock the Plockmatic 350-m from the SR4110 Finisher.
• Cover inserter used to feed covers.

Notes:

• Plockmatic 350-m required.

Punch Unit PU5000

ID: 412983

• Optional hole punching unit for Finisher SR4110.

Notes:

• This option cannot be installed with Finisher SR4120 or Booklet Finisher SR4130.

SR4110 Cover Kit

ID: 404984

• Finisher cover kit that installs within the Plockmatic 350-m, required with installation of Plockmatic finisher.

Punch Unit PU3060

ID: 416612

• Optional hole punching unit for Finisher SR3230, Booklet Finisher SR3240, Finisher SR4120 or Booklet Finisher SR4130.

Notes:

• 1. One of the following finishers is required to add this option: Finisher SR3230, Booklet Finisher SR3240, Finisher SR4120 or Booklet Finisher SR4130.
• 2. This option cannot be installed with Finisher SR4080.

11" x 17"/A3 Tray Unit Type M26

ID: 417883

• Enables the feeding of 11" x 17"/A3 paper from standard Tandem Tray 1, which is normally fixed for 8.5" x 11"/A4.
• Paper Capacity up to 1,000 sheets.
• Paper Weights up to 68 lb. Bond/256 g/m².

8.5" x 14" Paper Size Tray Type M2

ID: 416637

• Enables the feeding of 8.5" x 14" paper and 8.5" x 11" SEF paper (2,750 sheets) through the LCIT RT4020.
• Paper Weights up to 58 lb. Bond/216 g/m².
• Weight: 18.5 lbs. (8.4 kg)
• W x D x H (inches): 5.9 x 21.3 x 24.6
• W x D x H (mm): 150 x 541 x 625

Notes:

• LCIT RT4020 required.

Banner Paper Guide Tray Type M26

ID: 417678

• Recommended when printing on banner paper to avoid paper skew.
• Supports printing on to banner sheets up to 49.6" (1,260mm) long via the Bypass Tray.

LCIT RT4020

ID: 416699

• Provides an additional 4,400 sheets.
• Paper Sizes up to 8.5" x 11"/A4.
• Paper Weights up to 58 lb. Bond/216 g/m².
• Weight: 44.1 lbs. (20 kg)
• W x D x H (inches): 13.8 x 21.3 x 24.6
• W x D x H (mm): 351 x 541 x 625

Notes:

• LCIT RT4020 cannot be installed with LCIT RT4050.

LCIT RT4050

ID: 417878

• Provides an additional 2,200 sheets.
• Paper Sizes up to 13" x 19.2".
• Paper Weights up to 80 lb. Bond/300 g/m².
• Weight: 180.8 lbs. (82 kg)
• W x D x H (inches): 34.2 x 28.7 x 25.9
• W x D x H (mm): 869 x 729 x 658

Notes:

• LCIT RT4050 cannot be installed with LCIT RT4020 or any related options.

Tab Sheet Holder Type M2

ID: 416642

• Allows users to set up and print on tabs to separate chapters within the document, eliminating the manual collation of document sets.
• Can be used in either Tray 2 or Tray 3, but not both.

Embedded HotSpot Option Type S

ID: 415620

• Required to enable HotSpot printing. One year HotSpot printing subscription service.

Extended USB Board Type M19

ID: 417566

• Required for printing from USB Type B port.

Notes:

• Extended USB Board Type M19 cannot be installed with IEEE 1284 Interface Board Type M19, IEEE 802.11a/g/n Interface Unit Type M19, or File Format Converter Type M19.

File Format Converter Type M19

ID: 417508

• Required to convert formats and drag to desktop documents stored via Copy or Print mode.

Notes:

• File Format Converter Type M19 cannot be installed with the following options: IEEE 1284 Interface Board Type M19, IEEE 802.11a/g/n Interface Unit Type M19, or Extended USB Board Type M19.
• *Exception - The File Format Converter Type M19 can be installed with the following options on the MP C4504ex or MP C6004ex models: IEEE 1284 Interface Board Type M19, IEEE 802.11a/g/n Interface Unit Type M19, or Extended USB Board Type M19.

IEEE 1284 Interface Board Type M19

ID: 417596

• For environments that require parallel connectivity.
• Allows device connection with legacy computer equipment.

Notes:

• IEEE 1284 Interface Board Type M19 cannot be installed with IEEE 802.11a/g/n Interface Unit Type M19, File Format Converter Type M19, or Extended USB Board Type M19.

IEEE 802.11a/g/n Interface Unit Type M19

ID: 417493

• This option allows you to connect the device to an IEEE 802.11 a/b/g/n wireless LAN.

IPDS Unit Type M26

ID: 417717

• For use in AS/400 environments.
• As a genuine Intelligent Printer Data Stream (IPDS) solution built on original IBM source code, our IPDS option provides more accurate interpretation of IPDS data. That means less errors and faster file processing than emulations. Plus, as an IBM partner your customers can be assured of fast problem resolution and timely upgrades.

OCR Unit Type M13

ID: 417430

• This function embeds invisible text on scanned images of PDF and enables users to search PDF files by arbitrary keywords. Searchable PDF files can be sent to email, folders, and external media (USB/SD Card).

PostScript3 Unit Type M26

ID: 417679

• Required for Mac and PostScript printing environments. Recommended for printing PDF and complex files.

Unicode Font Package for SAP 1 Device License

ID: 413009

• Unicode Font Package for SAP - 1 seat license.

XPS Direct Print Option Type M26

ID: 417682

• This option enables direct printing of XPS format documents.

Certified DataOverwriteSecurity Unit Type M19

ID: 417499

• This is an ISO 15408 Certified version of DOSS that overwrites Copy, Print, Scanner, and Fax latent data.

Copy Connector Type M25

ID: 417927

• Connects two similar multifunction printers together, so a job can be divided and copied on both systems simultaneously.

ESP-XG-PCS-20D

ID: 006429MIU

• Designed to provide a higher level of noise filtering and surge protection for devices that employ more sensitive and complex electronic components.
• Our Advanced Technical Support (ATS) recommends the use of power protection products to minimize potential electrical interference with products.

External Keyboard Bracket Type M25

ID: 417696

• This bracket is required for the installation of External USB Keyboard.

Notes:

• 1. Requires External USB Keyboard (No Bracket).
• 2. External Keyboard Bracket Type M25 cannot be installed with the NFC Card Reader Type M19.

External USB Keyboard (No Bracket)

ID: 100266FNG

• External keyboard for inputting data with either SDK applications or embedded applications.

Notes:

• 1. External Keyboard Bracket Type M19 is required for this option.
• 2. External USB Keyboard (No Bracket) cannot be installed with the NFC Card Reader Type M19.

NFC Card Reader Type M19

ID: 417573

• Near Field Communication card reader. Used to authenticate users for logging into the device only. Does not support Java SDK applications.

Notes:

• NFC Card Reader Type M19 cannot be installed with Smart Card Reader Built-in Unit Type M19, External Keyboard Bracket Type M19, or External USB Keyboard (No Bracket).

Optional Counter Interface Unit Type M12

ID: 417111

• 20-Pin interface used to attach external key counter or key card device.

Smart Card Reader Built-in Unit Type M19

ID: 417595

• For use with Ricoh & third party software solutions. The smart card reader and its cable will be covered inside the mainframe when this option is attached. Not all card readers may be supported.
