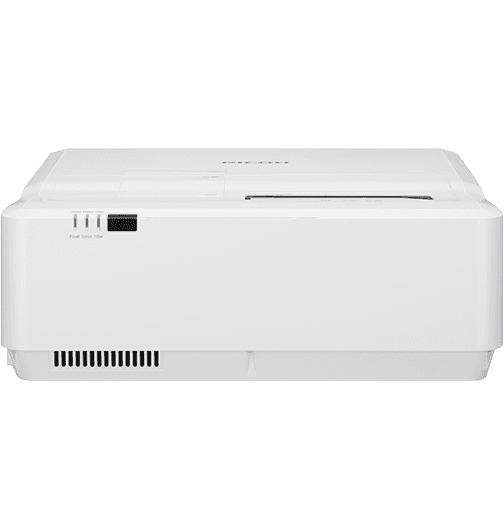

PJ WXC4660

Ultra Short Throw Projector

ID: 432336

See brilliance up-close

WXGA Resolution (1280x800 dpi)
Brightness rating of 4000 lumens
Screen size up to 130"
Project brilliant images for 20,000 hours with LED technology

Select from the options below for support and more

Download Manuals

Download Brochure

MyRicoh

If you are a current Ricoh Customer, you can use MyRicoh to get support for your products, purchase supplies, and much more.

Projection System	3 LCD Technology
Resolution	WXGA - 1280 x 800 dpi
Liquid Crystal Panel Size	0.76"
Aspect Ratio	16:10
White Light Output Brightness	4,000 lm
Color Reproduction	1.07 billion colors
Contrast Ratio	Native: Up to 500:1 High Contrast Mode: 2500000:1
Screen Size	70" – 130"
Projection Modes	Normal, Rear, Ceiling, Rear Ceiling
Projection Distance	16" – 32"
Lamp Type	Yellow (HLD), Blue (LED)
Projection Lens	Fixed
Lens Shift/Method	Manual
Projection Ratio	0.27 – 0.29
Zoom Ratio	1.05x
Zoom / Focus	Manual/Manual
Keystone Vertical/Horizontal	Vertical: +/-3%, Horizontal: +/-2%
Video Compatible Signal	NTSC, PAL, PAL-M, PAL-N, PAL-60, SECAM, NTSC4.43

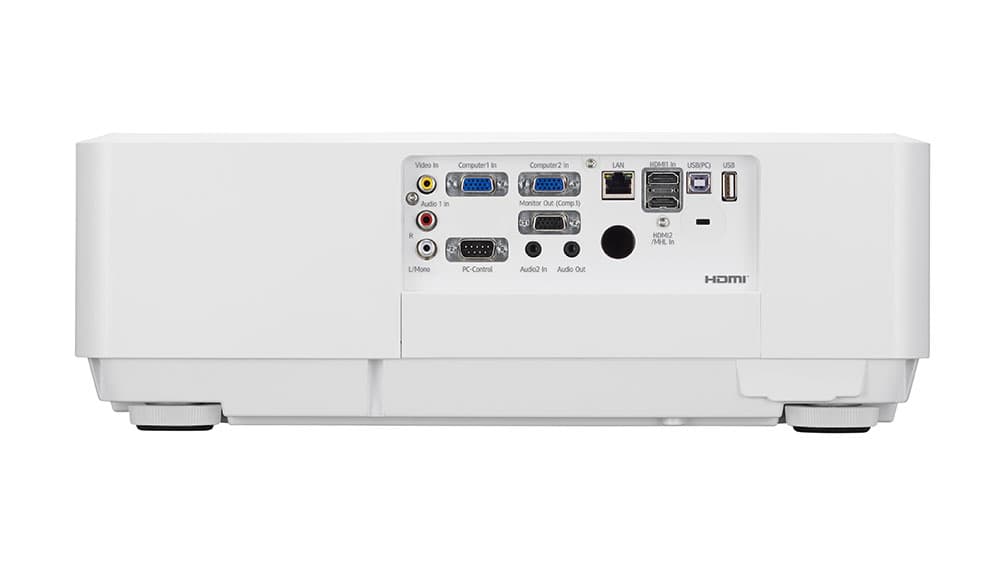

Connection Terminals	Input Interfaces: HDMI x 1 HDMI (MHL) x 1 VGA x 2 Composite x 1 USB Type A x 1 USB Type B x 1 LAN x 1
Audio Input	3.5mm Mini Jack x 1; RCA Jack x 1
Audio Output	3.5mm stereo x1 (audio out)
PC Control	LAN (RJ45) x 1 (Shared with input terminal), PC Control (RS-232C) x 1
USB	USB Type A x 1 USB Type B x 1
Wired LAN	RJ45 x1 (LAN)
Advanced Network Utility	N/A
JPEG Conversion Tool	N/A
Projector Management Utility	Windows Vista (32-bit/64bit version), Windows 7 (32-bit/64bit version), Windows 8 (32-bit/64bit version), Windows 8.1 (32-bit/64bit version), Windows 10 (32-bit/64bit version), Windows Server 2008 SP2 (32-bit/64bit version), Windows Server 2008 R2 Standard SP1 (64bit version)
Supported Utilities	PJ Link, Crestron, AMX Discovery, Extron
Features	Four Corners Keystone, 360-degree Projection, Color Adjustment, Auto Ceiling, Auto Power Off Mode, Picture Mode, Wall Color Adjustment, Kensington Lock, Pincushion Correction
Built-in Speaker	10W Stereo
Dimensions W x D x H	17.7" x 16.7" x 6.0" (449 x 425 x 153 mm)
Weight	24 lbs. (10.9 kg)
Fan Noise	Standard Mode : 37.5 dB or less Eco Mode : 33.5 dB or less
Operating Environment	Operational Temperatures: 32° to 104°F (0° to 40°C), up to 85% humidity (non-condensing) Storage Temperatures: -4° to 140°F (-20° to 60°C), up to 85% humidity (non-condensing)
Power Supply	100/240V; 50 - 60Hz
Power Consumption	Standard Mode: 427 – 435W Eco Mode: 295W
Whats In the Box	CD-ROM with User Manual, Quick Start Guide, RGB Cable, Power Cord, Remote Control and Batteries, Warranty Sheet and Registration (U.S. Only)
