Communicate clearly, front row to back row
Count on high quality, automatically
Bring images to life with 3D projection
Put lamps at the bottom of your list
A networked projector allows remote status monitoring
Need more information?
|Replacement Lamp - Part Number||512771|
Note: Lamps are consumable products and therefore are not covered by the projector’s warranty.
|3D Glasses - Part Number||Type 2 - 512511|
Note: Native support for Frame Sequential 3D format. Other sources may require a converter that is not provided.
|Projection System||Single Chip Digital Light Processing (DLP)|
|Resolution||WXGA - 1280 X 800 dpi|
|Liquid Crystal Panel Size||0.65"|
|White Light Output Brightness||4,100 lm|
|Screen Size||30" - 300"|
|Projection Distance||40" - 394" (1 - 10 meters)|
|Lamp Type||High-pressure Mercury (260W)|
|Lamp Life||Standard Mode: 3,000 hours; Eco Mode: 4,000 hours|
|Projection Ratio||1.55 - 1.7:1|
|Zoom / Focus||Manual/Manual|

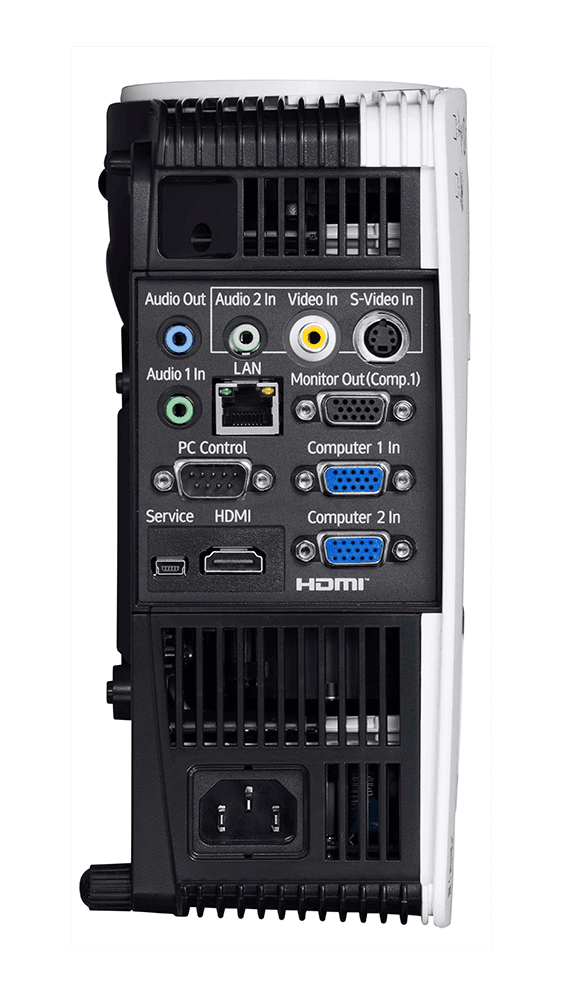

|Image Input||Mini D-sub 15 x 2|
|Image Output||Mini D-sub 15 x 1|
|Video Input||RCA Jack x 1|
|S - Video||Mini DIN 4 x 1|
|Audio Input||Mini Jack x 1|
|Audio Output||Mini Jack x 1|
|HDMI||HDMI x 1|
|PC Control||D-sub 9 x 1 (RS-232C)|
|USB||Type minB x 1 (for firmware update)|
|Wired LAN||RJ45 x 1 (for Network Management)|
|Advanced Network Utility||N/A|
|JPEG Conversion Tool||N/A|
|Projector Management Utility||Windows 7, Windows Vista (64-bit), Windows Vista, Windows 7 (64-bit), Windows XP|
|Built-in Speaker||10W Mono|
|Dimensions W x D x H||12.37" x 8.8" x 4" (314.2 x 223.5 x 101.7 mm)|
|Weight||6.6 lbs. (3.0 kg)|
|Fan Noise||Standard Mode: 37 dB or less; Eco Mode: 34 dB or less|
|Operating Environment||Temperature 5 ~ 40° C; Humidity: 20 ~ 80%|
|Power Supply||100/240V; 50 - 60Hz|
|Power Consumption||Standard Mode: 363W; Eco Mode: 308W; Standby: Less than 0.5W|
Ricoh Interactive Tool Kit Type 2
Accessories Packaged with Projector
- Cables: RGB VGA Cable and Power Cord
- CD-ROM User Manual; Projector Management Utility; Customer Registration; Warranty Sheet (US only)
- Carrying Case: Included
- Lens Cap: Included
- Remote Control: Remote Control (battery included)
