Maintenance & Parts
| Replacement Lamp - Part Number | Type 11 - 51268 Note: Lamps are consumable products and therefore are not covered by the projector’s warranty. |
|---|---|
| Projection System | Single Chip Digital Light Processing (DLP) |
| Resolution | WXGA - 1280 x 800 dpi |
| Liquid Crystal Panel Size | 0.65" |
| Aspect Ratio | 16:10 |
| White Light Output Brightness | 3,500 lm |
| Color Reproduction | 1.07 billion colors (10 bit)/16,770,000 (8 bit) |
| Contrast Ratio | Up to 13,000:1 |
| Screen Size | 48" to 80" |
| Projection Modes | Standard, Rear, Ceiling, Rear Ceiling, Tabletop, Wall |
| Projection Distance | 4.6" for 48" screen size 6.5" for 60" screen size 9.8" for 80" screen size |
| Lamp Type | High Pressure Mercury (250W) |
| Lamp Life | Standard Mode: 3,500 hours; Eco Mode: 5,000 hours |
| Projection Lens | Built-in |
| Lens Shift/Method | N/A |
| Projection Ratio | 0.11 - 0.14 |
| Zoom Ratio | 80% - 100% |
| Zoom / Focus | Digital/Manual |
| Keystone Vertical/Horizontal | Auto Vertical |
| Video Compatible Signal | NTSC, PAL, SECAM, NTSC4.43, PAL-M, PAL-N, PAL-60, BW 50/60Hz |
| Video Input | RCA 1 pin x 1 |
| Audio Input | Mini jack x 1 |
| Audio Output | Mini jack x 1 |
| HDMI | HDMI x 1 |
| PC Control | Mini D-sub 15 pin x 1 |
| USB | Type A x 1 USB 2.0 High Speed (JPEG/MPEG/MPEG2) |
| Wired LAN | RJ-45 x 1 (10BASE-T/100BASE-TX/1000BASE-T Ethernet) |
| Advanced Network Utility | Windows Vista SP2 or later 32/64 bit (Ultimate/Business/HomePremium/HomeBasic); Windows 7 SP1 32/64 bit (Ultimate/Enterprise/Professional/HomePremium); Windows 8 and 8.1 Pro/Enterprise 32/64 bit; Windows10; Mac OS X 10.8-10.10 |
| JPEG Conversion Tool | Windows Vista SP2 or later 32/64 bit (Ultimate/Business/HomePremium/HomeBasic); Windows 7 SP1 32/64 bit (Ultimate/Enterprise/Professional/Home Premium); Windows 8 and 8.1 Pro/Enterprise 32/64 bit; Windows 10 |
| Projector Management Utility | Windows Vista SP2 or later 32/62 bit (Ultimate/Business/HomePremium/HomeBasic); Windows 7 SP1 32/64 bit (Ultimate/Enterprise/Professional/HomePremium); Windows Server 2008 SP2 32/64 bit; Windows Server 2008R2 SP1 64 bit (standard edition); Windows 8 and 8.1 Pro/Enterprise 32/64 bit; Windows 10 |
| Built-in Speaker | 2W Mono |
| Dimensions W x D x H | 10.1” x 5.7” x 8.7” (257 x 144 x 221 mm) |
| Weight | 6.6 lbs. (3 kg) |
| Fan Noise | Standard/Eco Mode: 38/32 dB |
| Operating Environment | Temperature 5 ~ 35˚ C; Humidity: 30 ~ 70% |
| Power Supply | 100/240V; 50 - 60Hz |
| Power Consumption | While Operating: Less than 313W Eco Mode: Less than 208W Standby Standalone: Less than 0.3W Standby Wired LAN: Less than 1.4W Standby Wired LAN + Wireless LAN: Less than 1.8W |
Floor Stand for PJ WX4130N & 4141
ID: 100474FNG
eBeam Software for Ricoh Interactive Kit
ID: 007216MIU-PS1
PJ W4141 Tripod Mounting Plate
ID: HAA131250

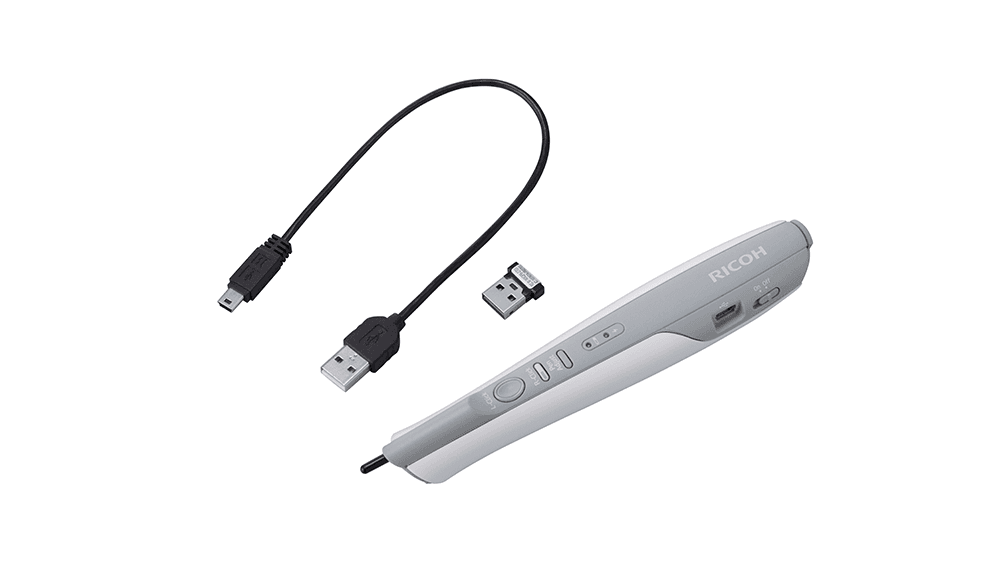

Ricoh Interactive Tool Kit Type 2
ID: 512711
