| Replacement Lamp - Part Number | 512899 Note: Lamps are consumable products and therefore are not covered by the projector’s warranty. |
|---|---|
| Projection System | Single Chip Digital Light Processing (DLP) |
| Resolution | WUXGA - 1920 x 1200 dpi |
| Liquid Crystal Panel Size | 0.67" |
| Aspect Ratio | 16:10 |
| White Light Output Brightness | 5,500 lm |
| Contrast Ratio | 9000:1 |
| Screen Size | 30" - 300" |
| Projection Modes | Standard, Rear, Ceiling, Rear Ceiling |
| Projection Distance | 3.28 to 44.29 feet (1 – 13.5 meters) |
| Lamp Type | High-pressure mercury (Standard Mode: 365W; Eco Mode: 292W |
| Lamp Life | Standard Mode: 3,000 hours; Eco Mode: 4,000 hours |
| Projection Lens | Lens: Built-in Keystone: Vertical/Horizontal Shift/Method: Vertical and Horizontal/Manual Zoom Ratio: 1:8 Zoom/Focus: Manual/Manual |
| Projection Ratio | 1.2 - 2.1 |
| Zoom Ratio | 1.8 |
| Zoom / Focus | Manual/Manual |
| Video Compatible Signal | NTSC, PAL, SECAM, NTSC4.43, PAL-M, PAL-N, PAL-60, 60 Hz (mono), 50 Hz (mono) |
| Analog RGB Compatible Scanning Frequency | Horizontal: 30 – 100 Hz, Vertical: 50 – 85 Hz (3D mode:120 Hz) |

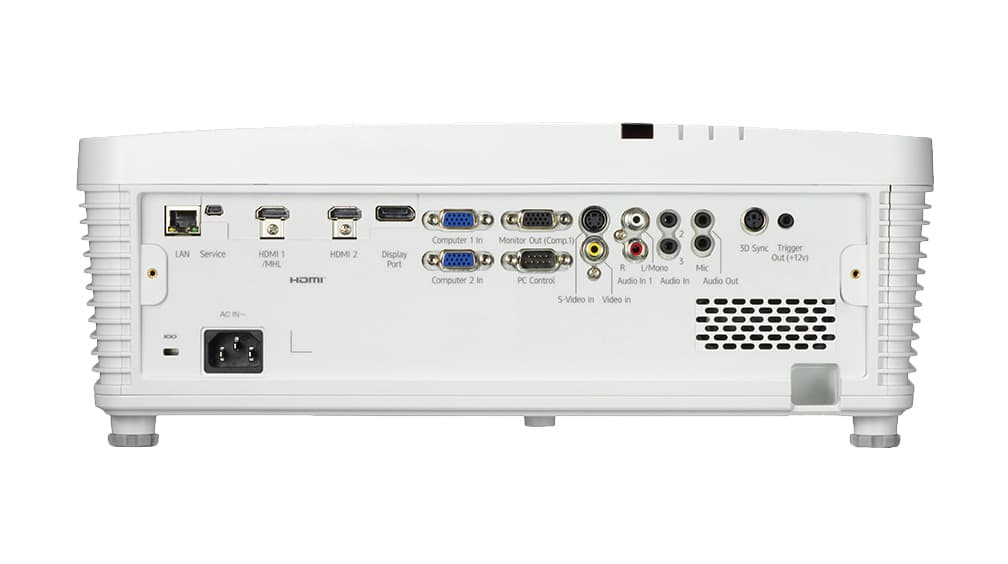

| Image Input | HDMI type A x 2, D-SUB 15-pin x 2, RCA x 1, S-VIDEO mini DIN 4-pin x 1, Display port x 1 |
| Image Output | D-SUB 15-pin x 1 |
| Audio Input | 3.5mm Stereo mini Jack x 2, RCA (L/Mono) x 1, RCA (R) x 1 |
| Audio Output | 3.5mm Stereo mini Jack x 1 |
| PC Control | D-sub 9 x 1 (RS-232C) |
| USB | Type minB x1 (for firmware update) |
| Wired LAN | RJ45 x 1 (for Network Management) |
| Wireless LAN | N/A |
| Advanced Network Utility | N/A |
| JPEG Conversion Tool | N/A |
| Projector Management Utility | Windows® Vista Ultimate/Business/Home Premium/Home Basic (32bit/64bit), Windows 7 Home Premium/Professional/Ultimate/Enterprise (32bit/64bit), Windows 8 Pro/Enterprise (32bit/64bit), Windows 8.1 Pro/Enterprise (32bit/64bit), Windows Server 2008 Standard SP2 and later versions (32bit/64bit), Windows Server 2008 R2 Standard SP1 and later versions (64bit) |
| Features | AV Mute, Freeze, Re-size (Magnify), Manual Keystone (vertical/horizontal), Auto Keystone (vertical), Password Protection, Wall Color Mode, Kensington Lock, User Logo, Eco Mode, 3D Projection Ready, Firmware Update (USB) |
| Built-in Speaker | 10W x 2 |
| Dimensions W x D x H | 16.7" x 14" x 5.9" (424 x 356 x 150 mm) |
| Weight | 13.97 lbs. (6.35 kg) |
| Fan Noise | Standard/Eco Mode: 35/32 dB |
| Operating Environment | Temperature 5 ~ 40° C; Humidity: 20 ~ 80% |
| Power Consumption | Standard Mode: 450 W (495 W max.)/Eco Mode: 360 W (395 W max.) |
| Whats In the Box | 365 W high-pressure mercury lamp, RGB VGA and power cables, remote with batteries, filter, lens cap, CD-ROM with Operating Instructions and Projector Management Utility, Quick Start Guide, Customer Registration and Warranty Sheet (US only) |
