|Replacement Lamp - Part Number||512984|
Note: Lamps are consumable products and therefore are not covered by the projector’s warranty.
|Projection System||Single Chip Digital Light Processing (DLP)|
|Resolution||SVGA 800 x 600 dpi|
|Liquid Crystal Panel Size||0.55"|
|White Light Output Brightness||3,000 lm|
|Screen Size||30" - 300"|
|Projection Modes||Standard, Rear, Ceiling, Rear Ceiling|
|Projection Distance||47.24" - 515.75" (1.2 – 13.1 meters)|
|Lamp Type||High-Pressure Mercury|
|Lamp Life||Standard Mode: 4,500 hours|
Eco Mode: 6,000 hours
|Projection Lens||Lens: Built-in|
Keystone: Manual: Vertical Only
Zoom Ratio: 1:1
|Projection Ratio||1.95 - 2.15|
|Video Compatible Signal||NTSC, PAL, SECAM, PAL-M, PAL-60, NTSC 4.43, 60Hz, 50Hz|

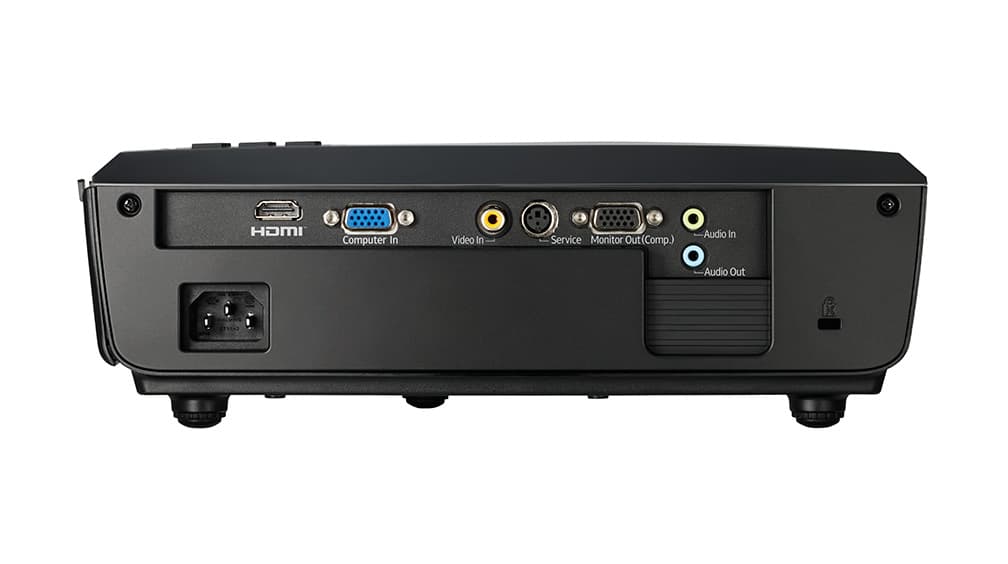

|Connection Terminals||Input Signals: NTSC, PAL, SECAM, PAL-M, PAL-60, NTSC 4.43, 60Hz, 50Hz|
Image Input: Mini D-SUB 15 pin x 1, HDMI x 1
Image Output: Mini D-SUB 15 pin x 1 S-Video N/A
Video Input: RCA x 1
Audio Input 1: 3.5 mm diameter mini jack
Audio Input 2: N/A
Audio Output: 3.5 mm diameter mini jack HDMI: HDMI (Type A) x 1
Microphone Input: N/A
Wired LAN: N/A
Wireless LAN: N/A
PC Control: N/A
Other Ports: RS-232C 3 pin x 1 (Service Only)
|Advanced Network Utility||N/A|
|JPEG Conversion Tool||N/A|
|Projector Management Utility||N/A|
|Features||AV Mute (Blank), Freeze, Re-size (Magnify), Keystone (Manual Only), Password Protection, Wall Color Mode, Kensington Lock, Eco Mode, 3D Projection Ready|
|Built-in Speaker||2W Mono|
|Dimensions W x D x H||11.26" x 3.94" x 8.19" (286 x 100 x 208 mm)|
|Weight||5.2 lbs. (2.4 kg)|
|Fan Noise||Standard Mode: 36 dB or less|
Eco Mode: 31 dB or less
|Operating Environment||Temperature -4°F ~ 140°F; Humidity: 20 ~ 80%|
|Power Supply||100/240V; 50 - 60Hz|
|Power Consumption||Standard Mode: 248W (Typ.) 266W (Max); Eco Mode: 210W; Standby Mode: 0.5W|
|Whats In the Box||CD-ROM with user manual, Quick start guide, RGB cable, Power cord, Warranty sheet and registration (US only), Remote control and batteries, Lens cover|
ESP AC1 Power Filter
- The affordable ESP AC1 power filter provides multi-stage overload protection for output devices. Our Advanced Technical Support (ATS) recommends the use of overload protection products to minimize potential electrical interference with products.
- The ESP AC1 power filter can not be installed with the ESP XG-PCS-15D.
