| Configuration | Desktop |
|---|---|
| Printing Process | B&W laser electro-photographic printing |
| Toner Type | Dry, mono component |
| Control Panel | 10.1" Smart Operation Panel |
| Color/Black & White | Black & White |
| Output Speed Copy/Print | 52 ppm |
| First Page Out Time | 6 seconds or less |
| Warm-Up Time | 24 seconds |
| Recovery Time From Sleep Mode | Less than 10 seconds |
| Resolution | 600 x 600 dpi |
| System Memory | 2 GB RAM + 320 GB Hard Disk Drive |
| Maximum Copy Quantity | Up to 999 |
| Document Feeder Type | Automatic Reversing Document Feeder |
| Document Feeder Original Size | 8.5" x 14" (216 x 356 mm) |
| Document Feeder Paper Weight | 13-20 lb. Bond/44 lb. Index (50-80 g/m2) |
| Document Feeder Capacity | 75 |
| Preset Reduction and Enlargement Ratios | 65%, 78%, 93%, 100%, 129%, 155% |
| Zoom Range | 25% to 400% in 1% increments |

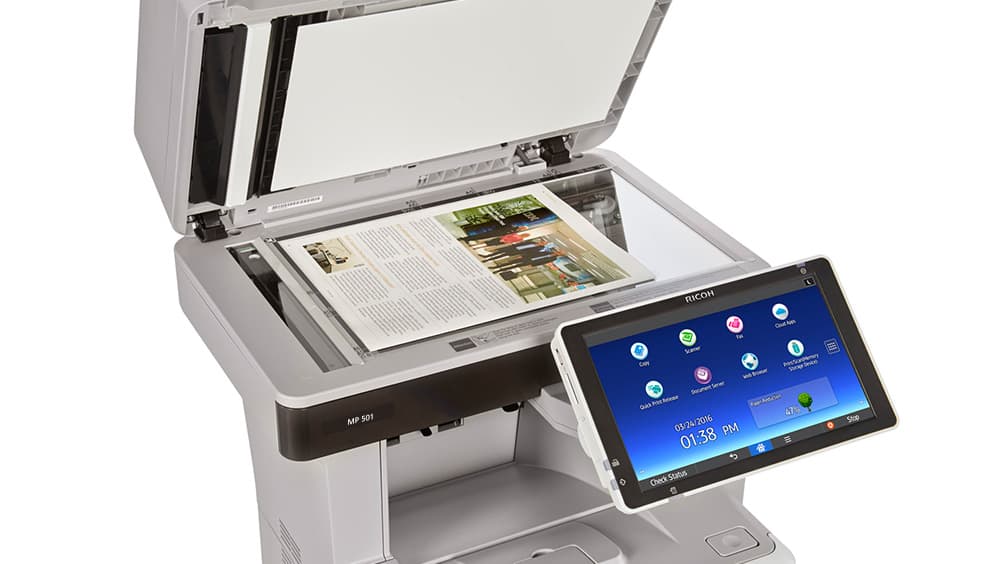

| Exposure Glass Size | Up to 8.5" x 14" |
| Original Type | Sheets / Books |
| Original Size | 4.13" x 5.83" - 8.5" x 14" |
| Maximum Original Size | 8.5" x 14" (216 x 356 mm) |
| Supported Paper Sizes | Paper Tray: 4.13" x 5.83" - 8.5" x 14" Bypass Tray: 2.76" x 5.83" - 8.5" x 14" Optional Trays: 4.13" x 5.83" - 8.5" x 14" |
| Supported Paper Weights | Standard Tray and when Duplexing: 17-32 lb. Bond/ 66 lb. Index (64-120 g/m2) Bypass Tray: 16-59 lb. Bond/ 122 lb. Index (60-220 g/m2) |
| Supported Paper Types | Plain, Thin, Middle, Middle Thick, Thick, Recycled, Colored, Special, Letterhead, Preprinted, Bond, OHP (Transparency)*, Label*, Envelopes** |
| Standard Paper Capacity | 1 x 500-Sheet Tray + 100-Sheet Bypass Tray |
| Maximum Paper Capacity | 2,600 sheets |
| Standard Output Capacity | 500 sheets (LT) |
| Maximum Monthly Volume | 16600 |
| Duty Cycle | 250,000 prints |
| Power Source | 120V, 60Hz, 15A |
| Power Consumption | Operating: 740W Sleep Mode: 1.1W |
| Dimensions W x D x H | 18.7" x 19.84" x 25.39" (475 x 504 x 645 mm) (mainframe) |
| Weight | 61.6 lbs. (28 kg) |
| Standard Features | Auto Paper Selection, Auto Start, Auto Tray Switch, Combine Copy, Directional Magnification, Duplex, Electronic Sort, ID Card Copy, Image Density Adjustment, Image Quality Mode, Interrupt Copy, Memory Copy, Series Copy, User Program, Import/Export of Preference Settings, Centralized Address Book Management |
| Footnotes | *From Bypass Tray only. **From Bypass Tray and Optional Paper Trays |
Fax Connection Unit Type M24
ID: 407854
- Enables users to send and receive faxes from other devices on the same network (up to 6) via the Primary MFP which has the Fax Connection Unit installed.

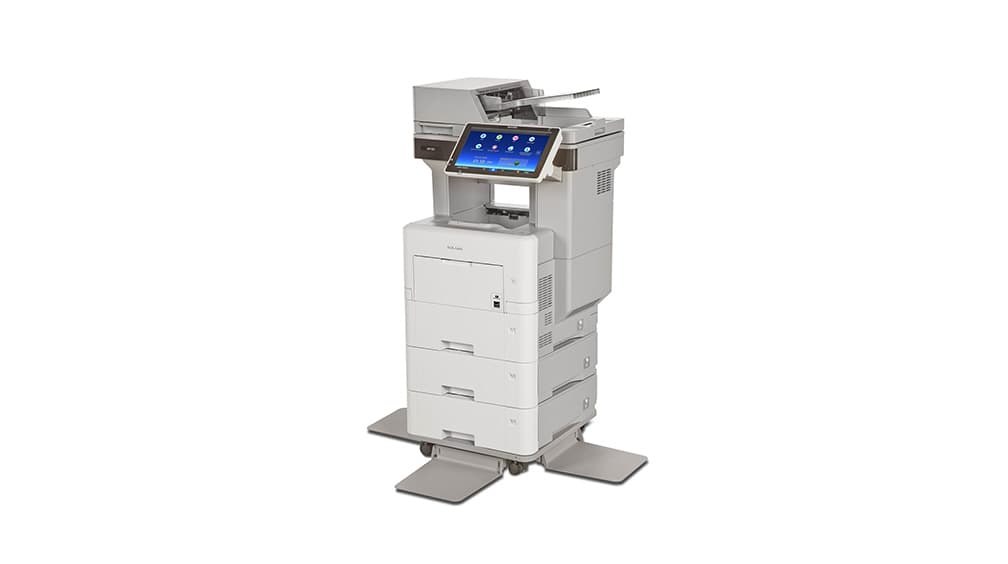

Caster Table Type M24
ID: 407851
- Provides a platform with wheels for a floor standing configuration.
- Must be added when the device is configured with three or four optional paper feed units.
- Weight: 24.2 lbs. (11 kg)
- W x D x H (inches): 30.6 x 31.8 x 2.5
- W x D x H (mm): 777 x 808 x 64
Notes:
- 1. Caster Table Type M24 cannot be installed with the base unit, one or two optional paper feed units, Tall Cabinet Type I, or Medium Cabinet Type J.
- 2. Caster Table Type M24 can only be installed when the system is configured with three or four optional paper feed units. If three or four paper feed units are not added then this option cannot be added to your configuration.
Medium Cabinet Type J
ID: 52641
- Raises the base unit to a comfortable height for a floor-standing configuration when the system is configured with either one or two optional Paper Feed Units.
- Weight: 13.7 lbs. (6.2 kg)
- W x D x H (inches): 15 x 16.2 x 10
- W x D x H (mm): 381 x 411 x 254
Notes:
- 1. Medium Cabinet Type J cannot be installed with the base unit, three or four optional paper feed units, Tall Cabinet Type I, or Caster Table Type M24.
- 2. Medium Cabinet Type J can only be installed when the system is configured with one or two optional paper feed units. If one or two optional paper feed units are not added then this option cannot be added to your configuration.
Paper Feed Unit PB1100
ID: 407850
- Provides an additional 500 sheets per paper tray.
- Paper sizes up to 8.5" x 14".
- Paper weights up to 32 lb. Bond/120 g/m<sup>2</sup>.
- Weight: 8.8 lbs. (4 kg)
- W x D x H (inches): 15 x 16.1 x 4.8
- W x D x H (mm): 381 x 409 x 122
Notes:
- Caster Table Type M24 is required when the three or four optional Paper Feed Units are installed.
Paper Feed Unit PB1100LE
ID: 407915
- A Teflon enhanced paper tray.
- Provides an additional 500 sheets per paper tray.
- Paper sizes up to 8.5" x 14".
- Paper weights up to 32 lb. Bond/120 g/m<sup>2</sup>.
- Weight: 8.8 lbs. (4 kg)
- W x D x H (inches): 15 x 16.1 x 4.8
- W x D x H (mm): 381 x 409 x 122
Notes:
- Caster Table Type M24 is required when the three or four optional Paper Feed Units are installed.
Paper Feed Unit PB1100TE
ID: 407914
- A locking paper tray.
- Provides an additional 500 sheets per paper tray.
- Paper sizes up to 8.5" x 11".
- Paper weights up to 32 lb. Bond/120 g/m<sup>2</sup>.
- Weight: 8.8 lbs. (4 kg)
- W x D x H (inches): 15 x 16.1 x 4.8
- W x D x H (mm): 381 x 409 x 122
Notes:
- 1. When Paper Feed Unit PB1100TE is added, the advanced security firmware on the MP 501SPF and MP 601SPF is not available.
- 2. Caster Table Type M24 is required when the three or four optional Paper Feed Units are installed.
Tall Cabinet Type I
ID: 52651
- Raises the base unit to a comfortable height for a floor-standing configuration.
- Weight: 22.5 lbs. (12.5 kg)
- W x D x H (inches): 15 x 16.2 x 20
- W x D x H (mm): 381 x 411 x 508
Notes:
- Tall Cabinet Type I cannot be installed with Paper Feed Unit PB1100, Paper Feed Unit PB1100TE, Paper Feed Unit PB1100LE, Medium Cabinet Type J, or Caster Table Type M24.
IEEE802.11 Interface Unit Type M24
ID: 407863
- Allows MFP device to connect to the network over WiFi. Useful for temporary sites and locations where cabling is impractical.
IPDS Unit Type M36
ID: 408275
-
Extended USB Board Type M19
ID: 417566
- Required for printing from USB Type B port.
Notes:
- Extended USB Board Type M19 cannot be installed with IEEE 1284 Interface Board Type M19, IEEE 802.11a/g/n Interface Unit Type M19, or File Format Converter Type M19.
File Format Converter Type M19
ID: 417508
- Required to convert formats and drag to desktop documents stored via Copy or Print mode.
Notes:
- File Format Converter Type M19 cannot be installed with the following options: IEEE 1284 Interface Board Type M19, IEEE 802.11a/g/n Interface Unit Type M19, or Extended USB Board Type M19.
- *Exception - The File Format Converter Type M19 can be installed with the following options on the MP C4504ex or MP C6004ex models: IEEE 1284 Interface Board Type M19, IEEE 802.11a/g/n Interface Unit Type M19, or Extended USB Board Type M19.
IEEE 1284 Interface Board Type M19
ID: 417596
- For environments that require parallel connectivity.
- Allows device connection with legacy computer equipment.
Notes:
- IEEE 1284 Interface Board Type M19 cannot be installed with IEEE 802.11a/g/n Interface Unit Type M19, File Format Converter Type M19, or Extended USB Board Type M19.
OCR Unit Type M13
ID: 417430
- This function embeds invisible text on scanned images of PDF and enables users to search PDF files by arbitrary keywords. Searchable PDF files can be sent to email, folders, and external media (USB/SD Card).
XPS Direct Print Option Type M24
ID: 408048
- This option enables direct printing of XPS format documents.
Certified DataOverwriteSecurity Unit Type M19
ID: 417499
- This is an ISO 15408 Certified version of DOSS that overwrites Copy, Print, Scanner, and Fax latent data.
ESP AC1 Power Filter
ID: ESPAC1
- The affordable ESP AC1 power filter provides multi-stage overload protection for output devices. Our Advanced Technical Support (ATS) recommends the use of overload protection products to minimize potential electrical interference with products.
Notes:
- The ESP AC1 power filter can not be installed with the ESP XG-PCS-15D.
ESP S1 Power Filter
ID: ESPS1
- The affordable ESP S1 power filter provides multi-stage power protection for output devices. Our Advanced Technical Support (ATS) recommends the use of Power Protection products to minimize potential electrical interference with products.
Notes:
- ESP S1 Power Filter cannot be installed with the ESP XG-PCS-15D Power Filter.
ESP XG-PCS-15D Power Filter
ID: 006428MIU
- The ESP XG-PCS-15D power filter provides multi-stage power protection as well as line conditioning. Our Advanced Technical Support (ATS) recommends the use of Power Protection products to minimize potential electrical interference with products.
Notes:
- ESP XG-PCS-15D Power Filter cannot be installed with the ESP S1 Power Filter.
NFC Card Reader Type M24
ID: 407853
- Enables users to log into and authenticate to the MFP with a programmed access card.
Optional Counter Interface Unit Type M12
ID: 417111
- 20-Pin interface used to attach external key counter or key card device.
