| Configuration | Desktop |
|---|---|
| Color / Black & White | Color |
| Technology | LED |
| Toner Type | Dry, single component |

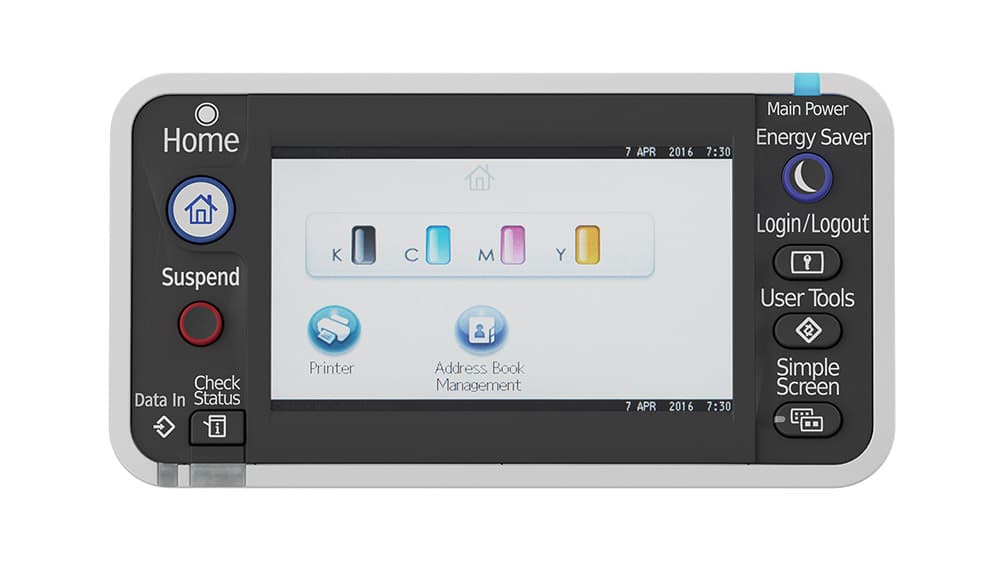

| Operation Panel | 4.3" color touchscreen |
| Black & White Speed | 30 ppm |
| Color Print Speed | 30 ppm |
| Maximum Monthly Volume | 7,500 prints |
| Maximum Duty Cycle | 75,000 prints |
| First Print Speed | Black: 6 seconds Color: 7.8 seconds |
| Warm-Up Time | 18 seconds |
| Recovery from Sleep Mode | 8.5 seconds |
| Print Resolution | Up to 1200 x 1200 dpi |
| Standard Paper Capacity | 1 x 500-Sheet Tray + 100-Sheet Bypass Tray |
| Maximum Paper Capacity | 2,100 sheets |
| Output Capacity | 200 sheets |
| Supported Paper Sizes | Paper Tray: 3.25" x 5.83" - 8.5" x 14.01" Bypass Tray: 2.52" x 5" - 8.5" x 49.6" Optional Trays: 5.5" x 8.27" - 8.5" x 14.01" |
| Supported Paper Weights | All Trays: 15-59 lb. bond (56-220 g/m2) Duplex: 15-43 lb. bond (56-163 g/m2) |
| Supported Paper Types | Plain paper, middle-thick paper, thick paper 1 to 2, thin paper, recycled paper, special paper 1 to 5, color paper, letterhead, preprinted, bond, cardstock, label paper, glossy paper, coated paper, envelopes |
| Duplexing | Automatic (standard) |
| Power Requirements | 120 - 127V, 60 Hz |
| Power Consumption | Operating: Color 488 W, B&W: 463 W Sleep Mode: 0.54 W |
| Typical Energy Consumption (TEC) | 1.23 kWh/week |
| ENERGY STAR® | Certified |
| EPEAT status | Silver |
| Dimensions W x D x H | 15.7" x 20.3" x 15.2" (400 x 515 x 387 mm) *Except projection size of operation panel |
| Weight | 72.75 lbs. (33 kg) |
Paper Feed Unit TK1230 (1 x 250 Sheets)
ID: 407399
- Paper Sizes: 5.5" x 8.27" - 8.5" x 14.01"
- Paper Weights: 15-59 lb. bond (56-220 g/m<sup>2</sup>)
- Dimensions: 15.75" x 20.28" x 3.75" (400 x 515 x 95 mm)
- Weight: 12.3 lbs (5.6 kg)
Paper Feed Unit TK1240 (1 x 500 Sheets)
ID: 407400
- Paper Sizes: 5.5" x 8.27" - 8.5" x 14.01"
- Paper Weights: 15-59 lb. bond (56-220 g/m<sup>2</sup>)
- Dimensions: 15.75" x 20.28" x 4.8" (400 x 515 x 123 mm)
- Weight: 13.4 lbs (6.1 kg)
Low Cabinet Type O
ID: 52003
- Raises the base unit to a comfortable height for a floor-standing configuration when two optional Paper Feed Units are installed.
- Provides storage for paper and extra supplies.
- Weight: 15.4 lbs (7 kg)
- W x D x H (inches): 15.75" x 20.28" x 10.04"
- W x D x H (mm): 400 x 515 x 255 mm
Tall Cabinet Type N
ID: 52004
- Raises the base unit to a comfortable height for a floor-standing configuration when no optional paper feed units are installed or one optional paper feed unit is installed.
- Provides storage for paper and extra supplies.
- Weight: 24.25 lbs (11 kg)
- W x D x H (inches): 15.75" x 20.28" x 18.31"
- W x D x H (mm): 400 x 515 x 465 mm
HDD Option Type P12
ID: MX408085RA
- The 320 GB Hard Disk Drive (HDD) transforms the printer into an information portal. The HDD is required for Locked/Hold/Stored Print. Data Overwrite and HDD Encryption are available when the HDD is installed.
IEEE802.11 Interface Unit Type M24
ID: 407863
- Allows MFP device to connect to the network over WiFi. Useful for temporary sites and locations where cabling is impractical.
PostScript3 Unit Type P12
ID: 408083
- The SP C352DN comes with standard PostScript3 Emulation and PDF Direct Print Emulation. This option is available for customers who require True Adobe® workflows like Photoshop®, Illustrator® and PDF/X as well as additional font support. When enabled on the printer, the standard PostScript3 Emulation will be disabled.
XPS Direct Print Option Type P12
ID: 408082
- Allows for direct printing of XPS-type file formats.
IEEE 1284 Interface Board Type M19
ID: 417596
- For environments that require parallel connectivity.
- Allows device connection with legacy computer equipment.
Notes:
- IEEE 1284 Interface Board Type M19 cannot be installed with IEEE 802.11a/g/n Interface Unit Type M19, File Format Converter Type M19, or Extended USB Board Type M19.
USB Device Server Option Type M19A
ID: 418105
- An interface board for adding an extra Ethernet port. If you install the USB Device Server Option, you can connect two Ethernet cables simultaneously: one to the machine's Gigabit Ethernet port and one to the Gigabit Ethernet port of USB Device Server Option. An IP address can be assigned to each connection and you can use one machine to print from different network segments.
Notes:
- USB Device Server Option Type M19A cannot be installed with IEEE 1284 Interface Board Type M19, IEEE 802.11a/g/n Interface Unit Type M19, File Format Converter Type M19, or Extended USB Board Type M19.
VM Card Type P8
ID: 407864
- The VM Card enables the installation of embedded software applications.
Notes:
- 1. When this option is configured with the SP C840DN, HDD Option Type P11 is required to add this option.
- 2. VM Card Type P8 cannot be installed with PostScript3 Unit Type P11, Camera Direct Print Card Type M19, or XPS Direct Print Option Type P11.
