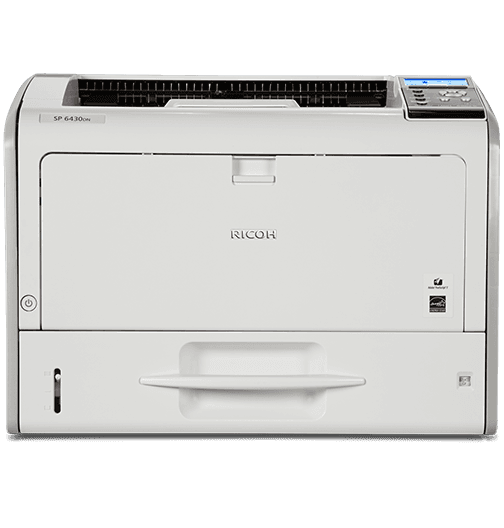

RICOH SP 6430DN Black and White Printer

SP 6430DN

Black and White Printer

ID: 407482

Keep specialty printing in-house and improve collaboration

  •   Prints up to 38 ppm
  •   1200x1200 dpi max print resolution
  •   Paper capacity up to 2,100 pages
  •   Supports monochrome printing up to 11"x17"
Call for a Quote: 866-230-2723
8am-5pm CT M-F

Keep projects on track

Help your project teams work efficiently without sacrificing quality. When you outsource print projects, you can't share information as quickly. Print both everyday office documents and special projects in-house with the compact, versatile SP 6430DN Black and White Printer. Show off all the fine print in CAD drawings, manufacturing designs, spreadsheets and floor plans with 1200x1200 dpi resolution.

Place this printer nearly anywhere

Printing shouldn't take up too much time or space, and you'll give the SP 6430DN high marks on both counts. The printer fits on desktops, counters or cabinets — it's smaller than competitive laser printers thanks to LED print head technology. And, at 38 pages per minute, you can zip through jobs in no time.

Ready, set, go - in under seven seconds

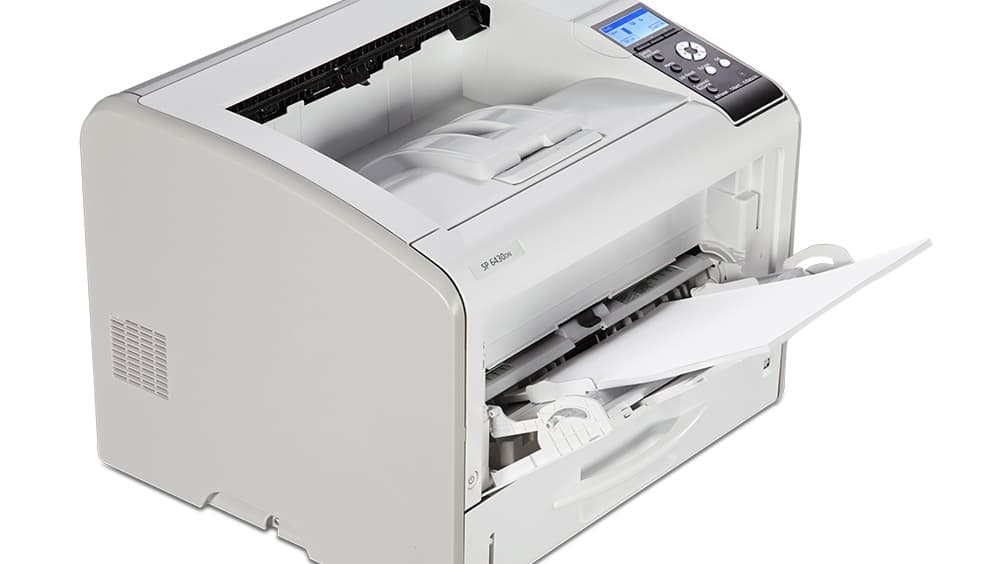

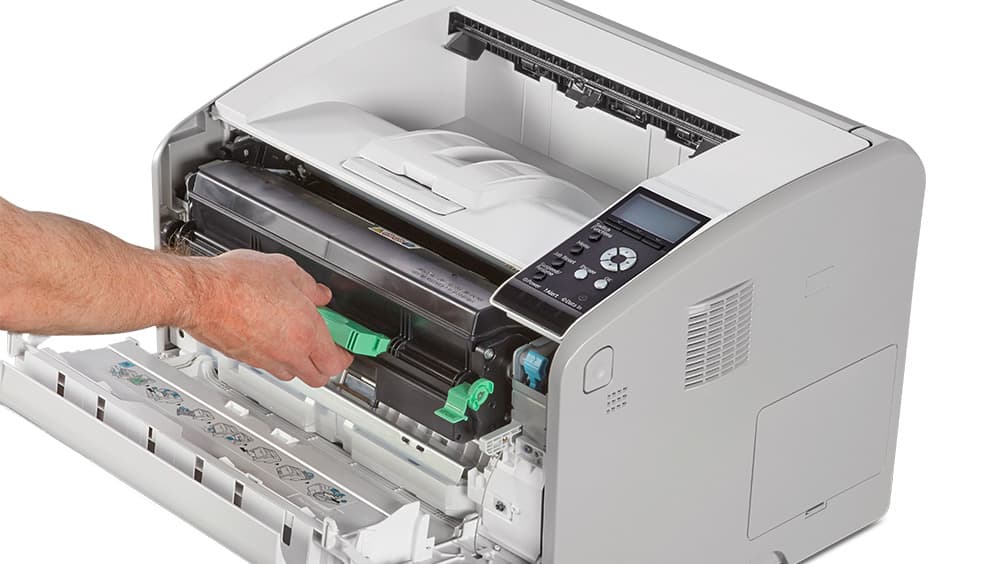

The longer you have to wait for a print job, the less time you have to work on the next project. With the SP 6430DN you can print your first document 6.5 seconds after warm-up. Adding toner or paper or clearing a misfeed is easy and fast, too, thanks to front-access design.

Safeguard information at the printer

When you have extra layers of protection, you can feel better about sharing sensitive information like personnel records or financial information. The USB Device Server option allows you to use a different IP address to connect the SP 6430DN to a second locked network to help shield information from the internet or other security threats. With the optional hard disk drive, you can also hold jobs at the printer until you enter a passcode to release them.

Chalk up cost savings

Save money and be kind to the environment. You can conserve energy with the printer's low typical electricity consumption (TEC) rating (as determined by ENERGY STAR® program testing requirements), EPEAT® Gold rating and ENERGY STAR design. You can also go further by programming the eco-night sensor to start up and shut down the printer based on ambient light, and reducing your paper costs with automatic duplex printing. Plus, Ricoh's consumable and product recycling programs make it easy to recycle.

Need More Information?

Learn more about the RICOH SP 6430DN Black and White Printer and how it may fit your business.

Engine Specifications



Color / Black & White

Black & White



Toner Type

Dry, single component

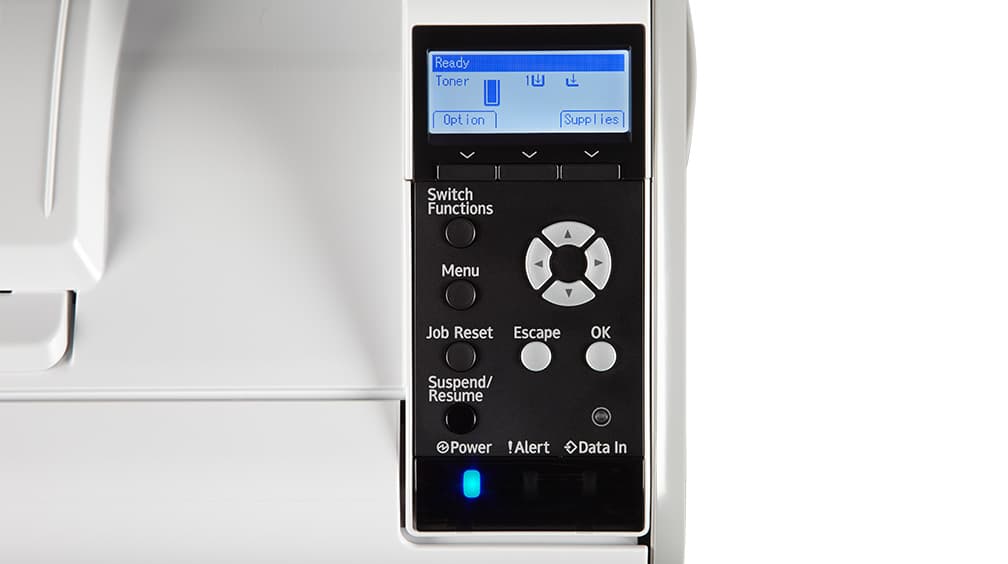

Operation Panel

4-line LCD

Black & White Speed

38 ppm

Maximum Monthly Volume

20,000 prints

Maximum Duty Cycle

150,000 prints

First Print Speed

6.5 seconds or less

Warm-Up Time

17 seconds or less

Recovery from Sleep Mode

17 seconds or less

Print Resolution

300 x 300 dpi/600 x 600 dpi/ 1200 x 1200 dpi

Standard Paper Capacity

600 sheets (500-Sheet Tray + 100-Sheet Bypass Tray)

Maximum Paper Capacity

2,100 sheets

Supported Paper Sizes

Standard Tray: 3.5" x 5.8" - 11.7" x 17" (90 x 148 mm - 297 x 432 mm)
Optional PFUs: 3.9" x 5.8" - 11.7" x 17" (100 x 148 mm - 297 x 432 mm)
Bypass Tray: 2.3" x 5" - 11.7" x 49.6" (60 x 127 mm - 297 x 1,260 mm)

Supported Paper Weights

All Trays: 15 - 59 lb. Bond (56 - 220 g/m2)
Duplex: 15 - 43 lb. Bond (56 - 162 g/m2)

Supported Paper Types

Recycled Paper, Color Paper, Letterhead, Preprinted Paper, Plain Paper, Special Paper, Thick Paper, Thin Paper, Label Paper, Envelopes, OHP (Transparency)


Automatic (standard)

Power Requirements

120V, 60Hz

Power Consumption

Operating: 554W
Sleep Mode: 0.45W or less

1.8 kWh/week



Dimensions W x D x H

18.1" x 15.4" x 13.7" (459 x 392 x 347.5 mm)


46.3 lb. (21 kg)

Controller Specifications

Processor Speed

533 MHz

Memory Standard/Maximum

512 MB/1 GB RAM

Hard Disk Drive

250 GB (Optional)

Standard Interfaces

10/100/1000Base-TX Ethernet (RJ45) Gigabit Network Interface
USB 2.0 High Speed Type B (for direct computer connection)
Dual USB 2.0 Host Type A (for external device connection)
Dual SD Card Slots (for expanded functions/device customization)

PCL5: 45 fonts + 13 International fonts
PCL6: 45 fonts
PostScript 3: 136 fonts

Font Support

PCL5: 45 fonts + 13 International fonts
PCL6: 45 fonts
PostScript 3: 136 fonts

Network Protocols


Supported Operating Systems

Windows XP, Vista, 7, 8, 8.1 Windows Server 2003/R2, Server 2008/R2, Server 2012/R2 Mac OS X 10.6 or later Citrix Presentation Server 4.0, 4.5 Citrix XenApp 5.0, 6.0, 6.5 SAP R/3 (Device Type/Barcode & OCR Packages) Various UNIX/Linux OS

Device Management Software/Utilities

Web Image Monitor, @Remote, Device Manager NX Series, Printer Driver Packager NX

Mobile Printing Support

Ricoh Smart Device Connector App

Printer Features

Reduce/Enlarge, Collate, Layout (N-up), Toner Saving, Watermark, Rotate Print*, Support for Universal Driver, Sample Print**, Hold Print**, Store and Print**, Banner Page Print, Poster Print, Wi-Fi Protected Support (WPS), External USB Keyboard Support, Import/Export of Preference Settings
*Optional 1GB Memory required.
**Optional Hard Disk Drive required.

Security Features

HDD DataOverwriteSecurity System (DOSS), Authentication for Windows, LDAP, Kerberos, Basic, User Code and 802.1x Wired; Encryption for Address Book, Authentication Password, SSL Communication, IPsec Communication, Hard Disk Drive; Network Protocol On/Off, IP Address Filtering, Unauthorized Copy Prevention, Quota Setting/Account Limit, SMTP over SSL, Compulsory Security Stamp, Locked/Stored Print


Device Software Manager

Easily and automatically install the latest drivers for your Ricoh product.


Download Drivers

Download and install the print driver and associated software for your device. This link can also be used to update your existing print driver.



Maintain your devices — automatically gain insight, improve uptime and reduce your fleet costs with RICOH @Remote.


Knowledge Base

Access Ricoh’s comprehensive electronic database for driver and utility information, device documentation, troubleshooting assistance and more.



If you are a current Ricoh Customer, you can use MyRicoh to get support for your products, purchase supplies, and much more.



Learn about common tasks, topics and features as explained in more than 150 short video tutorials for our most popular devices.


Warranty Registration

Register your Ricoh product in order to receive service and support.

Questions and Answers

Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 7 questions Browse 7 questions and 7 answers
I read in a forum that this printer will actually print on 12x18 through the bypass tray. Can anyone confirm this?
A shopper on Jun 12, 2017

Via the bypass tray this printer can print up to 11.7" x 49.6"
What are the dimensions of the printer footprint with the paper tray fully extended?
Ben T on Jul 14, 2017

The dimensions of the printer are 18.1" x 15.4" x 13.7 and the optional paper tray are 18.7" x 15.4" x 4.9". If you were to fully extend either paper tray it would not extend past 30 inches.

For more information on this product or any other in our line up - please feel free to press the click to chat button or the Request a Quote button located on the product pages. or you can contact your Ricoh representative or local Ricoh dealer (http://dealer.ricoh-usa.com) to find out more. Please contact your Ricoh representative or local Ricoh dealer (https://www.ricoh-usa.com/en/officelocator) to find out more.

Thank you
Apple Airprint supported by Ricoh SP 6430DN B/W laser printer?
A shopper on Jun 1, 2016
BEST ANSWER: Yes Apple Airport is supported on this machine
For support questions, please contact the support team via chat on Myricoh.com https://www.myricoh.com/OA_HTML/ibeCAcdLogin.jsp
can envelopes be put in the tray to print more than 1 at a time?
Chip M on May 13, 2018

Yes, you can load more than 1 envelope, you just want to be sure not to exceed the fill line on the paper tray. I have included a link to instructions on printing on envelopes to assist you. http://support.ricoh.com/bb_v1oi/pub_e/oi_view/0001056/0001056761/view/manual/int/0082.htm?&seek=number%20of%20envelopes

If you have any other questions, please contact the support team via chat on myricoh.com https://www.myricoh.com or by calling 1-888-456-6457

Thank you
Bypass tray is broken, i need a new one for me to print 8x11 paper?
A shopper on Jan 18, 2018

You would need to work with the service team on ordering a new one.
Please contact the support team via chat on myricoh.com https://www.myricoh.com or by calling 1-888-456-6457

Thank you
how to setup to hook to network?
A shopper on Nov 30, 2017

This link will guide in setting up a printer on your network. http://support.ricoh.com/bb_v1oi/pub_e/oi_view/0001056/0001056761/view/manual/int/0215.htm

If you have any other questions, please contact the support team via chat on myricoh.com https://www.myricoh.com or by calling 1-888-456-6457

Thank you
How do I reset to factory defaults?
A shopper on Aug 9, 2017

You would do that through the web image monitor. The attached link will guide you through accessing the web image monitor, if you are an admin on the machine. http://support.ricoh.com/bb_v1oi/pub_e/oi_view/0001056/0001056761/view/manual/int/0217.htm
From there you will follow the prompts.

If you have any other questions, please contact the support team via chat on myricoh.com https://www.myricoh.com or by calling 1-888-456-6457

Thank you
