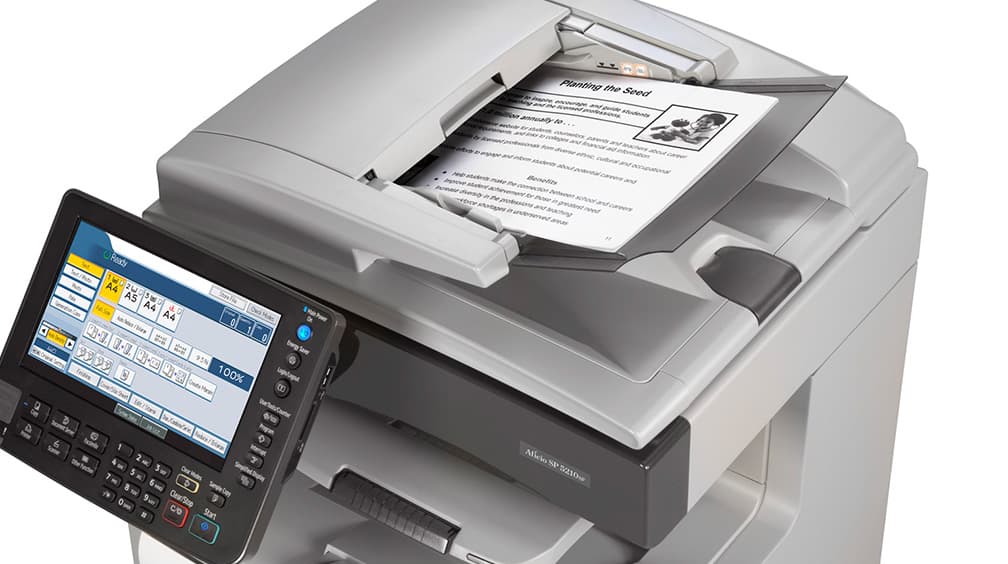

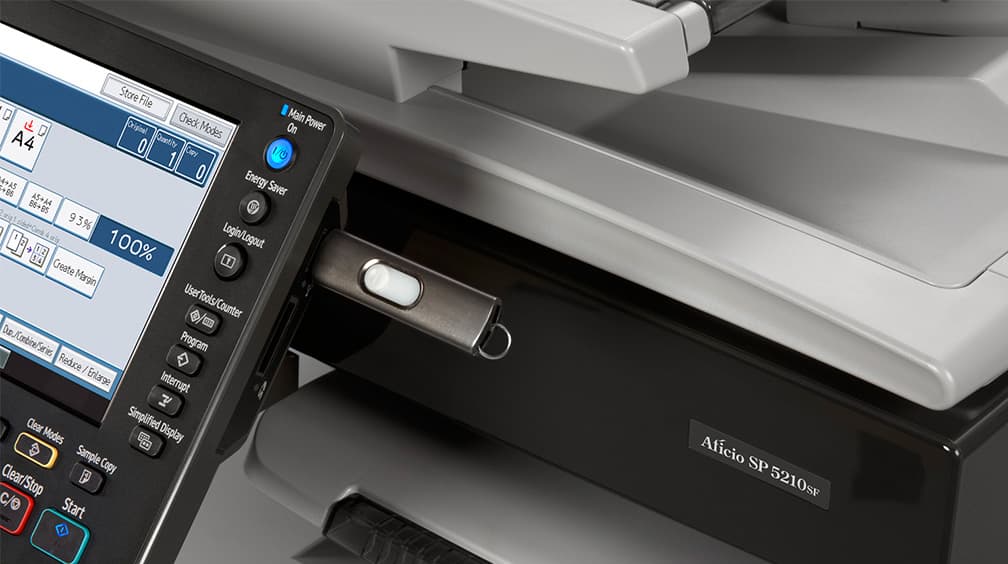

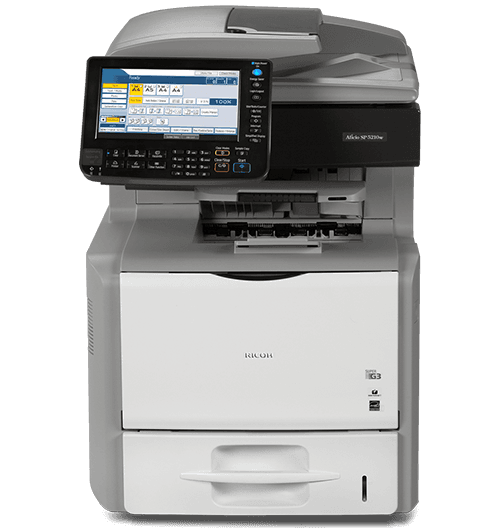

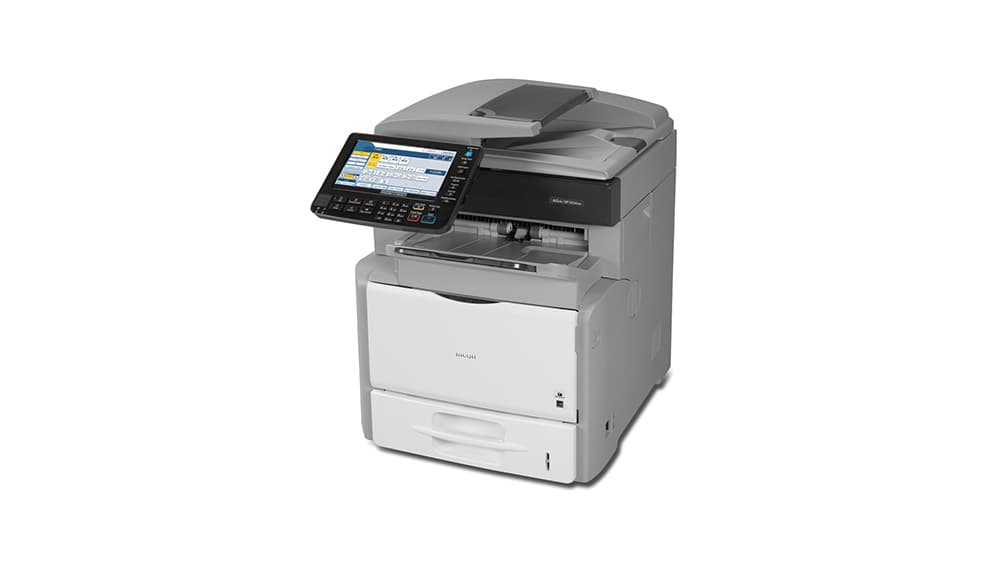

SP 5210SF

Fax Option Type SP5200

ID: 406594

• Needed to add faxing capabilities to the SP 5200S and SP 5210SR.
• Fax option may be installed on the SP 5200S and SP 5210SR only. Faxing is standard on the SP 5210SF.

Notes:

• Fax Option Type SP5200 cannot be installed with Aficio SP 5210SF.

Medium Cabinet Type C

ID: 100467FNG

• Recommended for use when mainframe is configured with 1 optional Paper Feed Unit.
• W x D x H (inches): 17.52 x 19.88 x 14.17
• W x D x H (mm): 445 x 505 x 360

Notes:

• Medium Cabinet Type C cannot be installed with Tall Cabinet Type D or Paper Feed Unit TK1100 with Casters.

Paper Feed Unit TK1090

ID: 406599

• Provides an additional 550 sheets.
• Paper sizes up to 8.5" x 14".
• Paper weights up to 80 lb. Cover/120 lb. Index.
• Up to 3 additional optional Paper Feed Units may be installed for a maximum paper capacity of 2,300 sheets, one of these must be the Paper Feed Unit TK1100 with Casters.
• W x D x H (inches): 17.8 x 20.3 x 5.9
• W x D x H (mm): 452 x 516 x 150

Notes:

• 1. The assistance of a technician is recommended when installing all 3 optional Paper Feed Units.
• 2. Paper Feed Unit TK1090 cannot be installed with Tall Cabinet Type D.

Paper Feed Unit TK1090L

ID: 407193

• This paper feed unit includes a Lock to secure sensitive or expensive paper.
• Provides an additional 550 sheets.
• Paper sizes up to 8.5" x 14".
• Paper weights up to 80 lb. Cover/120 lb. Index.
• Up to 3 additional optional Paper Feed Units may be installed for a maximum paper capacity of 2,300 sheets, one of these must be the Paper Feed Unit TK1100 with Casters.
• W x D x H (inches): 17.8 x 20.3 x 5.9
• W x D x H (mm): 452 x 516 x 150

Notes:

• 1. The assistance of a technician is recommended when installing all 3 optional Paper Feed Units.
• 2. Paper Feed Unit TK1090L cannot be installed with Tall Cabinet Type D.

Paper Feed Unit TK1090T

ID: 407194

• This paper feed unit includes Teflon tape for improved feeding of label media.
• Provides an additional 550 sheets.
• Paper sizes up to 8.5" x 14".
• Paper weights up to 80 lb. Cover/120 lb. Index.
• Up to 3 additional optional Paper Feed Units may be installed for a maximum paper capacity of 2,300 sheets, one of these must be the Paper Feed Unit TK1100 with Casters.
• W x D x H (inches): 17.8 x 20.3 x 5.9
• W x D x H (mm): 452 x 516 x 150

Notes:

• 1. The assistance of a technician is recommended when installing all 3 optional Paper Feed Units.
• 2. Paper Feed Unit TK1092T cannot be installed with Tall Cabinet Type D.

Paper Feed Unit TK1100 with Casters

ID: 406600

• For environments that want to maximize paper capacity. This paper feed unit has casters built-in so the device can be moved easily as well as stabilizers for safety.
• Provides an additional 550 sheets.
• Paper sizes up to 8.5" x 14".
• Paper weights up to 80 lb. Cover/120 lb. Index.
• W x D x H (inches): 24.7 x 25 x 8.7
• W x D x H (mm): 627 x 635 x 221

Notes:

• 1. Only 1 of this item may be installed on the system.
• 2. When properly configured, PFU TK1100 must be the lowest PFU installed.
• 3. Paper Feed Unit TK1100 with Casters cannot be installed with Medium Cabinet Type C or Tall Cabinet Type D.

Tall Cabinet Type D

ID: 100466FNG

• Recommended for use with standard mainframe when no optional Paper Feed Units are installed.
• W x D x H (inches): 17.6 x 19.88 x 19.88
• W x D x H (mm): 447 x 505 x 505

Notes:

• Tall Cabinet Type D cannot be installed with Paper Feed Unit TK1090, Paper Feed Unit TK1090L, Paper Feed Unit TK1090T, Paper Feed Unit TK1100 with Casters or Medium Cabinet Type C.

1 Year HotSpot Service Subscription Extension

ID: 006174MIU

• Extends the HotSpot Mobile Printing Service subscription by 1 additional year.

Notes:

• 1. HotSpot MFP Option Type E is required to add this option.
• 2. This Service Subscription Extension cannot be installed with another service subscription extension.

2 Year HotSpot Service Subscription Extension

ID: 003357MIU

• Extends the HotSpot Mobile Printing Service subscription by 2 additional years.

3 Year HotSpot Service Subscription Extension

ID: 004813MIU

• Extends the HotSpot Mobile Printing Service subscription by 3 additional years.

Notes:

• 1. HotSpot MFP Option Type E is required to add this option.
• 2. This Service Subscription Extension cannot be installed with another service subscription extension.

4 Year HotSpot Service Subscription Extension

ID: 004814MIU

• Extends the HotSpot Mobile Printing Service subscription by 4 additional years.

Notes:

• 1. HotSpot MFP Option Type E is required to add this option.
• 2. This Service Subscription Extension cannot be installed with another service subscription extension.

Bluetooth Interface Unit Type D

ID: 415818

• Provides wireless printing at close range.
• The bluetooth option is installed in one of the 2 USB host interface slots.

Notes:

• 1. One open interface board slot is available. Gigabit Ethernet, Wireless LAN, Bluetooth Interface or File Format Converter may be installed.
• 2. Bluetooth Interface Unit Type D cannot be installed with IEEE802.11 a/g Interface Unit Type J, File Format Converter Type E or Gigabit Ethernet Board Type C.

Browser Unit Type E

ID: 414715

• Used to display data from the server in HTML format on the machine's control panel. You can also use this function to send scanned files from the control panel.

Gigabit Ethernet Board Type C

ID: 406914

• Allows device to support a network data speed of 1,000 megabits per second, which increases the speed of data transmission.
• When this option is installed the printer's standard Ethernet and USB 2.0 ports are not available. Instead, use the Ethernet and USB 2.0 ports mounted on the Gigabit Ethernet Board.

Notes:

• 1. One open interface board slot is available. Gigabit Ethernet, Wireless LAN, Bluetooth Interface or File Format Converter may be installed.
• 2. Gigabit Ethernet Board Type C cannot be installed with IEEE802.11 a/g Interface Unit Type J, Bluetooth Interface Unit Type D or File Format Converter Type E.

HotSpot MFP Option Type E

ID: 415622

• Enables the system to be function as a HotSpot Printer. Includes a 1 year HotSpot Subscription Service.
• Includes: SD Card with Browser Software, POP Signage, Instructions and Labels. Does not include MFP or JAVA card.

IPDS Unit Type 5210

ID: 406816

• For use in AS/400 environments.
• Intelligent Printer Data Stream (IPDS). As a "genuine" IPDS solution built on original IBM source code, our IPDS option provides more accurate interpretation of IPDS data. That means less errors and faster file processing than emulations. Plus, as an IBM partner your customers can be assured of fast problem resolution and timely upgrades.

File Format Converter Type E

ID: 414007

• Required to convert formats and drag to desktop documents stored via Copy or Print mode.

Notes:

• File Format Converter Type E cannot be installed with IEEE1284 Interface Board Type A, IEEE802.11a/g/n Wireless Interface Type M2 or or USB Device Server Option Type M12.

Data Overwrite Security Unit Type I

ID: 416372

• This is an ISO 15408 Certified version of DOSS that overwrites Copy, Print, Scanner, and Fax latent data. Mainframe is targeted to be ISO 15408 certified in January 2016.

ESP AC1 Power Filter

ID: ESPAC1

• The affordable ESP AC1 power filter provides multi-stage overload protection for output devices. Our Advanced Technical Support (ATS) recommends the use of overload protection products to minimize potential electrical interference with products.

Notes:

• The ESP AC1 power filter can not be installed with the ESP XG-PCS-15D.

ESP XG-PCS-15D Power Filter

ID: 006428MIU

• The ESP XG-PCS-15D power filter provides multi-stage power protection as well as line conditioning. Our Advanced Technical Support (ATS) recommends the use of Power Protection products to minimize potential electrical interference with products.

Notes:

• ESP XG-PCS-15D Power Filter cannot be installed with the ESP S1 Power Filter.

Memory Unit Type B 32MB

ID: 001342MIU

• Increases fax memory to 2,240 pages and fax resolution to 400 x 400 dpi.

Notes:

• Fax Option Type M2 is required for this accessory.

Optional Counter I/F Type A

ID: 413012

• Optional 20-Pin Interface used to attach external key counter or key card device.
