SP 4510SF

Black and White Multifunction Printer

ID: 407302

Tackle tough jobs in small spaces

Discontinued

This product is no longer available for purchase

View Replacement

Select from the options below for support and more

System Configurator

Download Brochure

Security Guide

Share information at the speed of your business

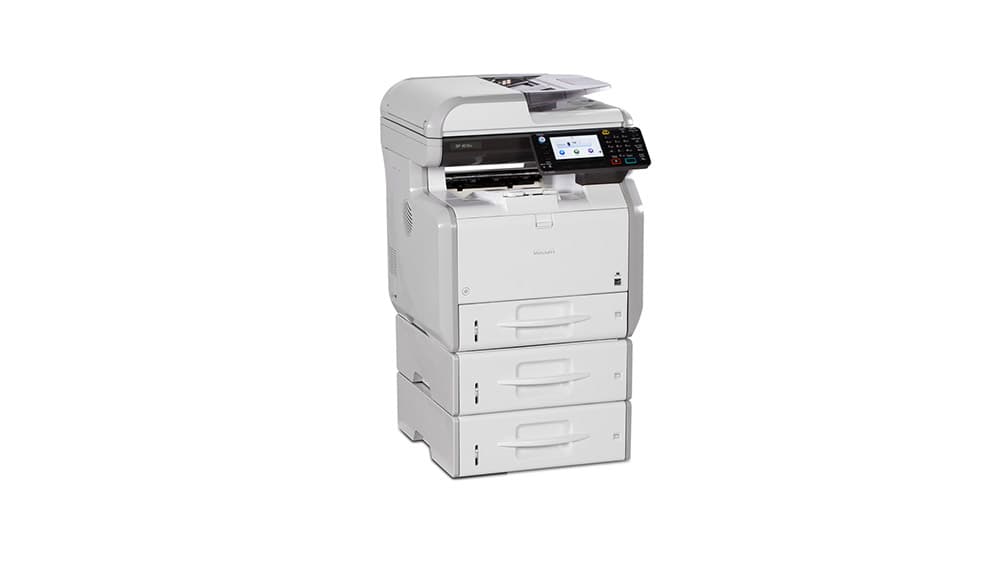

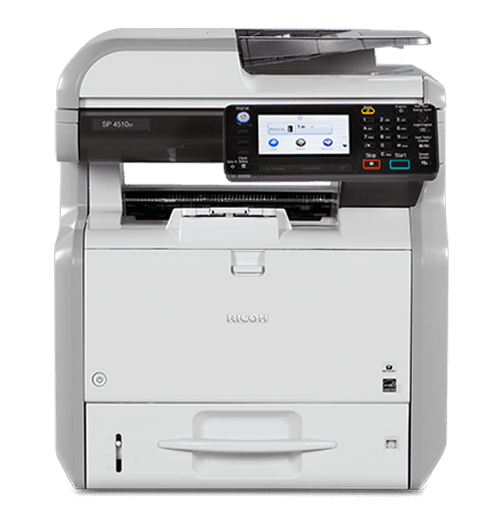

Accomplish more with the RICOH SP 4510SF Desktop Black and White Multifunction Printer for all-in-one power to copy, print, scan and fax. A powerful controller with a standard 1 GB of RAM can easily handle simultaneous print jobs and large files. Expect professional print quality of up to 42 pages per minute at 1,200 dpi. Plus, add two 500-sheet paper units for a 1,600-sheet total capacity for smooth, uninterrupted print jobs.

Gather data with cloud connectivity

Connect to and work in the cloud and take your information with you. Print from, or scan to, apps like Dropbox™ or Google Drive™, all without using expensive on-site servers, system integration or software updates. With it, you can also store and access your documents in the places you prefer, for convenient anytime sharing.

Over Achieve

Attain new heights of productivity without sacrificing quality. Standard LED Imaging technology ensures true 1,200 dpi image quality at full speed.. Utilize genuine Adobe^® PostScript 3, plus an optional IPDS solution available for use with host print applications. Also, enjoy greater media flexibility when you accommodate special stocks, weights and sizes, to can handle a variety of print jobs effortlessly. Plus, add an optional HHD for document server functionality for up to 9,000 pages of storage, and print-on-demand capability.

Customize your commands

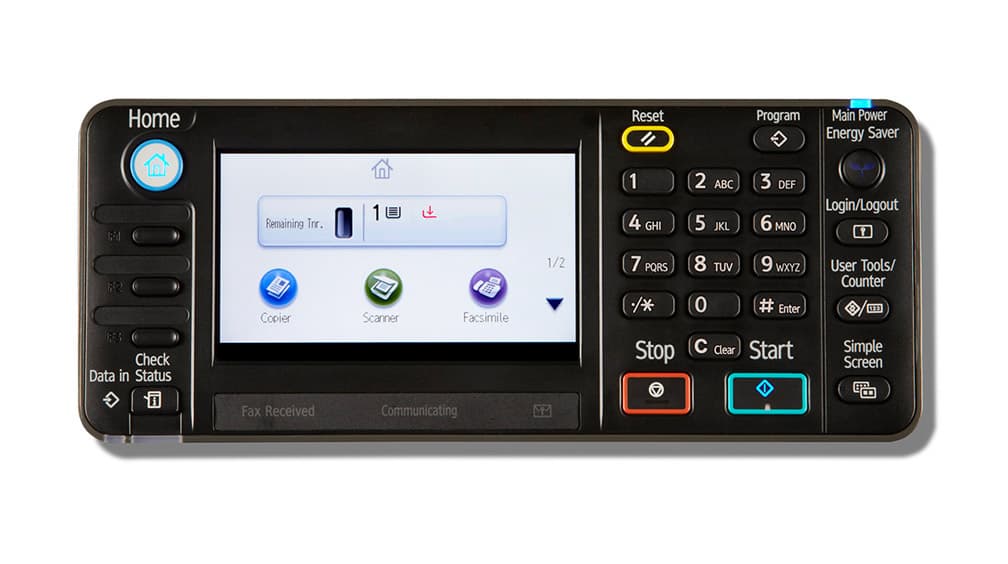

Nobody understands your business challenges better than you. That's why the SP 4510SF multifunction desktop printer features customizable controls to complement your workflow demands. You can set shortcuts for everyday tasks on the tilting 4.3" color touch-panel home screen, and accomplish your everyday tasks in less time.

Save. Recycle. Repeat.

Save paper with automatic double-sided printing, and eliminate printing blank pages. Conserve energy by using pre-set on/off settings, a low-power mode and the ECO-Night Sensor. The SP 4510SF is also an energy-efficient printer, meeting EPEAT^® Silver criteria, and is certified with the latest ENERGY STAR^® specifications. Plus, the Resource Smart Return Program makes it easy to recycle your used consumables.

Enhance your data security

Help protect critical information with advanced controller capabilities. Safeguard document access with the Locked Print feature featuring PIN protection, or ID card protection with optional ID card reader. Plus, the DataOverwriteSecurity System helps prevent information theft, interception and falsification by automatically deleting temporary files. Add the optional 320-GB Hard Disk Drive to store and archive frequently used documents.

Share more. Do more.

Share existing paper documents with the scan-to-email/folder/URL functions. It's easy to transform physical documents into digital files, and you can even create searchable PDFs when you scan using the optical character reader (OCR) option to help you better manage your information. Plus, print documents on the go with a USB memory card or SD card - or simply use your Smartphone or tablet for convenient mobile printing.

Need more information?

Learn more about the RICOH SP 4510SF Black and White Multifunction Printer and how it may fit your business.

System Configurator

Download Brochure

Security Guide

Configuration	Desktop
Scanning Element	CCD
Printing Process	LED array electro-photographic printing
Toner Type	Dry, single component
Control Panel	4.3" color touch panel
Color/Black & White	Black & White
Output Speed Copy/Print	42 ppm
First Page Out Time	5.1 seconds
Warm-Up Time	14 seconds
Recovery Time From Sleep Mode	9.2 seconds
Resolution	Up to 600 x 600 dpi
System Memory	512 MB/1 GB RAM
Maximum Copy Quantity	99 copies
Duplexing	Automatic (Standard)
Document Feeder Type	Automatic Reversing Document Feeder (ARDF)
Document Feeder Original Size	8.5" - 14" - 5.5" - 8.5" (A4 - A6), Custom: up to 8.5" x 35.43"
Document Feeder Paper Weight	Simplex: 14 - 34 lb. Bond (52 - 128 g/m2) Duplex: 16 - 28 lb. Bond (60 - 105 g/m2)
Document Feeder Capacity	50 sheets
Preset Reduction and Enlargement Ratios	65%, 78%, 93%, 129%, 155%
Zoom Range	25% to 400% in 1% increments
Exposure Glass Size	Up to 8.5" x 11" (216 x 297 mm)
Original Type	Sheets / Books
Maximum Original Size	Exposure glass: 8.5" - 11.7" (216 - 297 mm) ADF: One-sided originals: 8.5" x 23.6" (216 - 600 mm), Two-sided originals: 8.5" x 14" (216 - 356 mm)
Supported Paper Sizes	Paper Tray: 3.94" x 5.82" - 8.5" x 14" (100 x 148 - 216 x 356 mm) Bypass Tray: 2.37" x 5.0" - 8.5" x 35.43" (60 x 127 - 216 x 900 mm)
Supported Paper Weights	All Trays: 14 - 43 lb. Bond/90 lb. Index (52 - 162 g/m²) Duplex: 14 - 43 lb. Bond/90 lb. Index (52 - 162 g/m²)
Supported Paper Types	Plain, Recycled, Thick, OHP (Transparency), Letterhead, Preprinted and Envelopes
Standard Paper Capacity	1 x 500-Sheet Tray + 100-Sheet Bypass Tray
Maximum Paper Capacity	1,600 sheets
Standard Output Capacity	250 sheets
Maximum Monthly Volume	10000
Maximum Duty Cycle	150,000 prints
Power Source	120 V, 60Hz, 10A
Power Consumption	Operating: 616 W Energy Saver Mode: Less than 1W
Dimensions W x D x H	16.5" x 16.8" x 19" (419 x 427 x 484 mm)
Weight	50.6 lbs. (23 kg)

Processor Speed	533 MHz
Hard Disk Drive	320 GB (optional)
Interfaces	Standard: Gigabit Ethernet (1000/100/ 10BASE-T), USB 2.0, USB 2.0 Host Optional: IEEE1284, IEEE802.11a/b/g/n
Network Protocol	TCP/IP (IPv4, IPv6)
Supported Operating Systems	Web SmartDeviceMonitor SmartWindows XP/Vista /7/8/8.1/Server2003/ 2008/2008R2/2012/2012R2, MacOS (X10.5 or later) PS only; UNIX filters for Sun Solaris, HP-UX, Red Hat Linux, SCO OpenServer, IBM AIX; SAP R/3; Citrix Presentation Server 4.5/Citrix XenApp 5.0, 6.0, 6.5; IBM iSeries/ AS/400®**DeviceMonitor for Admin DeskTopBinder Lite
Device Management Utilities	@Remote, SmartDeviceMonitor, Device Manager NX, Web SmartDeviceMonitor, Web Image Monitor
Printer Languages	Standard: PCL6/5e, Adobe® PostScript®3™ PDF Direct Optional: IPDS*, XPS
Font Support	PCL6: 45 fonts, PCL5: 45 fonts + International fonts 13 fonts, PostScript3: 136 fonts, IPDS: 108 fonts (optional)
Print Resolution	Up to 1200 x 1200 dpi
Mobile Printing Support	Smart Device Connector App
Printer Features	ID Card Copy; Auto/Manual Density Control; Auto Start; Batch Mode; Mixed Size Originals; Copy Mode - Text, Text/Photo and Photo, Generation Copy, Pale; Combine Pages; Margin Adjustment; Auto Tray Switching; Image Rotation; Electronic Sort; Job Program (25); User Codes (1,000)
Security Features	Administrator and User Authentication, User Lockout, Auto Logout, Menu Protect, Data Encryption (Address Book/User Authentication Information/Job Logs/Temporary Stored Document/Network Interface Settings/System Settings), Network Security via TCP/IP Access Control, Encrypted communications using SSL/TLS, IPsec, or IEEE 802.1X; SMNPv3, IPP Authentication, Kerberos Authentication Encryption, Wireless LAN Security (WEP, WPA2/ WPA2-PSK), Protect document data with Locked and Stored Print, Unauthorized Copy Prevention, Compulsory Security Stamp, HDD Data Overwrite and Encryption* *Hard disk drive required.
Footnotes	Hard disk drive and optional memory required. *IPDS option required.

Scan Speed (B&W & Full Color)	B&W: up to 32 ipm Color: up to 31 ipm
Scanning Resolution	Color and B&W: up to 600 dpi TWAIN: up to 1200 dpi
Grayscale	256 levels
Scan Area	Up to 8.5" x 23.6" (216 x 600 mm)
Protocols	Network: TCP/IP; Email: SMTP, POP3, IMAP4; Scan-to-Folder: SMB, FTP, WSD Scanner
File Formats	JPEG, Single/Multi Page TIFF, PDF, High Compression PDF, PDF/A; OCR*
Scan Modes	Text, Text/Line Art, Text/Photo, Photo, Glossy Photo Color (26 bit), Gray Scale (8 bit)
Scan-to Modes	Scan-to-Email (with LDAP support) Scan-to-Folder (SMB/FTP) Scan-to-URL Network TWAIN, Scan-to-Media (USB/SD) WSD Scanner
Footnotes	*OCR option required.

Capacity	38 GB (shared with other functions)
Maximum Stored Documents	950 files (HDD required)
Maximum Pages/Document	1,000 pages
Maximum Page Capacity	9,000 pages (HDD required)

Fax Standard/Optional	Standard
Fax Resolution	Up to 200 dpi
Compression Method	MH, MR, MMR, JBIG
Scanning Speed	ARDF: 22-spm
Modem Speed	33.6 kbps with auto fallback
Transmission Speed	G3: 2 seconds per page (JBIG Compression)
SAF Memory	4 MB (approximately 320 sheets)
Max Auto Dials	1,000 standard, 2,000 with HDD
Group Dials	100
One-Touch/Speed Dials	Direct Fax Number Entry, 8 Quick Dials, 100 Speed Dials
Fax Features	Dual Access, Duplex Reception, 12-Hour Backup, LAN-Fax, Internet Fax (T.37), IP Fax (T.38), Fax Forwarding to E-Mail/HDD/Folder, PSTN, PBX

Paper Feed	Paper Feed Unit PB1060 Paper Capacity: 250 sheets Supported Paper Sizes: 3.94" x 5.82" – 8.5" x 14" (100 x 148 – 216 x 356 mm) Supported Paper Weight: 14 – 43 lb. Bond/90 lb. Index (52 – 162 g/m²) Dimensions (WxDxH): 14.6" x 15.4" x 3.7" (370 x 392 x 95 mm) Weight 9.04 lbs. (4.1 kg)
Notes	See Accessories Tab for a complete list of options
