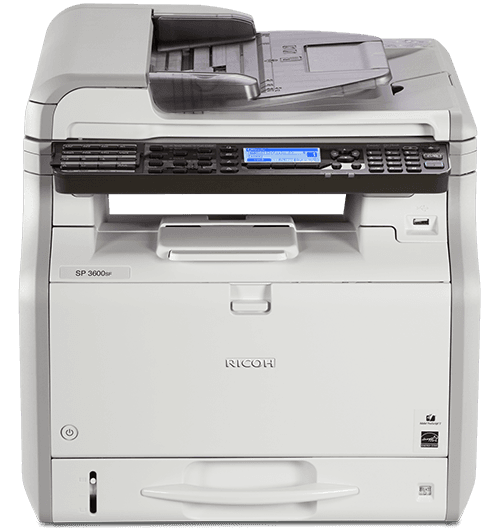

SP 3600SF

Black and White Multifunction Printer

ID: 407307

Meet your match: big printing, small office

Prints up to 31 ppm, copy, scan, fax
1200x1200 dpi max print resolution
Paper capacity up to 850 pages
Print, share and more using your mobile device

View Replacement

Select from the options below for support and more

Download Manuals

@Remote

Easily and automatically install the latest drivers for your Ricoh product.

MyRicoh

If you are a current Ricoh Customer, you can use MyRicoh to get support for your products, purchase supplies, and much more.

Knowledge Base

Access Ricoh’s comprehensive electronic database for driver and utility information, device documentation, troubleshooting assistance and more.

Configuration	Desktop
Scanning Element	Dry, single component
Printing Process	Electro-photographic printing
Toner Type	Dry, single component

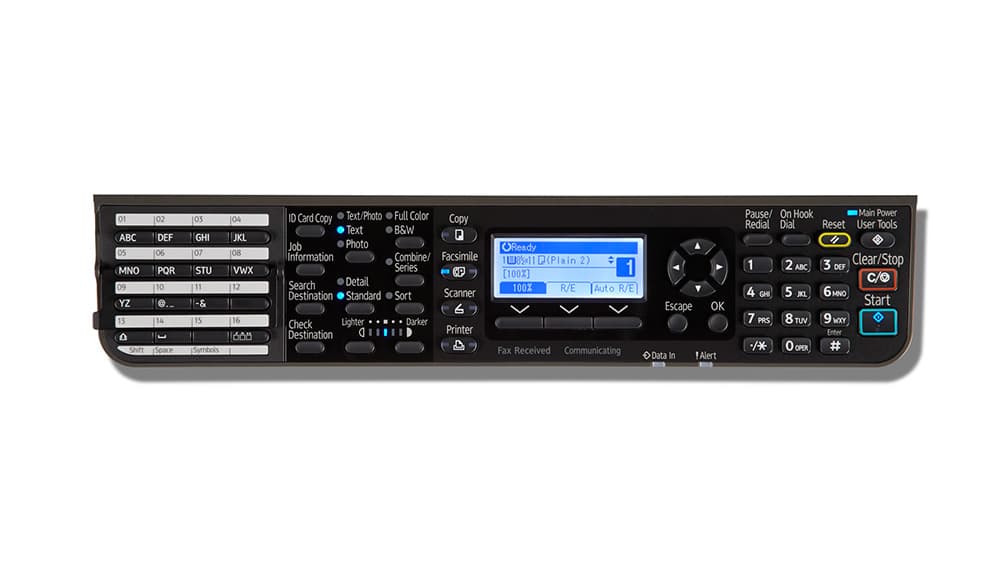

Control Panel	4-line LCD panel
Color/Black & White	Black & White
Output Speed Copy/Print	31 ppm
First Page Out Time	6.5 seconds
Warm-Up Time	14 seconds
Recovery Time From Sleep Mode	10 seconds or less
Resolution	Up to 600 x 600 dpi
System Memory	512 MB
Maximum Copy Quantity	99 copies
Duplexing	Automatic (Standard)
Document Feeder Type	Automatic Document Feeder (ADF)
Document Feeder Original Size	8.5" - 14" - 5.5" - 8.5" (A4 - A5), Custom: up to 8.5" x 35.4"
Document Feeder Paper Weight	Simplex: 14 - 34 lb. Bond (52 - 128 g/m2)
Document Feeder Capacity	35 sheets
Preset Reduction and Enlargement Ratios	65%, 78%, 93%, 129%, 155%
Exposure Glass Size	Up to 8.5" x 11"
Original Type	Sheets / Books
Maximum Original Size	Exposure glass: up to 8.5" - 11.7" (216 - 297mm) ADF/SPDF: One-sided originals: 8.5" x 35.4" (216 - 600mm), Two-sided originals: 8.5" x 14" (216 - 356mm)
Supported Paper Sizes	Paper Tray: 3.93" x 5.82" - 8.46" x 14.0" (100 x 148 - 216 x 356mm) Bypass Tray: 2.36" x 8.5 - 5.0" x 35.43" (60 x 127 - 216 x 900mm)
Supported Paper Weights	All Trays: 14 - 43 lb. Bond/90 lb. Index (52 - 162 g/m2) Duplex: 14-43 lb. Bond/90 lb. Index (52 - 162 g/m2)
Supported Paper Types	Plain, Recycled, Thick, OHP (Transparency), Letterhead, Preprinted and Envelopes
Standard Paper Capacity	1 x 250-sheet Tray + 100-sheet Bypass Tray
Maximum Paper Capacity	850 sheets
Standard Output Capacity	125 sheets
Maximum Monthly Volume	6000
Maximum Duty Cycle	50,000 prints
Power Source	120V, 60Hz, 10A
Typical Electricity Consumption (TEC)	SP 3600SF: 1.4 kWh/week
Power Consumption	Less than 1W
Energy Star	Certified
EPEAT Status	Silver
Dimensions W x D x H	15.8" x 15.4" x 16" (400 x 392 x 268 mm)
Weight	41.89 lbs. (19 kg)

Processor Speed	500 MHz
Interfaces	Standard: Ethernet (100/10BASE-T), USB 2.0; USB 2.0 Host (SP 3600SF/SP 3610SF only); Optional: IEEE802.11b/g/n (SP 3600SF/ SP 3610SF only)
Network Protocol	TCP/IP (IPv4, IPv6)
Supported Operating Systems	Windows XP/Vista/7/8/8.1, Windows Server 2003/2003 R2/2008/2008 R2/2012/2012 R2, MacOS (X10.6 - 10.9) or later
Device Management Utilities	@Remote, SmartDeviceMonitor, Device Manager NX, Web SmartDeviceMonitor, Web Image Monitor
Printer Languages	PCL6/5e, Adobe ®PostScript®3
Font Support	PCL6: 45 fonts, PCL5: 45 fonts + International fonts 13 fonts, PostScript3: 136 fonts
Print Resolution	Up to 1200 x 1200 dpi
Mobile Printing Support	Smart Device Connector App
Printer Features	Reduce/Enlarge, Collate, Layout (N-up), Duplex, Toner Saving, Watermark, Rotate Print, Support for Universal Driver

Scan Speed (B&W & Full Color)	B&W: up to 20 ipm, Color: up to 6 ipm
Scanning Resolution	Color and B&W: up to 600 dpi
Scan Area	Up to 8.5" x 14"
Protocols	TCP/IP; Email: SMTP, POP 3; Scan-to-Folder: SMB, FTP
File Formats	JPEG, Single/Multi Page TIFF, Single/Multi Page PDF
Scan Modes	Text, Text/Photo, Grayscale
Scan-to Modes	Scan-to-Email (with LDAP support); Scan-to-Folder (SMB/FTP); Network TWAIN, Scan-to-Media (USB)

Fax Standard/Optional	Standard
Compatibility	G3
Fax Resolution	Up to 200 dpi
Compression Method	MH, MR, MMR
Scanning Speed	20 ppm (Letter)
Modem Speed	33.6 kbps with auto fallback
Transmission Speed	G3: 3 seconds per page
SAF Memory	16 MB (approximately 100 sheets)
One-Touch/Speed Dials	32 locations
Fax Features	Redial (Automatic/Manual), Page Counter, Auto Reduction, Memory Lock ID Code, Energy Saver, Immediate/Parallel/Memory Transmission, Serial Broadcasting, Auto/ Manual/Substitute/Duplex Reception, LAN Fax

Paper Feed	Paper Feed Unit PB1060 Paper Capacity 250 sheets Supported Paper Sizes 3.93" x 5.82" – 8.46" x 14.0" Supported Paper Weight 14 – 43 lb. Bond/90 lb. Index (52 – 162 g/m²) Dimensions (W x D x H) 14.6" x 15.4" x 3.7" (370 x 392 x 95mm) Weight 9.04 lbs. (4.1 kg)
Notes	See Accessories Tab for a complete list of options
