| Configuration | Desktop |
|---|---|
| Scanning Element | One-dimensional solid scanning through CCD; CIS sensor; scans both sides of a page in a single pass |
| Printing Process | Dry electrostatic transfer system with dual component development; 4-drum method |

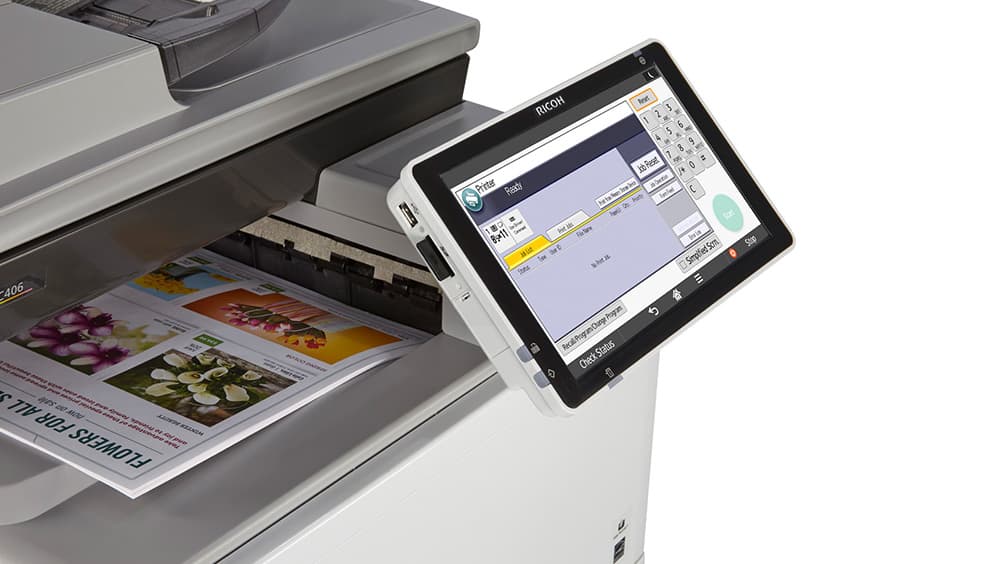

| Control Panel | 10.1" Smart Operation Panel |
| Color/Black & White | Color |
| Output Speed Copy/Print | 31 ppm |
| First Page Out Time | Color: less than 11 seconds Black and White: less than 7.2 seconds |
| Recovery Time From Sleep Mode | 8.2 seconds |
| Resolution | 600 x 600 dpi (Print: 1,200 x 1,200 dpi) |
| System Memory | 2 GB |
| Maximum Copy Quantity | Up to 999 copies |
| Duplexing | Automatic (Standard) |
| Document Feeder Type | Single Pass Document Feeder (SPDF) (Standard) |
| Preset Reduction and Enlargement Ratios | 65%, 78%, 93%, 100%, 129%, 155% |
| Zoom Range | 25% to 400% in 1% increments |
| Exposure Adjustment | Manual and automatic |
| Exposure Glass Size | Up to 8.5" x 14" |
| Maximum Original Size | 8.5" x 14" (216 x 356 mm) |
| Supported Paper Sizes | Standard Tray: 5.5" x 8.5" to 8.5" x 11" Optional Trays: 5.5" x 8.5" to 8.5" x 14" Bypass Tray: 3.0" x 5.4" to 8.5" x 23.6" Duplex Unit: 5.5" x 8.5" to 8.5" x 14" |
| Supported Paper Weights | Standard Trays: 16 - 43 lb. Bond (60 - 163 g/m2) Optional Trays: 16 - 43 lb. Bond (60 - 163 g/m2) Bypass Tray: 16 - 58 lb. Bond (60 - 220 g/m2) Duplex Unit: 16 - 43 lb. Bond (60 - 163 g/m2) |
| Supported Paper Types | Plain, Recycled, Colored, Letterhead, Preprinted, Bond, Card Stock, Special, Coated, Waterproof, Back Copied, Thick*, OHP (Transparency)*, Envelopes*, Label Stock* |
| Standard Paper Capacity | 250 sheets + 100-Sheet Bypass Tray |
| Maximum Paper Capacity | 1350 |
| Standard Output Capacity | Standard: 100 sheets, Optional: 200 sheets (total) with One Bin Tray |
| Maximum Monthly Volume | 5000 |
| Power Source | 120~ 127V, 60Hz, 10A |
| Typical Electricity Consumption (TEC) | 0.404 kWh/week TEC value is measured based on the ENERGY STAR Ver.3.0 test method. |
| Power Consumption | 1.3KW or less; Sleep Mode: .81W |
| ENERGY STAR® | Certified |
| EPEAT Status | Gold |
| Dimensions W x D x H | 19.6" x 23" x 20.1" (498 mm x 585 mm x 510 mm) |
| Weight | Less than 101.4 lbs. (46 kg) |
| Standard Features | Document Server, Java™ Poster Copy, ID Card Copy, Auto Tray Switch, Auto Start, Auto Off Timer, Energy Saver Timer, Color Balance Adjustment, Color Balance Program, Auto Color Calibration, Combine Copy, Electronic Sort, Photo Mode, Series Copy, Job Programs, User Codes (1,000), Simplified Display, Login/Logout Button, Eco-friendly Indicator |
Fax Connection Unit Type M28
ID: 417894
- Enables users to send and receive faxes on a sub MFP via a main center MFP with a fax option.
Locking Paper Feed Unit PB1080TE (1 x 500 Sheets)
ID: 417910
- A locking paper tray.
- Paper Sizes: Up to 8.5" x 14".
- Paper Weights: Up to 44 lb. Bond/90 lb. index
- Dimensions: 19.6” x 21.7” x 5.9” (498 x 551 x 150 mm)
- Weight: 23 lbs (10.4 kg)
Notes:
- Up to 2 Paper Feed Units may be added to the mainframe for a maximum paper capacity of 1,350 sheets.
- Paper Feed Unit PB1080TE cannot be installed with MPC305 High Cabinet.
1 Bin Tray BN1030
ID: 417874
- 100-sheet capacity. Provides additional output tray to separate fax or print output from copy output.
MPC305 High Cabinet
ID: 100470FNG
- Raises the base unit to a comfortable height for a floor-standing configuration.
- Weight: 39.7 lbs. (18 kg)
- W x D x H (inches): 19.6 x 20.7 x 23.6
- W x D x H (mm): 498 x 526 x 599
Notes:
- 1. MPC305 High Cabinet cannot be installed with Paper Feed Unit PB1080, MPC305 Low Cabinet, or MPC305 Medium Cabinet.
- 2. MPC305 High Cabinet can only be installed when a main unit is configured without an optional 500-sheet Paper Feed Unit. If one or two optional paper feed units are selected then this option cannot be added to your configuration.
MPC305 Low Cabinet
ID: 100468FNG
- Raises the base unit to a comfortable height for a floor-standing configuration when the printer is configured with two optional 500-sheet Paper Feed Units.
- Weight: 30.8 lbs. (14 kg)
- W x D x H (inches): 19.6 x 20.7 x 11.8
- W x D x H (mm): 498 x 526 x 300
Notes:
- 1. MPC305 Low Cabinet cannot be installed with the base unit, MPC305 Medium Cabinet, or MPC305 High Cabinet.
- 2. MPC305 Low Cabinet can only be installed when the base unit is configured with two optional 500-sheet Paper Feed Units. If two optional paper feed units are not added then this option cannot be added to your configuration.
MPC305 Medium Cabinet
ID: 100469FNG
- Raises the base unit to a comfortable height for a floor-standing configuration when the printer is configured with one optional 500-sheet Paper Feed Unit.
- Weight: 35.3 lbs. (16 kg)
- W x D x H (inches): 19.6 x 20.7 x 17.7
- W x D x H (mm): 498 x 526 x 450
Notes:
- 1. MPC305 Medium Cabinet cannot be installed with the base unit, MPC305 Low Cabinet, or MPC305 High Cabinet.
- 2. MPC305 Medium Cabinet can only be installed when the base unit is configured with one optional 500-sheet Paper Feed Unit. If one optional paper feed unit is not added then this option cannot be added to your configuration.
Paper Feed Unit PB1080
ID: 417426
- Provides an additional 500 sheets.
- Paper sizes up to 8.5" x 14".
- Paper weights up to 44 lb. Bond/90 lb. Index.
- Weight: 23 lbs. (10.4 kg)
- Up to 2 Paper Feed Units may be added to the mainframe for a maximum paper capacity of 1,350 sheets.
- W x D x H (inches): 19.6 x 21.7 x 5.9
- W x D x H (mm): 498 x 551 x 150
Notes:
- Paper Feed Unit PB1080 cannot be installed with MPC305 High Cabinet.
Embedded HotSpot Option Type S
ID: 415620
- Required to enable HotSpot printing. One year HotSpot printing subscription service.
Extended USB Board Type M19
ID: 417566
- Required for printing from USB Type B port.
Notes:
- Extended USB Board Type M19 cannot be installed with IEEE 1284 Interface Board Type M19, IEEE 802.11a/g/n Interface Unit Type M19, or File Format Converter Type M19.
File Format Converter Type M19
ID: 417508
- Required to convert formats and drag to desktop documents stored via Copy or Print mode.
Notes:
- File Format Converter Type M19 cannot be installed with the following options: IEEE 1284 Interface Board Type M19, IEEE 802.11a/g/n Interface Unit Type M19, or Extended USB Board Type M19.
- *Exception - The File Format Converter Type M19 can be installed with the following options on the MP C4504ex or MP C6004ex models: IEEE 1284 Interface Board Type M19, IEEE 802.11a/g/n Interface Unit Type M19, or Extended USB Board Type M19.
IEEE 1284 Interface Board Type M19
ID: 417596
- For environments that require parallel connectivity.
- Allows device connection with legacy computer equipment.
Notes:
- IEEE 1284 Interface Board Type M19 cannot be installed with IEEE 802.11a/g/n Interface Unit Type M19, File Format Converter Type M19, or Extended USB Board Type M19.
IEEE 802.11a/g/n Interface Unit Type M19
ID: 417493
- This option allows you to connect the device to an IEEE 802.11 a/b/g/n wireless LAN.
OCR Unit Type M13
ID: 417430
- This function embeds invisible text on scanned images of PDF and enables users to search PDF files by arbitrary keywords. Searchable PDF files can be sent to email, folders, and external media (USB/SD Card).
Page Keeper Type M28
ID: 417893
- A multi-feed detection sensor that automatically stops a scanning job if more than one page is fed through the Single Pass Document Feeder.
- Ideal for environments that rely on scanning workflows and often scan mixed sized originals.
PostScript® 3 Unit Type M28
ID: 417887
- Genuine Adobe® PostScript® option.
- Recommended for printing more complex color and PDF files.
USB Device Server Option Type M19A
ID: 418105
- An interface board for adding an extra Ethernet port. If you install the USB Device Server Option, you can connect two Ethernet cables simultaneously: one to the machine's Gigabit Ethernet port and one to the Gigabit Ethernet port of USB Device Server Option. An IP address can be assigned to each connection and you can use one machine to print from different network segments.
Notes:
- USB Device Server Option Type M19A cannot be installed with IEEE 1284 Interface Board Type M19, IEEE 802.11a/g/n Interface Unit Type M19, File Format Converter Type M19, or Extended USB Board Type M19.
XPS Direct Print Option Type M28
ID: 417890
- This option enables direct printing of XPS format documents.
ESP S1 Power Filter
ID: ESPS1
- The affordable ESP S1 power filter provides multi-stage power protection for output devices. Our Advanced Technical Support (ATS) recommends the use of Power Protection products to minimize potential electrical interference with products.
Notes:
- ESP S1 Power Filter cannot be installed with the ESP XG-PCS-15D Power Filter.
ESP XG-PCS-15D Power Filter
ID: 006428MIU
- The ESP XG-PCS-15D power filter provides multi-stage power protection as well as line conditioning. Our Advanced Technical Support (ATS) recommends the use of Power Protection products to minimize potential electrical interference with products.
Notes:
- ESP XG-PCS-15D Power Filter cannot be installed with the ESP S1 Power Filter.
NFC Card Reader Type M13
ID: 417412
- Enables users to log into and authenticate to the MFP with a programmed access card.
- Does not support Java SDK applications.
