MP C2504ex

Color Laser Multifunction Printer

ID: 418024

Expand value with color and customization



This product is no longer available for purchase

Select from the options below for support and more

Do it all — all the time

Expand your flow of information. Print or copy up to 25 pages per minute (ppm) with the RICOH MP C2504ex Color Laser Multifunction Printer (MFP). Share full-color originals digitally via scan-to capabilities. Fax documents without paper or transmission costs. Avoid delays with paper capacity up to 2,300 sheets. Plus, you can use standard PostScript® and PDF Direct Print emulation to process even the most complex jobs.

Enjoy a new way to work

With a Smart Operation Panel (SOP) you can toggle between jobs and tasks on the full-color 10.1"-wide touchscreen. Create shortcuts and download additional apps from our application site to automate workflows instantly. Add the new Quick Copy Widget to make basic copy jobs easily accessible. With the SOP Designer tool, technical and support teams can customize the Home Screen with a corporate logo, shortcut icons, messages and more from their PC prior to delivery or at the customer site after the MFP is installed. For more complex workflows, add optional software solutions such as RICOH Content Manager to simplify how you manage information.

Get up, get moving, get productive

Download the RICOH Smart Device Connector App to connect your smartphone or tablet to the MP C2504ex. Print anything — even emails with images and PDF attachments — without print utilities, software or drivers. Find information on the embedded document server, access cloud applications through the built-in web browser, or tap into your mobile device. You can even use the app to display information on your smartphone to Ricoh projectors and digital interactive whiteboards.

Learn the smarter way*

Help is right in front of you. With RemoteConnect Support, our experienced technicians use screen-sharing technology to access your SOP to identify and resolve issues for you. Use Remote Panel Operation and RICOH Device Manager NX to adjust system and print settings via the LAN. Upgrade a fleet of devices with ease with Automatic Remote Firmware Support. Use Web HELP to access a convenient list of FAQs. Plus, you can download self-help videos from our application site for troubleshooting.
*When enabled, internet connection required.
infovisual-support

Create compelling color output

Copy handwritten notes or produce glossy promotional materials with remarkable ease. Print on paper sizes up to 12"x 18" on thicker paper stocks up to 300 gsm. Whatever you choose, you can expect vibrant colors with precise 1200 x 1200 dpi image quality. The device even recalibrates itself for color accuracy.

Make it to the end with ease

Finish any way you want. With innovative rollers, paper stacks uniformly in the output tray for easy distribution. Or, choose from three powerful, optional finishers to meet the unique needs of your office environment, including two space-saving internal finishers and an external 1,000-sheet booklet finisher.

Be more secure with your data, documents and devices

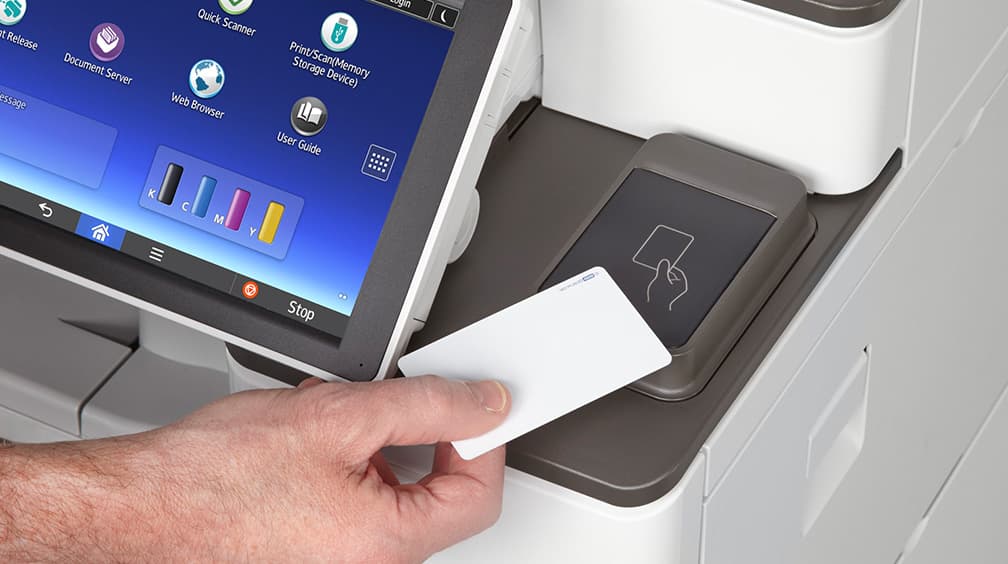

Help keep your information confidential. With user authentication, you can use passcodes or an optional Near Field Communication (NFC) card reader to access specific functions on the MP C2504ex. Track every user’s activity with optional print management software such as RICOH Card Authentication Package. Use the optional RICOH Device Manager NX Accounting to issue chargebacks.

Take responsibility for your environment

Save on energy and operating costs with eco-friendly features. The device recovers from energy saving Sleep Mode in just 7.1 seconds and uses its motion sensor technology to power up the operation panel in less than one second. You can also take advantage of default duplex printing to cut paper usage.
infovisual-environment-4

Need more information?

Learn more about the RICOH MP C2504ex Color Laser Multifunction Printer and how it may fit your business.

Engine/General Specifications

Resolution

600 dpi

Dimensions W x D x H

23.1" x 27.0" x 35.92" (587 mm x 685 mm x 913 mm) (includes ARDF)



*Tray 2 and Bypass Tray Only
**Bypass Tray Only
***Typical Electricity Consumption by ENERGY STAR Qualified Imaging Equipment Test Procedure

Weight

197 lbs., 89.2 kg (Includes ARDF)

Maximum Monthly Volume

40000

Power Consumption

1,584W or less; Sleep Mode: 0.8W

Supported Paper Weights

Standard Trays: 16 - 80 lb. Bond/166 lb. Index (60 - 300 g/m2)
Bypass Tray: 14 - 80 lb. Bond/166 lb. Index (52 - 300 g/m2)
Duplex Unit: 14 -34lb. Bond (52 - 169 g/m2)

Power Source

120V - 127V, 60Hz, 12A

Duplexing

Automatic (Standard)

Color / Black & White

Color

Control Panel

10.1" Smart Operation Panel

Maximum Copy Quantity

Up to 999 copies

Standard Output Capacity

500 sheets

Configuration

Console

Automatic Reversing Document Feeder (ARDF)

Original Capacity: 100 sheets
Original Size: 5.5" x 8.5" – 11" x 17" (A5-A3)
Paper Weight: Simplex: 11 - 34 lb. Bond (40 - 128 g/m2)
Duplex: 14 -34 lb. Bond (52 - 128 g/m2)

Printing Process

4-Drum Method

Supported Paper Sizes

1st Paper Tray: 8.5" x 11" (A4)
2nd, 3rd, 4th, Paper Trays: 5.5" x 8.5" - 12" x 18" (A6-A3), Envelopes
Bypass: Up to 12.6" x 18", Envelopes
Custom Sizes: Width: 3.5" - 12.6" (90 - 320 mm), Length: 5.8" - 49.6" (148 - 1260 mm)

System Memory

2 GB RAM/250GB HDD Standard & 4GB RAM/250 GB HDD Option

Maximum Output Capacity

625 sheets (with options)

First Page Out Time

7.5/5.3 seconds

Supported Paper Types

Plain, Recycled, Special Paper 1-3, Letterhead, Cardstock, Preprinted Paper, Bond Paper, High-Gloss Coated Paper, Color Paper, Envelopes*, Coated, Labels* & OHP*

Output Speed Copy/Print

25 ppm B&W & FC (LTR)

Maximum Paper Capacity

2,300 sheets

Standard Paper Capacity

1,200 sheets (2 x 550 sheets + 100-Sheet Bypass Tray)

Zoom Range

25% - 400% in 1% increments

Recovery Time From Sleep Mode

7.1 seconds

Printer Specifications

Interfaces

Standard: 1000Base-T/100Base-TX/10Base-T Ethernet, USB 2.0 Type A (3 Ports), SD Slot on Operation Panel
Option: IEEE1284/ECP, IEEE802.11a/b/g/n, USB 2.0 Type B

Font Support

Standard: PCL: 45 Roman fonts + 13 International fonts
PostScript®3 Emulation: 80 Roman fonts + 13 International fonts
Optional: Genuine Adobe® PostScript®3: 136 Roman fonts

Device Management Utilities

Device Manager NX Series, Web Image Monitor, @Remote

Security Features

DataOverwriteSecurity System (DOSS), HDD Encryption, User Codes, SNMP v3 Support, Encryption, Locked Print, User Authentication, 802.1x Wired Authentication, Quota Setting/Account Limit, Digitally Signed PDF, and more

Printer Languages

Standard: PCL5c, PCL6, PostScript®3 Emulation, PDF Direct Print Emulation
Optional: Genuine Adobe® PostScript®3, Adobe® PDF Direct Print, PictBridge®

Network Protocol

TCP/IP (IPv4, IPv6)

Processor Speed

Intel Atom Processor Bay Trail 1.33 GHz

Supported Operating Systems

Windows® Vista/7/8.1/Server 2008/Server 2008R2/Server2012/Server2012R2/Server 2016, Unix: Sun Solaris, HP-UX, SCO OpenServer, RedHat Linux, IBM AIX, Citrix XenDesktop 7.0/7.1, XenApp 6.5/7.5, Mac OS X v.10.9 or later, SAP R/3, SAP S/4, IBM iSeries AS/400-using OS/400 Host Print Transform

Print Resolution

1200 x 1200 dpi

Scanner Specifications

Scan Modes

Scan-to-Email (with LDAP support)
Scan-to-Folder (SMB/FTP)
Scan-to-URL
Scan-to-Media (USB/SD Card)
Network TWAIN Scanning

Scan Speed BW Full Color

80 ipm (200 dpi/300 dpi)

File Formats

Single/Multi-Page TIFF, PDF, High Compression PDF & PDF/A, Single Page JPEG

Scanning Resolution

B&W and FC scanning at 100 – 600 dpi, Up to 1200 dpi for TWAIN scanning

Scan Area

11.7" x 17" (297 - 432 mm)

Fax Specifications

Type

ITU-T (CCITT) G3

Compression Method

B&W TIFF: MH, MR, MMR, JBIG2; Color: JPEG

Group Dials

100 Group Dial numbers

Max Auto Dials

2,000 Quick/Speed Dial numbers

Circuit

PSTN, PBX

Scanning Speed

Up to 58 spm - standard and detail modes (A4)

Transmission Speed

G3: Approximately 2 seconds/page (JBIG)

Modem Speed

33.6K - 2,400 bps w/Auto Fallback

Fax Resolution

200 x 100 dpi, 200 x 200 dpi, 400 x 400 dpi (with optional SAF memory)

Memory

Standard: 4 MB (approx. 320 pages)
Optional: 64 MB (approx. 4,800 pages) with optional SAF memory

Document Server Specifications

Maximum Page Capacity

9000

Maximum Pages/Document

2000

Max Number of Folders

200
