Combine speed with convenience

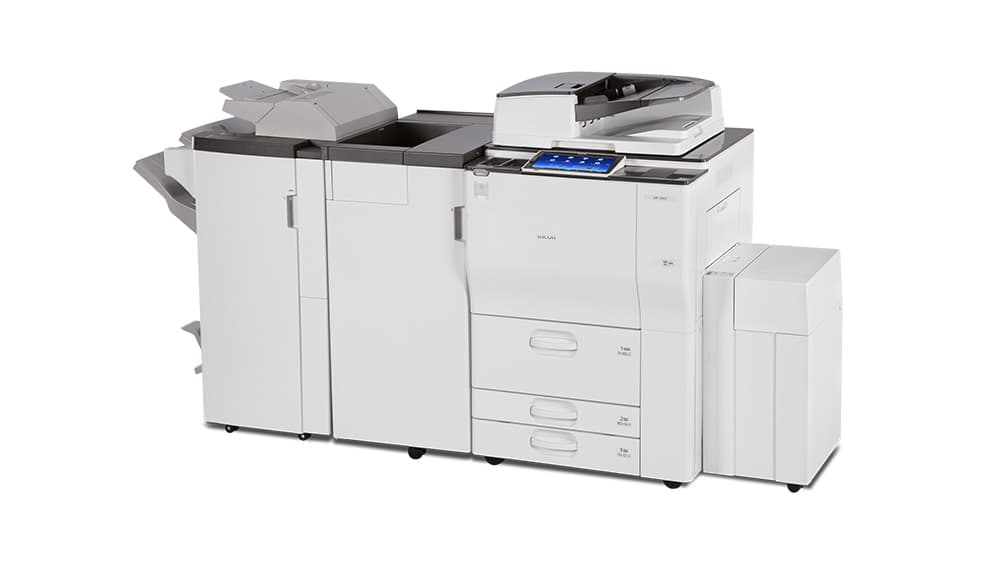

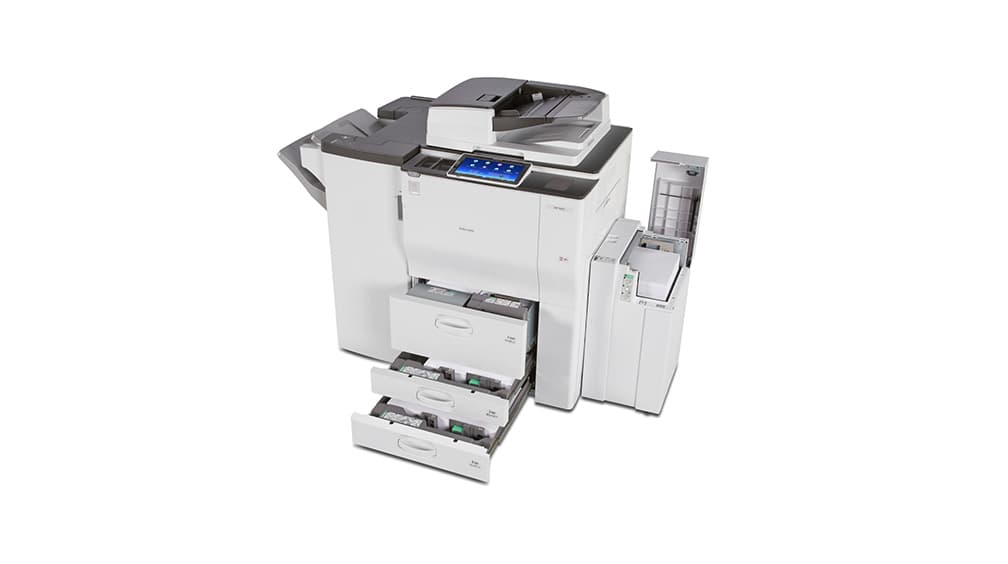

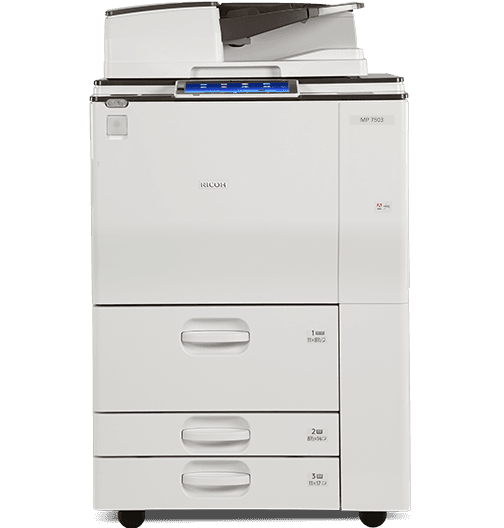

Complete bigger jobs even if you don't have the biggest budget. Create your own path to productivity with the Ricoh MP 7503 Black and White Laser Multifunction Printer (MFP). You can accomplish more high-volume tasks with less effort via customizable digital workflows, cloud-based accessibility, support for mobile users and more.
Perform every task, every way
Simplify how you work by printing, copying, scanning and faxing from the MP 7503. Use it to print black-and-white output on a wide range of paper stocks at up to 75 pages per minute (ppm) with resolutions up to 1200 x 1200 dpi. Scan full-color originals and distribute them immediately with a host of Scan-to capabilities. Deliver incoming faxes directly into your email for fast, inexpensive paperless collaboration.
Make a push toward productivity

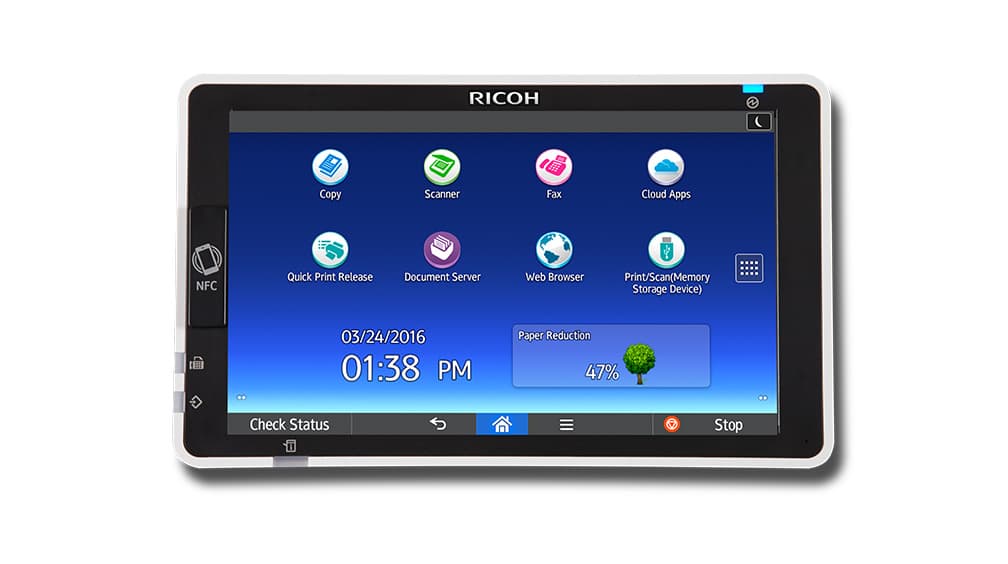

Change the way you work. The large 10.1" Wide Smart Operation Panel replaces hard keys with touchscreen precision. With the same movements you use on your smartphone, you can slide from one job to the next, download information-rich widgets, check settings and more with a single swipe, pinch, flick or drag. An embedded web browser makes it easy to access the internet and take advantage of powerful scanning and cloud services including Ricoh DocumentMall and Syncplicity Enterprise File Sync & Share.
Let your preferences be shown
Create customized shortcuts to frequently used tasks and skip time-consuming manual steps. Connect directly to print, copy, fax and scan functions with a single touch. Find information just as easily. Use optical character recognition (OCR) on your scanned files to make them keyword-searchable. For even greater productivity, add Ricoh Streamline NX, Nuance® AutoStore® or other Brand and third-party workflow software.
Track every user
Make sure that your information remains secure. Restrict access to the MFP to authorized users only. Have them sign in via passcode, or billing code on the control panel or by swiping an identity card with the optional NFC card reader. Track every action and assign chargebacks when you pair it with optional accounting software, including Ricoh Device Manager NX Accounting. Set print quotas to curb excessive printing for specific users or departments.
Work on the run
Print on the move without utilities, software or drivers. Download the RICOH Smart Device Connector app to control print, copy, scan and fax functions directly from your smartphone or tablet. Access the information you need from the device or from your choice of cloud applications. You can also send digital files to contacts in your personal address book and bypass the network entirely.
Centralize administrative tasks
You can stay where you are and still stay in control. Monitor the MFP online using Ricoh Device Manager NX. Use @Remote to collect device usage data, track metrics and automate service calls. Install and update print drivers automatically with Ricoh Device Software Manager. If you need help, our knowledgeable support staff can access and configure your MFP's settings.
Reduce energy and resource costs to restore your budget
With a powerful and compact MFP that meets EPEAT® Gold criteria and ENERGY STAR™ certifications, you can save money with low Typical Electricity Consumption value. The Motion Detection sensor detects your presence and turns on the control panel from Sleep Mode automatically, so you can avoid frustrating delays. For even more savings, take advantage of the default duplex printing, and schedule the MFP to shut off during off-peak office hours.
Add the finishing touch
Improve your finished documents with stapling, stacking and a wide range of automated finishing options. Choose the one that fits your unique requirements and give every presentation a more professional appearance.
Need more information?
Learn how the RICOH MP 7503 Black and White Laser Multifunction Printer and how it may fit your business.
| Configuration | Console |
|---|---|
| Control Panel | 10.1" Smart Operation Panel |
| Color/Black & White | Black & White |
| Output Speed Copy/Print | 75 ppm (Letter LEF) |
| First Page Out Time | 3.2 seconds |
| Warm-Up Time | 20 seconds |
| Recovery Time From Sleep Mode | 20 seconds |
| Resolution | True 600 x 600 dpi |
| System Memory | 2 GB |
| Duplexing | Automatic (Standard) |
| Document Feeder Type | Single Pass Duplex Feeder (SPDF) |
| Document Feeder Original Size | 5.5" x 8.5" - 11" x 17" (A5 - A3) |
| Document Feeder Paper Weight | Simplex: 11 lb. – 34 lb. Bond (40 – 128 g/m2) Duplex: 14 lb. – 34 lb. Bond (52 – 128 g/m2) |
| Document Feeder Capacity | 220 sheets (based on 21 lb. Bond – 81.4 g/m2) |
| Zoom Range | 25% - 400% in 1% increments |
| Original Type | Sheets / Books |
| Maximum Original Size | Up to 11" x 17" |
| Supported Paper Sizes | 5.5" x 8.5" – 11" x 17" |
| Supported Paper Weights | Trays 1 – 3: 52 – 256 g/m2 (14 lb. Bond – 68 lb. Bond) Bypass Tray: 52 – 300 g/m2 (14 lb. Bond – 111 lb. Cover) Duplex Unit: 64 – 256 g/m2(17 lb. Bond – 95 lb. Cover) |
| Standard Paper Capacity | Standard: Tray 1: 1,550 sheets x 2 (tandem) = 3,100 (Letter); Trays 2 & 3: 550 sheets each (user adjustable) Bypass: 100 sheets Total Standard: 4,301 |
| Maximum Paper Capacity | 8,300 sheets |
| Maximum Monthly Volume | 150000 |
| Power Source | 120-127V/60Hz/20A (Requires dedicated 20A outlet) |
| Typical Electricity Consumption (TEC) | 1.442 kWh/week TEC value is measured based on the ENERGY STAR Ver.3.0 test method. |
| Energy Star | Certified |
| EPEAT Status | Gold |
| Dimensions W x D x H | 27.2" x 31.6" x 45.7" (690 x 803 x 1161 mm) |
| Weight | 441 lbs. (200 kg) |
