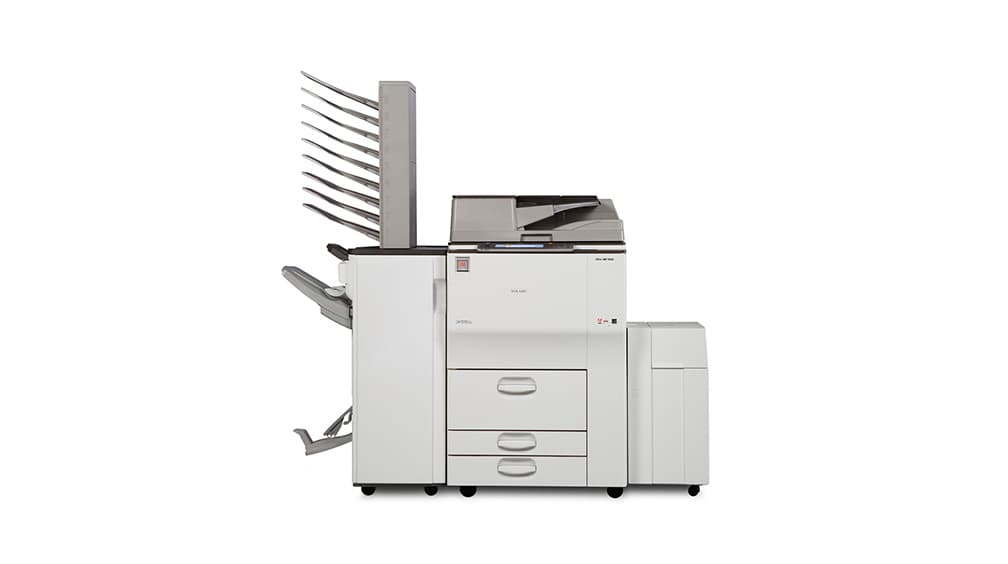

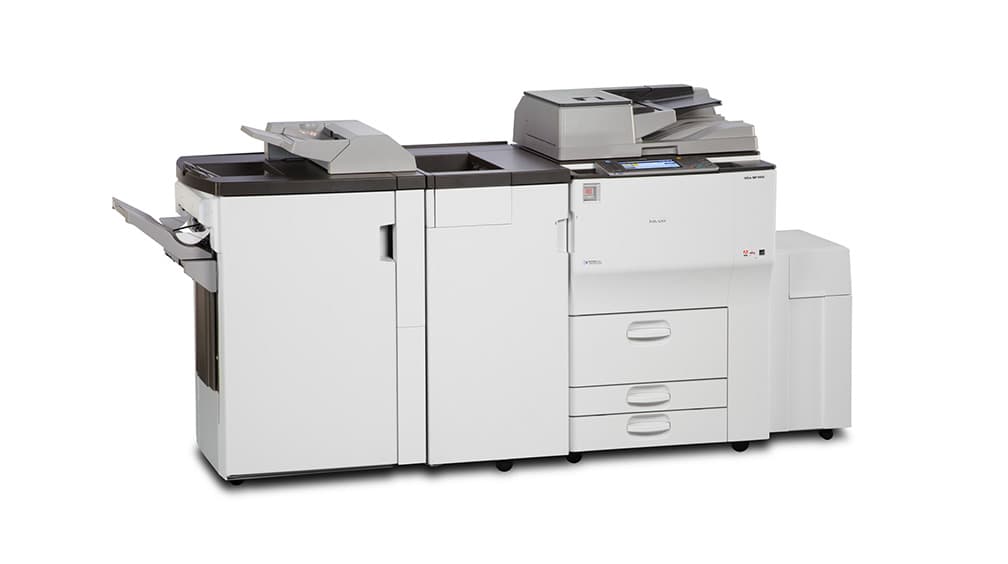

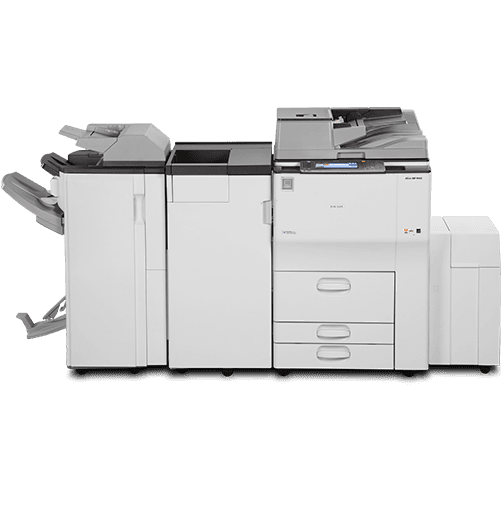

MP 7502

Fax Connection Unit Type E

ID: 415929

Notes:

• Enables users to send and receive faxes from the sub machines (up to 6) via the Primary MFP. Communicates over the network with the unit that has the fax option. Copier Basic requires upgrade with the Print Scan Unit Type 9002 and Fax Connection Unit Type E. SP configuration requires the Fax Option Type 9002, and Fax Connection Unit Type E.

Fax Option Type 9002

ID: 415912

G3 Interface Unit Type 9002

ID: 415917

Notes:

• Adds one additional fax line. Up to two lines may be added for a maximum of three lines.

2/3 Hole Punch Kit Type 1075

ID: 415282

• Optional hole punching unit for Finisher SR4080.

Notes:

• This option cannot be installed with Finisher SR4120 or Booklet Finisher SR4130.

BK5010 Rail Unit

ID: 413105

• Helps dock/undock the BK5010e Production Bookletmaker from the SR4110 Finisher.

Notes:

• BK5010e is required to add this option.

Book Folder BF5010e

ID: 404300

• Completes the booklets giving them the same professional flat finish as perfect bound books, with a printable spine with the appearance of a magazine.
• An additional accessory option for the BK5010e Production Bookletmaker.

Notes:

• BK5010e is required to add this option.

Booklet Maker BK5010e

ID: 404305

• When the system is configured with a SR4110 Finisher and the BK5010e Production Bookletmaker, the result is a fully-integrated system that produces saddle-stitched booklets up to 30-sheets at a time, the equivalent of a 120-page book. The finisher automatically adjusts for paper size and direction and supports booklet making directly from most drivers, making printing from any network seamless and easy.

Notes:

• SR4110 is required to add this option.

CF5010 Cover Feeder

ID: 413102

• Provides the ability to add pre-printed covers to booklets being made on the BK5010e.

Notes:

• BK5010e is required to add this option.

Copy Tray Type 9002

ID: 416229

• Select the 500-sheet Copy Tray if you do not require advanced finishing including stapling, hole punching, folding or booklet making.
• When configured with this option, output is delivered face down in a neat stack.
• Weight: 1.65 lbs. (.75 kg)
• W x D x H (inches): 12.9 x 16.2 x 3.1
• W x D x H (mm): 328 x 411 x 79

Notes:

• Copy Tray Type 9002 cannot be installed with Finisher SR4120, Booklet Finisher SR4130, Finisher SR4080, Cover Interposer Tray CI4030, Cover Interposer Tray CI4040, Mailbox CS4010, Multi-Folding Unit FD4000, or any related options.

Finisher SR4080

ID: 415900

• This 3,000-sheet Finisher is ideal for offices that produce collated and stapled sets of documents. It offers 100-sheet, multi-position stapling, mixed sized stapling, optional hole-punching, and shift-sort collating.
• Weight: 150 lbs. (68 kg)
• W x D x H (inches): 31.5 x 28.7 x 38.6
• W x D x H (mm): 800 x 729 x 980

Notes:

• Finisher SR4080 cannot be installed with Copy Tray Type 9002, Finisher SR4120, Booklet Finisher SR4130, Cover Interposer Tray CI4040, Mailbox CS4010, or any related options.

GBC 32 Hole Pro Click Die Set

ID: 002493MIU

• Production use die set option for the GBC StreamPunch Pro. Only one can be installed inside the GBC StreamPunch Pro at a time.

Notes:

• 1. Production use die set option for use in the GBC StreamPunch Pro only.
• 2. Only 1 Die Set can be installed inside the GBC StreamPunch Pro at a time.

GBC Die Set 11 Hole (Velobind)

ID: 001451MIU

• Standard use die set option for the GBC StreamPunch Pro. Only one can be installed inside the GBC StreamPunch Pro at a time.

Notes:

• 1. Standard use die set option for use in the GBC StreamPunch Pro only.
• 2. Only 1 Die Set can be installed inside the GBC StreamPunch Pro at a time.

GBC Die Set 19 Hole (Cerlox)

ID: 001452MIU

• Standard use die set option for the GBC StreamPunch Pro. Only one can be installed inside the GBC StreamPunch Pro.

Notes:

• 1. Standard use die set option for use in the GBC StreamPunch Pro only.
• 2. Only 1 Die Set can be installed inside the GBC StreamPunch Pro at a time.

GBC Die Set 21 Hole (Twin Loop Wire 2:1)

ID: 001453MIU

• Standard use die set option for the GBC StreamPunch Pro. Only one can be installed inside the GBC StreamPunch Pro at a time.

Notes:

• 1. Standard use die set option for use in the GBC StreamPunch Pro only.
• 2. Only 1 Die Set can be installed inside the GBC StreamPunch Pro at a time.

GBC Die Set 3 Hole (Ring Binder)

ID: 001450MIU

• Standard use die set option for the GBC StreamPunch Pro. Only one can be installed inside the GBC StreamPunch Pro at a time.

Notes:

• 1. Standard use die set option for use in the GBC StreamPunch Pro only.
• 2. Only 1 Die Set can be installed inside the GBC StreamPunch Pro at a time.

GBC Die Set 32 Hole (Twin Loop Wire 3:1)

ID: 001454MIU

• Standard use die set option for the GBC StreamPunch Pro. Only one can be installed inside the GBC StreamPunch Pro at a time.

Notes:

• 1. Standard use die set option for use in the GBC StreamPunch Pro only.
• 2. Only 1 Die Set can be installed inside the GBC StreamPunch Pro at a time.

GBC Die Set 44 Hole (Color Coil)

ID: 001455MIU

• Standard use die set option for the GBC StreamPunch Pro. Only one can be installed inside the GBC StreamPunch Pro at a time.

Notes:

• 1. Standard use die set option for use in the GBC StreamPunch Pro only.
• 2. Only 1 Die Set can be installed inside the GBC StreamPunch Pro at a time.

GBC Pro 19 Hole HD Die Set

ID: 404416

• Production use die set option for the GBC StreamPunch Pro. Only one can be installed inside the GBC StreamPunch Pro at a time.

Notes:

• 1. Production use die set option for use in the GBC StreamPunch Pro only.
• 2. Only 1 Die Set can be installed inside the GBC StreamPunch Pro at a time.

GBC Pro 3 Hole HD Die Set

ID: 404415

• Production use die set option for the GBC StreamPunch Pro.
• Only one can be installed inside the GBC StreamPunch Pro at a time.

Notes:

• 1. Production use die set option for use in the GBC StreamPunch Pro only.
• 2. Only 1 Die Set can be installed inside the GBC StreamPunch Pro at a time.

GBC Pro 44 Hole HD Die Set

ID: 404417

• Production use die set option for the GBC StreamPunch Pro. Only one can be installed inside the GBC StreamPunch Pro at a time.

Notes:

• 1. Production use die set option for use in the GBC StreamPunch Pro only.
• 2. Only 1 Die Set can be installed inside the GBC StreamPunch Pro at a time.

GBC StreamPunch Pro

ID: 404412

• Customer replaceable punch option (note: option color may not match mainframe MFP).

Notes:

• 1. SR4110 is required to add this option.
• 2. Requires the purchase of at least one GBC die set.

Multi-Folding Unit FD4000

ID: 415908

• Provides automatic inline document folding with the ability to deliver folded output in six different patterns; Half-Fold, Letter Fold-In (Tri-Fold), Letter Fold-Out (Tri-Fold), Gate-Fold, Double Parallel Fold (Four-Fold), and Z-Fold. The Multi-Folding Unit is ideal for companies that want to produce professionally finished documents such as newsletters, brochures, menus, and marketing materials in-house.
• Weight: 208.82 lbs. (92 kg)
• W x D x H (inches): 18.5 x 28.7 x 38.6
• W x D x H (mm): 470 x 729 x 980

Notes:

• One of the following finishers is required to add this option: Finisher SR4120, Finisher SR4080, or Booklet Finisher SR4130.

Trimmer TR5010e

ID: 404299

• Trims off the excess "creep" caused by folding multiple sheets, resulting in a clean flush finish.
• An additional accessory option for the BK5010e Production Bookletmaker.

Notes:

• BK5010e is required to add this option.

2/3 Hole Punch Unit Type 3260

ID: 412209

• Hole Positions: 2 or 3 holes
• Paper Size: 5.5" x 8.5" – 11" x 17"
• Paper Weight: 14 lb. Bond – 90 lb. Index (52 – 163 g/m²)

Notes:

• Compatible with SR4060 (415901) and SR4070 (415902) Finishers. 2 & 3 hole punch (user-selectable).
• Cannot hole punch and Z-fold at the same time.

Booklet Finisher SR4070 (2,000 sheet External)

ID: 415902

• Paper Size: 5.5" x 8.5" – 11" x 17" (A5-A3) SEF
• Paper Weight: 14 lb. Bond – 90 lb. Index (52 – 128 g/m²)
• Stack Capacity: 250 sheets (8.5" x 11" or smaller),50 sheets (8.5" x 14" or larger), 30 sheets (Z-Fold/8.5" x 14" or larger), 20 sheets (Z-Fold/8.5" x 11" or smaller)

Notes:

• System requires a finisher or the copy tray.
• 2,000-sheet finisher with 50-sheet staple capacity and 15-sheet saddle-stitch capacity.

Card Rdr Bracket Type 1075

ID: 411203

Notes:

• Table shaped option used for placing a card reader or counter device on.

Cover Interposer Tray CI4000

ID: 415906

• Paper Size: 5.5" x 8.5" – 11" x 17"
• Paper Weight: 17 lb. Bond – 110 lb. Index (64 – 216 g/m²)
• Paper Capacity: 200 sheets (20 lb. Bond – 75 g/m²)

Notes:

• Main unit cannot be configured with both the Interposer and the Mailbox.

Finisher SR4060 (3,000 Sheet External)

ID: 415901

• Paper Size: 5.5" x 8.5" – 11" x 17" SEF
• Paper Weight: 14 lb. Bond – 90 lb. Index (52-163 g/m²)
• Stack Capacity: 250 sheets (8.5" x 11" or smaller), 50 sheets (8.5" x 14" or larger)

Notes:

• System requires a finisher or the copy tray.
• 3,000-sheet finisher with 50-sheet staple capacity.

LCIT RT4010 (4,000 Sheets)

ID: 415904

• Paper Size: 8.5" x 11"/A4 (LEF)
• Paper Weight: 14 – 34 lb. Bond (52 – 128 g/m²)
• Paper Capacity: 4,000 sheets (20 lb. Bond – 75 g/m²)
• Dimensions (WxDxH): 12.36" x 18.03" x 25.94" (314 x 458 x 659 mm)

Notes:

• 4,000 Sheet capacity LCIT (8 1/2" x 11").

Output Jogger Unit Type 9002A

ID: 415903

Notes:

• Compatible with the SR4060 and SR4070 Finishers. Neatly arranges output.

11" x 17" Tray Unit Type 9001

ID: 415017

• Enables the feeding of 11" x 17"/A3 or 8.5" x 14" paper from standard Tandem Tray 1, which is normally fixed for 8.5" x 11"/A4.
• Paper Capacity up to 1,000 sheets.
• Paper Weights up to 34 lb. Bond/128 g/m².

8 1/2" x 14" Paper Size Tray Type 9002

ID: 416232

• Enables the feeding of 8.5" x 14" paper and 8.5" x 11" SEF paper (2,500 sheets) through the LCIT.
• Paper Weights up to 34 lb. Bond/128 g/m².
• Weight: 18.5 lbs. (8.4 kg)
• W x D x H (inches): 5.83 x 18.03 x 25.94
• W x D x H (mm): 148 x 458 x 659

Notes:

• Requires LCIT RT4040.

Tab Sheet Holder Type 9002

ID: 416230

• Required to feed Tab Sheets from Tray 2 or Tray 3.

ST5010e Two Side Trim Option

ID: 100277FNG

Notes:

• Requires the BK5010e Booklet Maker.
• Requires inclusion of BF5010e, TR5010e and Trim Waste Kit Type BF5010e.

Trim Waste Kit Type BF5010e

ID: 100285FNG

Bluetooth Interface Unit Type D

ID: 415818

• Provides wireless printing at close range.
• The bluetooth option is installed in one of the 2 USB host interface slots.

Notes:

• 1. One open interface board slot is available. Gigabit Ethernet, Wireless LAN, Bluetooth Interface or File Format Converter may be installed.
• 2. Bluetooth Interface Unit Type D cannot be installed with IEEE802.11 a/g Interface Unit Type J, File Format Converter Type E or Gigabit Ethernet Board Type C.

Browser Unit Type J

ID: 416233

Notes:

• Enable users to connect to cloud solutions such as, Document Mall, HotSpot Printing. Requires Printer/Scanner Unit Type 9002 for Copier Basic Models.

Gigabit Ehternet Type B

ID: 414204

Notes:

• Requires Print/Scan Type 90002 (415919) for Copier Basic Configuration. Cannot be installed with the IEEE 802.11a/b/g Wireless Type J (414008).

MAIL BOX CS4000

ID: 415907

• Number of Bins: 9
• Stack Capacity: 100 sheets/bin (20 lb. Bond – 75 g/m²)
• Paper Size: 5.5" x 8.5" – 11" x 17"

Notes:

• Main unit cannot be configured with both the Interposer and the Mailbox.
• Each Z-folded sheet counts as 10 sheets.

PostScript3 Unit Type 9002

ID: 415923

Notes:

• Required for Post Script and Macintosh printing.

Printer/Scanner Unit Type 9002

ID: 415919

Notes:

• Includes 512 MB RAM upgrade. Option for Copier Basic Configuration.

SD card for NetWare printing Type L

ID: 416236

Notes:

• Used for customers who require NetWare printing. Requires Printer/Scanner Unit Type 9002 for Copier Basic Models.

VM Card Type U

ID: 416163

Notes:

• Required for JAVA customization and installation of software solutions.

Embedded HotSpot Option Type S

ID: 415620

• Required to enable HotSpot printing. One year HotSpot printing subscription service.

File Format Converter Type E

ID: 414007

• Required to convert formats and drag to desktop documents stored via Copy or Print mode.

Notes:

• File Format Converter Type E cannot be installed with IEEE1284 Interface Board Type A, IEEE802.11a/g/n Wireless Interface Type M2 or or USB Device Server Option Type M12.

IEEE1284 Interface Board Type A

ID: 411699

• For environments that require Parallel connectivity.
• Allows device connection with legacy computer equipment.

Notes:

• IEEE1284 Interface Board Type A cannot be installed with IEEE802.11a/g/n Wireless Interface Type M2, File Format Converter Type E or USB Device Server Option Type M12.

ADF Handle Type C (While Supplies Last)

ID: 416213

Notes:

• Allows seated user to easily close ARDF.

Copy Data Security Unit Type F

ID: 413985

Notes:

• Prevents unauthorized reproduction of confidential documents.

Data OverwriteSecurity Unit Type H

ID: 416373

• Only required for customers needing ISO 15408 Common Criteria Certification. Standard DOSS is not certified.

ESP-XG-PCS-20D

ID: 006429MIU

• Designed to provide a higher level of noise filtering and surge protection for devices that employ more sensitive and complex electronic components.
• Our Advanced Technical Support (ATS) recommends the use of power protection products to minimize potential electrical interference with products.

External Keyboard Bracket Only

ID: 007111MIU

• Mounting bracket for the External USB Keyboard.

Notes:

• Mounting Bracket only.

External USB Keyboard (No Bracket)

ID: 100266FNG

• External keyboard for inputting data with either SDK applications or embedded applications.

Notes:

• 1. External Keyboard Bracket Type M19 is required for this option.
• 2. External USB Keyboard (No Bracket) cannot be installed with the NFC Card Reader Type M19.

IPDS Unit Type 9002

ID: 415926

Memory Unit Type B 32MB

ID: 001342MIU

• Increases fax memory to 2,240 pages and fax resolution to 400 x 400 dpi.

Notes:

• Fax Option Type M2 is required for this accessory.

Optional Counter I/F Type A

ID: 413012

• Optional 20-Pin Interface used to attach external key counter or key card device.

Type MP 9002 RHD

ID: 007106MIU

Notes:

• RHD kit uses MFP's Internal Hard Drive and make it External
• Fax Option is NOT COMPATIBLE with RHD or ARHD
• ARHD includes an extra hard drive

Type MP9002 ARHD

ID: 007107MIU

Notes:

• RHD kit uses MFP's Internal Hard Drive and make it External
• Fax Option is NOT COMPATIBLE with RHD or ARHD
• ARHD includes an extra hard drive
