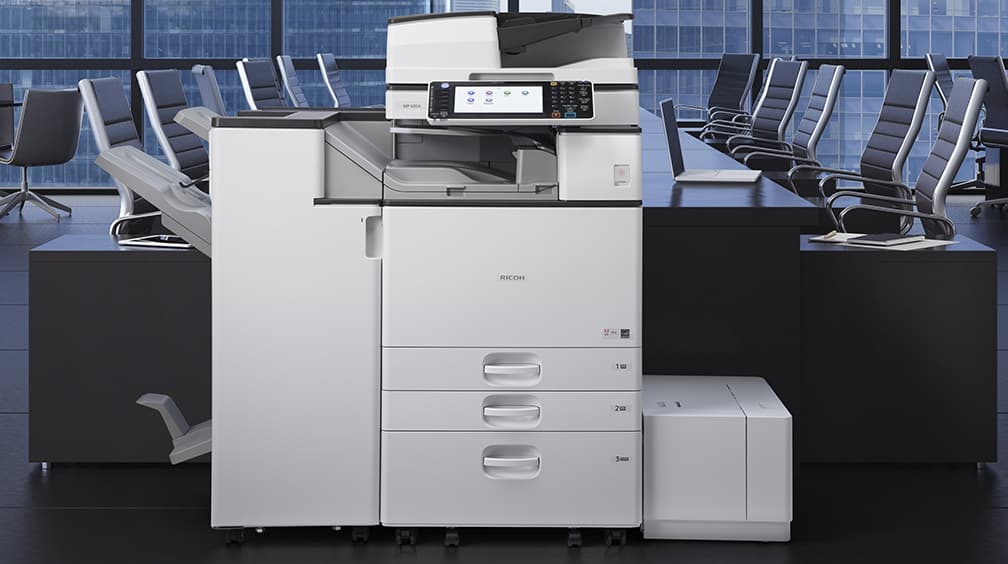

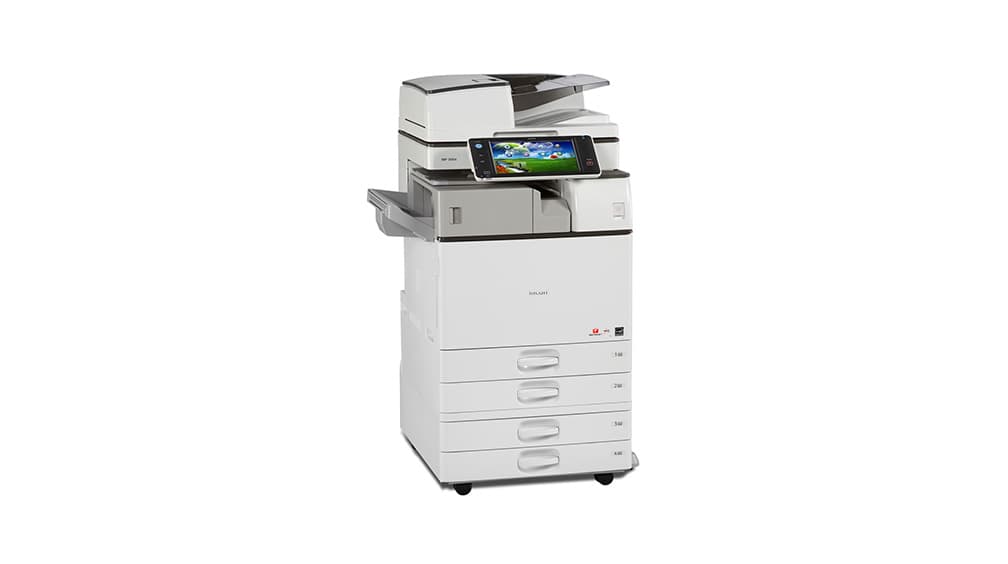

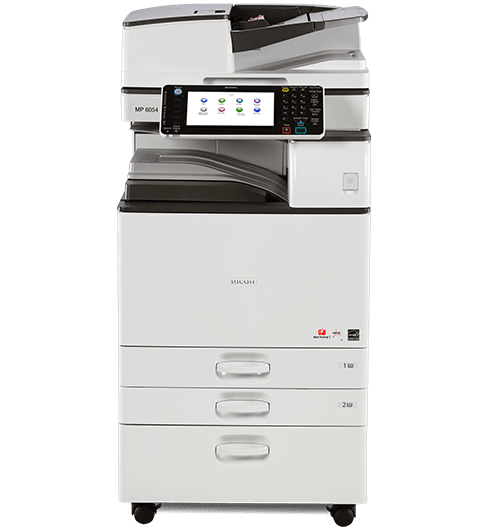

MP 5054

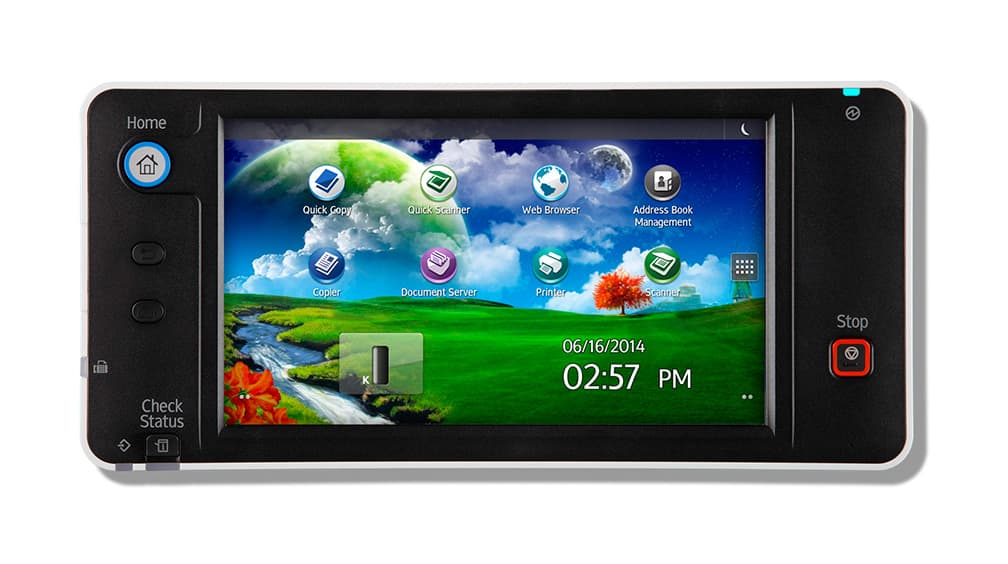

Smart Operation Panel Type M3

ID: 416910

• The 10.1" Wide Super VGA resolution control panel provides intuitive touchscreen control similar to smart phones and tablets. It offers advanced Web browser functionality, drag-and-drop icons and swipe scrolling.

Fax Connection Unit Type M12

ID: 417078

• Enables users to send and receive faxes on a sub MFP via a main MFP. This option is required on both the Main MFP that has the Fax Option Type M12 (417100) installed and on the Sub MFP(s) needing remote fax.

Notes:

• Fax Option Type M12 is required to add this option.

Fax Option Type M12

ID: 417100

• Installation required to enable standard fax features including: 33.6Kbps, approximately 2 Second Transmission Speed, JBIG. 320 Pages Memory. Includes Internet Fax (T.37), LAN Fax, IP-Fax (T.38), Fax Forwarding to Email & Paperless Fax function.

G3 Interface Unit Type M12

ID: 417101

• Up to two additional lines can be installed. For a maximum total of 3 lines.

Notes:

• Fax Option Type M12 is required to add this option.

Memory Unit Type M12 (64MB)

ID: MX417102RA

• Increases fax memory to 2,240 pages and fax resolution to 400 x 400 dpi.

Notes:

• Fax Option Type M12 is required to add this option.

Booklet Finisher SR3150 (1,000 Sheet External)

ID: 416540

• Allows documents to be professionally finished as paginated, saddle-stitched booklets. It provides three destinations for output, and offers optional hole-punching. Ideal for the production of program guides, instruction sheets, newsletters and meeting agendas.
• W x D x H (inches): 22.2 x 24.4 x 37.8
• W x D x H (mm): 564 x 620 x 960

Notes:

• 1. Bridge Unit BU3070 is required to add this option.
• 2. One of the following Paper Feed Units or Cabinet is required to add this finisher: PB3220, PB3230 or Cabinet Type F.
• 3. SR3150 cannot be installed with these options: SH3070, SR3180, SR3130, SR3140 or Punch Unit PU3040NA.

Booklet Finisher SR3170 (2,000 Sheet External)

ID: 416542

• Features Ricoh's own flat-fold function, where the paper is pressed through a second set of rollers, one above and one below, making a crease along the outer spine. The result is a slimmer, flatter saddle-stitched booklet with a professional appearance. In addition to producing paginated, saddle-stitched documents, the SR3170 provides three destinations for output, optional hole-punching and handles paper sizes up to 12" x 18" and paper weights up to 80 lb. Bond/166 lb. Index (300 g/m²).
• W x D x H (inches): 25.9 x 24.1 x 37.8
• W x D x H (mm): 658 x 612 x 960

Notes:

• 1. Bridge Unit BU3070 is required to add this option.
• 2. One of the following Paper Feed Units or Cabinet is required to add this finisher: PB3220, PB3230 or Cabinet Type F.
• 3. SR3160 cannot be installed with these options: SH3070, SR3130, SR3140, SR3150, SR3160, Punch Unit PU3040NA or Punch Unit PU3050NA.

Bridge Unit BU3070

ID: 416551

• A required accessory when the main unit is configured with an external finisher. The Bridge Unit transports pages from the standard exit area into a Finisher for online stapling or hole-punching.

Notes:

• 1. One of the following finishers is required to add this option: SR3140 or SR3150.
• 2. This option cannot be configured with the following internal finishers: SR3130 or SR3180.

Bridge Unit BU3070

ID: 417587

• A required accessory when the main unit is configured with an external finisher. The Bridge Unit transports pages from the standard exit area into a Finisher for online stapling or hole-punching.

Notes:

• One of the following finishers is required to add this option: Finisher SR3210, Finisher SR3230, Booklet Finisher SR3220, or Booklet Finisher SR3240.

Finisher SR3140 (1,000 Sheet External)

ID: 416539

• For offices that produce collated and stapled sets of documents, the SR3140 helps shorten production time. It offers 50-sheet, multi-position stapling, mixed sized stapling, optional hole-punching and shift-sort collating.
• W x D x H (inches): 22.2 x 24.4 x 37.8
• W x D x H (mm): 564 x 620 x 960

Notes:

• 1. Bridge Unit BU3070 is required to add this option.
• 2. One of the following Paper Feed Units or Cabinet is required to add this finisher: PB3220, PB3230 or Cabinet Type F.
• 3. SR3140 cannot be installed with these options: SH3070, SR3180, SR3130, SR3150 or Punch Unit PU3040NA.

Finisher SR3160 (3,000 Sheet External)

ID: 416541

• Ideal for businesses that customarily have longer runs and create stapled or hole punched documents, the 3,000-Sheet Finisher handles paper sizes up to 12" x 18" and paper weights up to 80 lb. Bond/166 lb. Index (300 g/m²). It offers 50-sheet multi-position stapling, mixed sized stapling, optional hole-punching and shift-sort collating.
• W x D x H (inches): 25.9 x 24.1 x 37.8
• W x D x H (mm): 658 x 612 x 960

Notes:

• 1. Bridge Unit BU3070 is required to add this option.
• 2. One of the following Paper Feed Units or Cabinet is required to add this finisher: PB3220, PB3230 or Cabinet Type F.
• 3. SR3160 cannot be installed with these options: SH3070, SR3130, SR3140, SR3150, SR3170, Punch Unit PU3040NA or Punch Unit PU3050NA.

Internal Finisher SR3130

ID: 417589

• 500-sheet Internal Finisher provides multi-position stapling and optional hole-punching.
• Recommended for offices with limited floor space.
• Supports Paper Sizes up to 12" x 18".
• Weight: 28.2 lbs. (12.8 kg)
• W × D × H (inches): 21.5 × 20.6 × 6.7
• W × D × H (mm): 546 × 523 × 170

Notes:

• Internal Finisher SR3130 cannot be installed with MP C6004ex, MP C6004ex TE, Internal Shift Tray SH3070, Internal Finisher SR3180, Finisher SR3210, Finisher SR3230, Booklet Finisher SR3220, Booklet Finisher SR3240, or any related options.

Internal Shift Tray SH3070

ID: 416550

• The Internal Shift Tray enables the system to output copies as sets in sequential order. Each time the copies of one set or a job are delivered, the next copy is shifted to separate each set or job.
• Holds 250 sheets of 8.5" x 11" /A4 or smaller and holds 125 sheets of 8.5" x 14" or larger.
• Supports Paper Sizes up to 12" x 18".
• Weight: 3.1 lbs. (1.4 kg)
• W x D x H (inches): 16.5 x 19.3 x 4.2
• W x D x H (mm): 419 x 490 x 107

Notes:

• Internal Shift Tray SH3070 cannot be installed with Internal Finisher SR3130, Finisher SR3210, Finisher SR3230, Booklet Finisher SR3220, Booklet Finisher SR3240, or any related options.

One-Bin Tray BN3110

ID: 416552

• Provides an additional output tray above the standard Internal Tray or optional Bridge Unit/Internal Shift Tray/Internal Finisher.
• Holds 125 sheets.
• Allows user to separate print/fax output from copy.
• Supports paper sizes up to 11"" x 17"".
• Weight: 3.1 lbs. (1.4 kg)
• W × D × H (inches): 17.5 × 17.7 × 5.9
• W × D × H (mm): 445 × 450 × 150

One-Bin Tray BN3110

ID: 417585

• Provides an additional output tray above the standard Internal Tray or optional Bridge Unit/Internal Shift Tray/Internal Finisher.
• Holds 125 sheets.
• Allows user to separate print/fax output from copy.
• Supports paper sizes up to 11" x 17".
• Weight: 3.1 lbs. (1.4 kg)
• W × D × H (inches): 17.5 × 17.7 × 5.9
• W × D × H (mm): 445 × 450 × 150

Punch Unit PU3040 NA

ID: 416615

• Optional hole punching for the Internal Finisher SR3130.
• Supports Paper Sizes up to 11" x 17".

Notes:

• 1. SR3130 is required to add this option.
• 2. Punch Unit PU3040 NA cannot be installed with the Finisher SR3210, Finisher SR3230, Booklet Finisher SR3220, or Booklet Finisher SR3240.

Punch Unit PU3050 NA

ID: 416609

• Optional hole punching for the Finisher SR3210 or Booklet Finisher SR3220.
• Supports Paper Sizes up to 11" x 17".

Notes:

• 1. Finisher SR3210 or Booklet Finisher SR3220 is required to for this option.
• 2. Punch Unit PU3050NA cannot be installed with the Internal Finisher SR3130 or Internal Finisher SR3180.

Punch Unit PU3060

ID: 416612

• Optional hole punching unit for Finisher SR3230, Booklet Finisher SR3240, Finisher SR4120 or Booklet Finisher SR4130.

Notes:

• 1. One of the following finishers is required to add this option: Finisher SR3230, Booklet Finisher SR3240, Finisher SR4120 or Booklet Finisher SR4130.
• 2. This option cannot be installed with Finisher SR4080.

Cabinet Type F

ID: 100478FNG

• Provides businesses with a convenient option for the storage of supplies and paper.
• Can only be configured with the standard configuration.
• Weight: 32.3 lbs. (14.7 kg)
• W x D x H (inches): 23.1 x 26.7 x 10
• W x D x H (mm): 587 x 678 x 254

Notes:

• Cabinet Type F cannot be installed with any Paper Feed Unit.

Caster Table Type M3

ID: 416737

• The caster table must be added to the configuration when the PB3250 Paper Feed Unit is selected. It provides a platform with wheels to easily move the device.

Notes:

• 1. Paper Feed Unit PB3250 is required for this option.
• 2. Caster Table Type M3 can only be installed with Paper Feed Unit PB3250.

LCIT RT3030

ID: 416548

• Provides an additional 1,500 sheets.
• Paper Sizes up to 8.5" x 11"/A4.
• Paper Weights up to 80 lb. Bond/166 lb. Index (300 g/m²).
• Weight: 21.6 lbs. (9.8 kg)
• W x D x H (inches): 13.4 x 21.4 x 11.4
• W x D x H (mm): 340 x 544 x 290

Notes:

• 1. LCIT RT3030 cannot be installed with any of these Paper Bank options: Paper Feed Unit PB3250, Caster Table Type M3, or Cabinet Type F.
• 2. LCIT RT3030 must be configured with either the Paper Feed Unit PB3240 or PB3260.

Paper Feed LCIT PB3230

ID: 417270

• Provides an additional 2,000 sheets.
• Paper Sizes up to 8.5" x 11"/A4.
• Paper Weights up to 80 lb. Bond/166 lb. Index (300 g/m²).
• Weight: 48.5 lbs. (22 kg)
• W x D x H (inches): 23.1 x 27 x 9.7
• W x D x H (mm): 587 x 686 x 246

Notes:

• Paper Feed LCIT PB3230 cannot be installed with Paper Feed Unit PB3150, Caster Table Type M3, Paper Feed Unit PB3160, Paper Feed Unit PB3240, Cabinet Type F, or any related options.

Paper Feed Unit PB3150

ID: 416545

• Raises the height of the base unit to an ideal level, making it easy for all users to access the device (Section 508).
• Provides an additional 550 sheets.
• Paper Sizes up to 12" x 18".
• Paper Weights up to 80 lb. Bond/166 lb. Index (300g/m²).
• Weight: 24 lbs. (10.9 kg)
• W x D x H (inches): 23.1 x 27 x 4.7
• W x D x H (mm): 587 x 686 x 119

Notes:

• 1. Caster Table Type M3 is required for this option.
• 2. Paper Feed Unit PB3150 cannot be installed with Paper Feed Unit PB3220, Cabinet Type F, Booklet Finisher SR3220, or any related options.

Paper Feed Unit PB3220

ID: 417268

• Provides an additional 1,100 sheets.
• Paper Sizes up to 12" x 18".
• Paper Weights up to 80 lb. Bond/166 lb. Index (300 g/m²).
• Weight: 48.5 lbs. (22 kg)
• W x D x H (inches): 23.1 x 27 x 9.7
• W x D x H (mm): 587 x 686 x 246

Notes:

• Paper Feed Unit PB3220 cannot be installed with Paper Feed Unit PB3250, Caster Table Type M3, or Cabinet Type F.

Browser Unit Type M12

ID: 417080

• Web based applications, such as ICE and HotSpot require Browser capability which is standard on devices configured with the Smart Operation Panel. This option is required when ICE and/or HotSpot are configured with the Standard Operation Panel.

Notes:

• Browser Unit Type M12 cannot be installed with Smart Operation Panel Type M3.

Embedded HotSpot Option Type S

ID: 415620

• Required to enable HotSpot printing. One year HotSpot printing subscription service.

File Format Converter Type E

ID: 414007

• Required to convert formats and drag to desktop documents stored via Copy or Print mode.

Notes:

• File Format Converter Type E cannot be installed with IEEE1284 Interface Board Type A, IEEE802.11a/g/n Wireless Interface Type M2 or or USB Device Server Option Type M12.

IEEE1284 Interface Board Type A

ID: 411699

• For environments that require Parallel connectivity.
• Allows device connection with legacy computer equipment.

Notes:

• IEEE1284 Interface Board Type A cannot be installed with IEEE802.11a/g/n Wireless Interface Type M2, File Format Converter Type E or USB Device Server Option Type M12.

IEEE802.11a/g/n Wireless Interface Type M2

ID: 416572

• This option allows you to connect the device wirelessly to the LAN.

Notes:

• IEEE802.11a/g/n Wireless Interface Type M2 cannot be installed with IEEE1284 Interface Board Type A, File Format Converter Type E or USB Device Server Option Type M12.

IPDS Unit Type M12

ID: 417082

• Intelligent Printer Data Stream (IPDS). As a "genuine" IPDS solution built on original IBM source code, our IPDS option provides more accurate interpretation of IPDS data. That means less errors and faster file processing than emulations. Plus, as an IBM partner your customers can be assured of fast problem resolution and timely upgrades.
• This option will not be available until May 2015.

OCR Unit Type M2

ID: 416605

• This function embeds invisible texts on scanned images of PDF and enables users to search PDF files by arbitrary keywords. Searchable PDF files can be sent to email, folders and external media (SD/USB).

PostScript3 Unit Type M12

ID: 417079

• Required for Macintosh and PostScript printing environments. Recommended for printing more complex and PDF files.

SD Card for NetWare Printing Type M12

ID: 417081

• Used by customers who print using Netware. This option is required for the following functions: Use of iPrint ports, SNMP via IPX and Scan to NCP (IPX, TCP/IP).

USB Device Server Option Type M12A

ID: 418111

• This option can hold an additional IP address, which then enables our MFPs to connect to two different network environments.

Notes:

• USB Device Server Option Type M12A cannot be installed with IEEE1284 Interface Board Type A, IEEE802.11a/g/n Wireless Interface Type M2 or File Format Converter Type E.

XPS Direct Print Option Type M12

ID: 417083

• This option allows Networked users to print XPS/OXPS format documents from a connected Windows PC without using a printer driver. It also enables walk-up users to print XPS/OXPS files stored on portable media by inserting a USB flash drive or SD card into the ports integrated into the control panel.

Card Reader Bracket Type 3352

ID: 415814

• Table shaped option used to place either card reader or counter device. USB Connector.

Copy Data Security Unit Type G

ID: 416391

• Prevents unauthorized copying of confidential documents.

Data Overwrite Security Unit Type I

ID: 416372

• This is an ISO 15408 Certified version of DOSS that overwrites Copy, Print, Scanner, and Fax latent data. Mainframe is targeted to be ISO 15408 certified in January 2016.

ESP XG-PCS-15D Power Filter

ID: 006428MIU

• The ESP XG-PCS-15D power filter provides multi-stage power protection as well as line conditioning. Our Advanced Technical Support (ATS) recommends the use of Power Protection products to minimize potential electrical interference with products.

Notes:

• ESP XG-PCS-15D Power Filter cannot be installed with the ESP S1 Power Filter.

External Keyboard Bracket Type M3

ID: 416909

• This bracket is required for the installation of an External USB Keyboard.

Notes:

• 1. External USB Keyboard (No Bracket) is required to add this option.
• 2. External Keyboard Bracket Type M3 cannot be installed with the Smart Card Reader Built-in Unit Type M29.

External USB Keyboard (No Bracket)

ID: 100266FNG

• External keyboard for inputting data with either SDK applications or embedded applications.

Notes:

• 1. External Keyboard Bracket Type M19 is required for this option.
• 2. External USB Keyboard (No Bracket) cannot be installed with the NFC Card Reader Type M19.

Key Counter Bracket Type M3

ID: 416869

• 4-Pin interface used to mount external key counter to MFP.

Optional Counter Interface Unit Type M12

ID: 417111

• 20-Pin interface used to attach external key counter or key card device.

SCR3310 v2 USB Smart Card Reader

ID: 005269MIU

• Card Reader only. No cards are provided. Used with Common Access Card (CAC)/Personal Identity Verification (PIV) Authentication Solution.

Notes:

• SCR3310 v2 USB Smart Card Reader cannot be installed with NFC Card Reader Type M29.

Smart Card Reader Built-in Unit Type M12

ID: 417129

• For use with 3rd party card readers like RFIdeas PCProx readers on our price list. The card reader and its cable would not be visible when this option is used. If using another type card reader be sure reader dimensions do not exceed 63.5mm x 106mm x 22mm in size.

Notes:

• This option cannot be installed with the External Keyboard Bracket Type M3.

Type MP 2554 Additional Removable Hard Drive (ARHD)

ID: MXARHDMP2554RA

• The ARHD includes an extra hard drive.

Notes:

• 1. Type MP 2554 Removable Hard Drive (RHD) is required to add this option.
• 2. Type MP 2554 Additional Removable Hard Drive (ARHD) cannot be installed with Fax Option Type M12, Fax Connection Unit Type M12, G3 Interface Unit Type M12 and 64MB Memory Unit Type M12.

Type MP 2554 Removable Hard Drive (RHD)

ID: MXRHDMP2554RA

• The RHD kit uses the MFP's internal hard drive and makes it external.

Notes:

• Type MP 2554 Removable Hard Drive (RHD) cannot be installed with Fax Option Type M12, Fax Connection Unit Type M12, G3 Interface Unit Type M12 and 64MB Memory Unit Type M12.
