Product Specifications
Ink & Toner
| Configuration | Desktop |
|---|---|
| Printing Process | Laser beam scanning, electro-photographic printing |

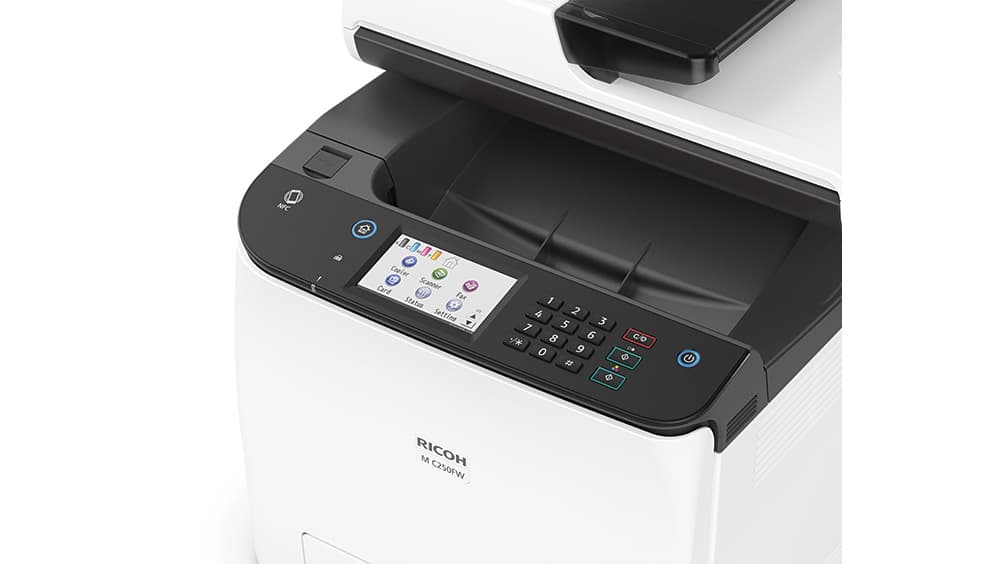

| Control Panel | 4.3" color touch panel |
| Color/Black & White | Color |
| Output Speed Copy/Print | 25 ppm (A4) 26 ppm (Letter) |
| First Page Out Time | Color: 9.8 seconds/B&W: 9.4 seconds |
| Warm-Up Time | 20 seconds |
| Recovery Time From Sleep Mode | 12 seconds |
| Resolution | 2,400 x 600 dpi |
| System Memory | 256 MB |
| Maximum Copy Quantity | Up to 99 copies |
| Duplexing | Automatic (Standard) |
| Document Feeder Type | Single Pass Document Feeder (SPDF) |
| Single Pass Document Feeder (SPDF) | 50 sheets |
| Zoom Range | 25% to 400% in 1% increments |
| Supported Paper Sizes | Standard paper tray: A4, A5, A6, B4, B5, Legal, Letter, HLT Bypass tray: A4, A5, A6, B5, B6, Legal, Letter, HLT |
| Supported Paper Weights | Standard tray: 60 – 163 g/m² Optional tray: 60 – 105 g/m² Bypass: 60 – 163 g/m² Duplex: 60 – 90 g/m² |
| Supported Paper Types | Standard tray: Plain 1/2, Recycled, Middle Thick, Thick 1/2, Thin, Color, Letterhead, Preprinted, Prepunched, Labels, Bond, Cardstock, Envelope Bypass tray: Plain 1/2, Recycled, Middle Thick, Thick 1/2, Thin, Color, Letterhead, Preprinted, Prepunched, Labels, Bond, Cardstock, Envelope Optional paper tray: Plain 1/2, Recycled, Middle Thick, Thin paper, Thick paper, Color, Letterhead, Preprinted, Prepunched |
| Standard Paper Capacity | 251 sheets |
| Maximum Paper Capacity | 751 sheets |
| Standard Output Capacity | 150 sheets |
| Duty Cycle | 65000 |
| Power Source | 120V - 127V, 60Hz |
| Typical Electricity Consumption (TEC) | 0.324 kWh/week TEC value is measured based on the ENERGY STAR Ver.3.0 test method. |
| Power Consumption | Maximum: Less than 1,300W Operation B&W: 428 W Operation Color: 469 W Ready: 34.5 W Sleep: 0.7 W |
| Energy Star | Certified |
| EPEAT Status | Silver |
| Dimensions W x D x H | 16.5" x 19.4" x 18.6" (420 mm x 493 mm x 473 mm) |
| Weight | 66.1 lbs. (30 kg) |
Paper Feed Unit TK1220
ID: 407890
- Provides an additional 500 sheets.
- Paper tray fixed to 8.5" x 11" and supports paper weights up to 28 lb. Bond.
- Weight: 8.8 lbs. (4 kg)
- W x D x H (inches): 15.7 x 17.7 x 5
- W x D x H (mm): 400 x 450 x 127
