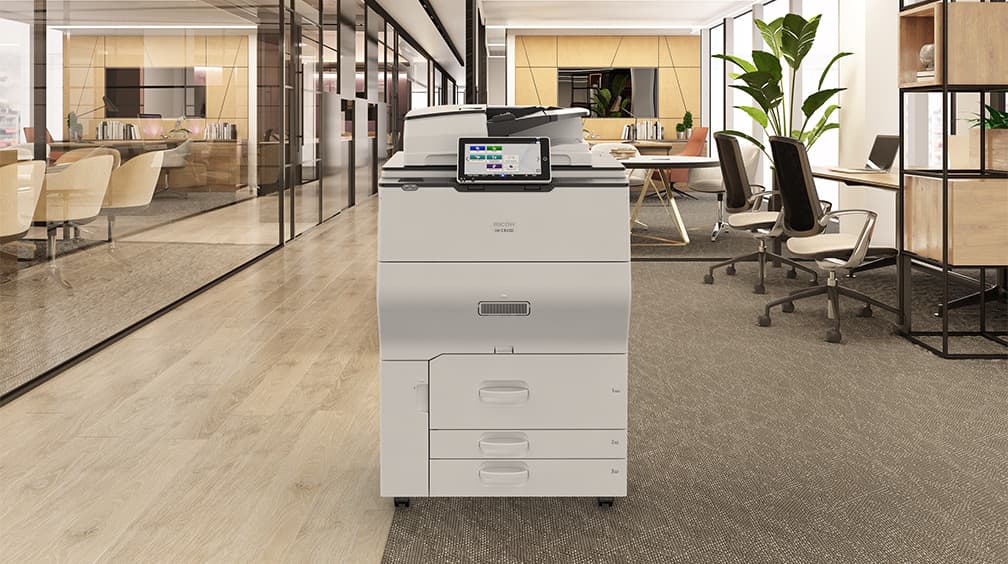

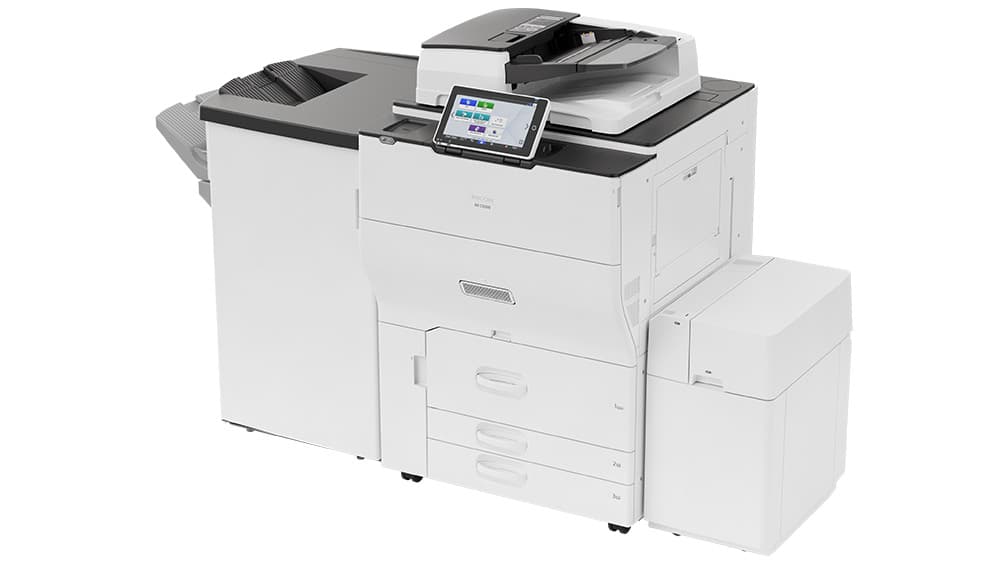

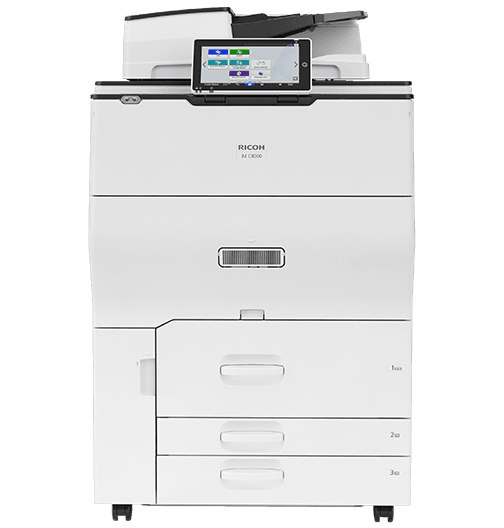

IM C8000

Fax Option Type M42

ID: 418209

• Installation required to enable fax services: 33.6Kbps, approximately 2 Second Transmission Speed, Standard JBIG. Standard 320 Pages Memory. Includes standard Internet Fax (T.37), LAN Fax, IP-Fax (T.38), Fax Forwarding to Email & Paperless Fax function.

Memory Unit Type M26 64 MB

ID: 417695

• Memory expansion, which provides additional 64 MB memory for fascimile functions.

Notes:

• Fax Option Type M42 must be selected to add this option.

Booklet Finisher SR4160

ID: 423952

• The 2,000-sheet Booklet Finisher allows thick documents to be professionally finished as paginated, duplexed, saddle-stitched folded booklets.
• Up to 20 sheets can be saddle-stitched.
• It also offers 65-sheet, multi-position stapling, mixed sized stapling, optional hole-punching and shift-sort collating.
• Weight: 127.9 lbs. (58 kg)
• W x D x H (inches): 25.87 x 28.74 x 38.59
• W x D x H (mm): 657 x 730 x 980

Notes:

• Booklet Finisher SR4160 cannot be installed with Copy Tray Type 9002, Finisher SR4150 or any related options.

Cooling Fan Unit Type M26

ID: 417677

• Prevents paper bricking.
• Optional cooling fan for Finisher SR4120 and Booklet Finisher SR4130.

Notes:

• This option cannot be installed with Finisher SR4110.

Copy Tray Type M42

ID: 418184

• The 500-sheet Copy Tray is the system's most basic exit tray for printed or copied output. Select the Copy Tray if you do not require advanced finishing including stapling, hole punching, folding or booklet making.
• When configured with this option, output is delivered face down in a neat stack.
• Weight: 4.85 lbs. (2.2 kg)
• W x D x H (inches): 13.78 x 20.2 x 7.56
• W x D x H (mm): 350 x 513 x 192

Notes:

• Copy Tray Type M42 cannot be installed with Cover Interposer Tray CI4050, Multi-Fold Unit FD4010, Multi-Fold Unit FD4020, Finisher SR4150, Finisher SR4140, Booklet Finisher SR4160, Mail Box CS4010 or any related options.

Cover Interposer Tray CI4050

ID: 418189

• Compatible with Finisher SR4140 only.
• Dual Cover Interposer that allows pre-printed covers and inserts to be easily fed into the finishing workflow at the touch of a button. This option eliminates the need for time-consuming off-line manual insertion and reduces the wear and tear on originals.
• Weight: 99.21 lbs. (45 kg)
• W x D x H (inches): 19.69 x 28.74 x 50
• W x D x H (mm): 500 x 730 x 1,270

Notes:

• 1. Finisher SR4140 must be selected to add this option.
• 2. Cover Interposer Tray CI4050 cannot be installed with Multi-Fold Unit FD4010, Copy Tray Type M42, Finisher SR4150, Booklet Finisher SR4160 or any related options.

Finisher SR4140

ID: 418183

• This 3,000-sheet Finisher is ideal for offices that produce collated and stapled sets of documents. It offers 100-sheet, multi-position stapling, mixed sized stapling, optional hole-punching and shift‑sort collating.
• Weight: 169.8 lbs. (77 kg)
• W x D x H (inches): 31.73 x 28.74 x 38.58
• W x D x H (mm): 806 x 730 x 980

Notes:

• Finisher SR4140 cannot be installed with Copy Tray Type M42, Finisher SR4150, Booklet Finisher SR4160, Mail Box CS4010 or any related options.

Finisher SR4150

ID: 423951

• This 3,000-sheet Finisher is ideal for offices that produce collated and stapled sets of documents. It offers 65-sheet, multi-position stapling, mixed sized stapling, optional hole-punching and shift-sort collating.
• Weight: 83.8 lbs. (38 kg)
• W x D x H (inches): 25.87 x 28.74 x 38.58
• W x D x H (mm): 657 x 730 x 980

Notes:

• Finisher SR4150 cannot be installed with Copy Tray Type 9002, Booklet Finisher SR4160 or any related options.

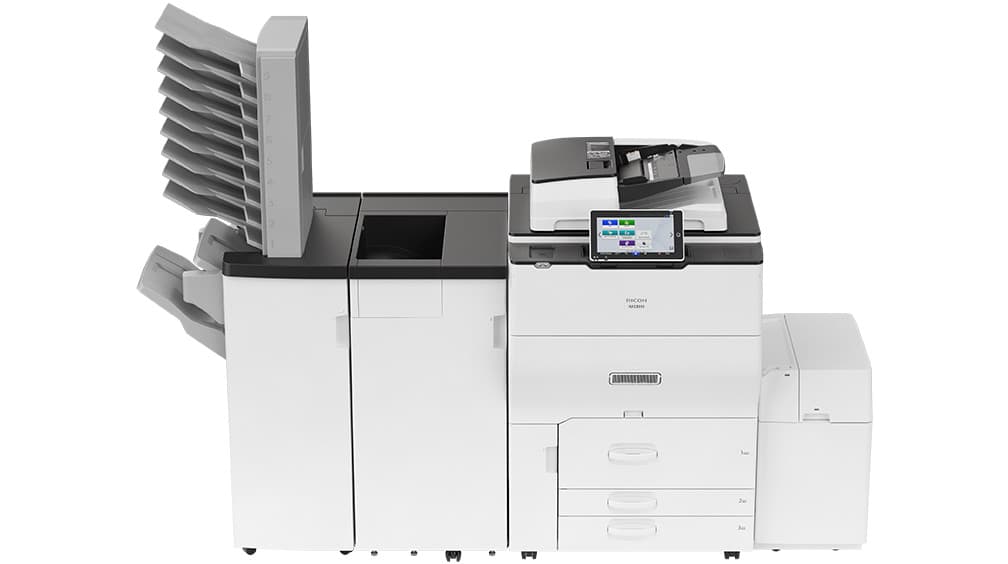

Mail Box CS4010

ID: 416633

• The 9-Bin Mailbox offers workgroups the ability to separate and stack document output to designated bins directly from the print driver. This option helps keep workflows streamlined and organized.
• Weight: 33 lbs. (15 kg)
• W x D x H (inches): 21.26 x 23.62 x 25.98
• W x D x H (mm): 540 x 600 x 660

Notes:

• 1. One of the following finishers is required: SR4150 or Booklet Finisher SR4160.
• 2. Mail Box CS4010 cannot be installed with Copy Tray Type 9002

Multi-Fold Unit FD4010

ID: 418187

• Provides automatic inline document folding with the ability to deliver folded output in four different patterns; Z‑Fold, Half‑Fold, Letter Fold‑In (Tri‑Fold) and Letter Fold-Out (Tri‑Fold). The Multi-Folding Unit is ideal for companies that want to produce professionally finished documents such as newsletters, brochures, menus and marketing materials in-house.
• Power Requirements: 120V, 60Hz, 15A
• Weight: 99.21 lbs. (45 kg)
• W x D x H (inches): 8.23 x 28.74 x 38.58
• W x D x H (mm): 209 x 730 x 980

Notes:

• 1. Finisher SR4150, Finisher SR4140 or Booklet Finisher SR4160 must be selected to add this option.
• 2. Multi-Fold Unit FD4010 cannot be installed with Cover Interposer Tray CI4050, Multi-Fold Unit FD4020, Copy Tray Type M42 or any related options.

Multi-Fold Unit FD4020

ID: 418185

• Provides automatic inline document folding with the ability to deliver folded output in six different patterns; Half-Fold, Letter Fold‑In (Tri-Fold), Letter Fold-Out (Tri-Fold), Gate-Fold, Double Parallel Fold (Four-Fold) and Z-Fold. The Multi-Folding Unit is ideal for companies that want to produce professionally finished documents such as newsletters, brochures, menus and marketing materials in-house.
• Power Requirements: 120V, 60Hz, 15A
• Weight: 202.82 lbs. (92 kg)
• W x D x H (inches): 18.5 x 27.74 x 38.58
• W x D x H (mm): 470 x 705 x 980

Notes:

• 1. Finisher SR4150 or Booklet Finisher SR4160 must be selected to add this option.
• 2. Multi-Fold Unit FD4020 cannot be installed with Copy Tray Type 9002 or any related options.

Output Jogger Unit Type M25

ID: 417630

• Aligns and stacks output delivered to Finisher SR4150 or Booklet Finisher SR4160.

Punch Unit PU5050 NA

ID: 418201

• Optional 2/3 hole punching unit for Finisher SR4140.

Notes:

• 1. Finisher SR4140 must be selected to add this option.
• 2. Punch Unit PU5050 NA cannot be installed with Finisher SR4150, Booklet Finisher SR4160 or any related options.

Punch Unit PU3090 NA

ID: 418332

• Optional hole punching for the Finisher SR3280.
• Supports paper sizes up to 11" x 17".

11" x 17"/A3 Tray Unit Type M26

ID: 417883

• Enables the feeding of 11" x 17"/A3 paper from standard Tandem Tray 1, which is normally fixed for 8.5" x 11"/A4.
• Paper Capacity up to 1,000 sheets.
• Paper Weights up to 68 lb. Bond/256 g/m².

LCIT RT4060

ID: 418190

• Provides an additional 4,000 sheets.
• Paper sizes up to 8.5" x 11"/A4.
• Paper weights up to 58 lb. Bond/216 g/m2.
• Weight: 47.0 lbs. (21.3 kg)
• W x D x H (inches): 13.86 x 21.26 x 24.61
• W x D x H (mm): 352 x 540 x 625

Notes:

• LCIT RT4060 cannot be installed with LCIT RT4070.

LCIT RT4070

ID: 418204

• Provides an additional 2,200 sheets.
• Paper sizes up to 13" x 19.2".
• Paper weights up to 80 lb. Bond/300g/m2.
• Weight: 183.0 lbs. (83 kg)
• W x D x H (inches): 34.2 x 28.74 x 25.9
• W x D x H (mm): 869 x 730 x 658

Notes:

• LCIT RT4070 cannot be installed with LCIT RT4060.

Tab Sheet Holder Type M2

ID: 416642

• Allows users to set up and print on tabs to separate chapters within the document, eliminating the manual collation of document sets.
• Can be used in either Tray 2 or Tray 3, but not both.

Small Paper Feeding Unit Type M37

ID: 418367

• Optional insert for the Single Pass Document Feeder facilitates scanning small documents in sizes from 3.0" x 4.1" to 5.8" x 8.5".

IPDS Unit Type M42

ID: 418198

• For use in AS/400 environments.
• As a genuine Intelligent Printer Data Stream (IPDS) solution built on original IBM source code, our IPDS option provides more accurate interpretation of IPDS data. That means less errors and faster file processing than emulations. Plus, as an IBM partner your customers can be assured of fast problem resolution and timely upgrades.

PostScript3 Unit Type M42

ID: 418192

• Genuine Adobe® PostScript®3™. Recommended for printing more complex color and PDF files.
• The IM C6500 and IM C8000 come with standard PostScript3 and PDF Direct Print Emulation. This option is available for customers who require True Adobe® workflows like Photoshop®, Illustrator® and PDF/X as well as additional font support. When enabled on the MFP, the standard PostScript3 Emulation will be disabled.

IEEE 802.11a/g/n Interface Unit Type M19

ID: 417493

• This option allows you to connect the device to an IEEE 802.11 a/b/g/n wireless LAN.

OCR Unit Type M13

ID: 417430

• This function embeds invisible text on scanned images of PDF and enables users to search PDF files by arbitrary keywords. Searchable PDF files can be sent to email, folders, and external media (USB/SD Card).

Page Keeper Type M37

ID: 418368

• A multi-feed detection sensor that automatically stops a scanning job if more than one page is fed through the SPDF.
• Ideal for environments that rely on scanning workflows and often scan mixed sized originals.

VM Card Type M37

ID: 418410

• ONLY required to support any embedded software app that is developed on SDK-J (i.e. Java).

Notes:

• 1. Memory Unit Type M37 4GB must be selected to add this option.
• 2. If the embedded software app is developed on the SmartSDK (i.e. full-native Android), then the VM Card option and Memory options are NOT required.

Optional Counter Interface Unit Type M12

ID: 417111

• 20-Pin interface used to attach external key counter or key card device.

Smart Card Reader Built-in Unit Type M19

ID: 417595

• For use with Ricoh & third party software solutions. The smart card reader and its cable will be covered inside the mainframe when this option is attached. Not all card readers may be supported.

Notes:

• Fax Option Type M44 must be selected to add this option.
