An intelligent device that supports your business
Optimize workflows to stay ahead

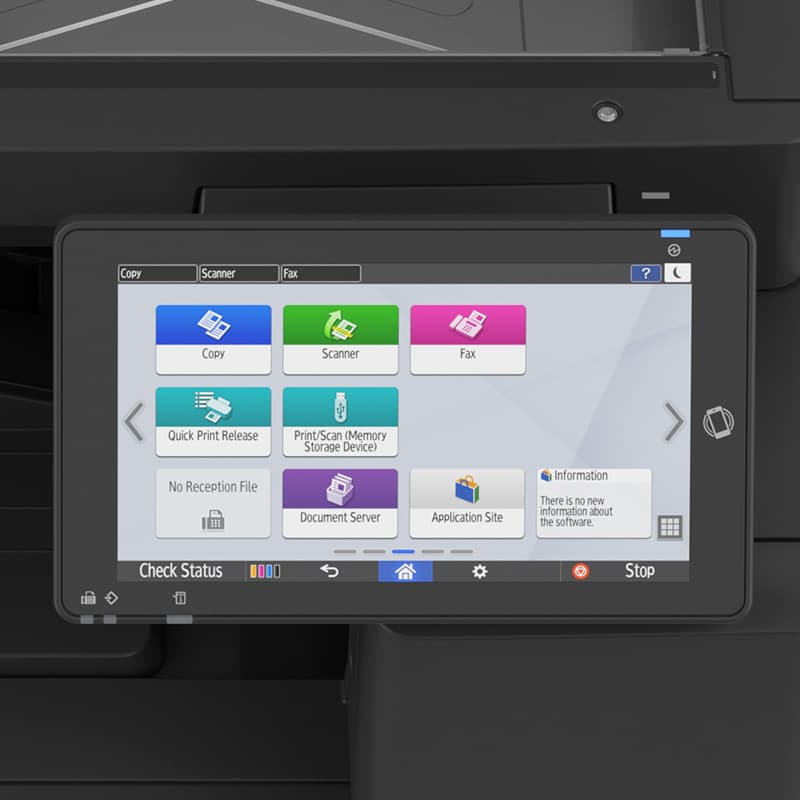

Experience a familiar and intuitive interface
Collaborate digitally to get more done
Configure the system to meet your precise needs

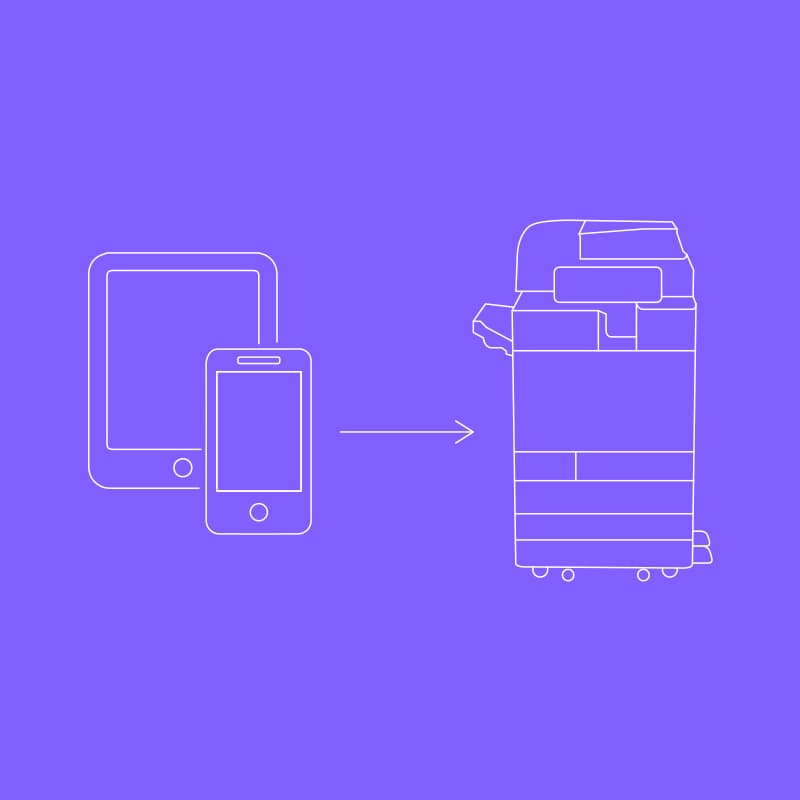

Mobile technology for on-the-go workstyles
Intelligent support for intelligent workflows
Unrivaled security to protect your greatest assets
Powerfully green
Need more information?
Configuration | Console |
---|---|
Printing Process | 4-Drum Method |
Control Panel | 10.1" Smart Operation Panel |
Color/Black & White | Color |
Output Speed Copy/Print | 60 ppm B&W & FC (LTR) |
First Page Out Time | 2.4 seconds B&W 3.8 seconds Color |
Warm-Up Time | 24 seconds |
Resolution | 600 dpi |
System Memory | 4 GB RAM Mainframe + 4 GB RAM Panel/256 GB SSD |
Maximum Copy Quantity | Up to 999 copies |
Duplexing | Automatic (Standard) |
Document Feeder Type | Single Pass Document Feeder (SPDF) |
Single Pass Document Feeder (SPDF) | Original Capacity: 220 sheets Original Size: 2" x 3.5" - 11.7" x 17" (A6-A3, B8-B4) Paper Weight: Simplex/Duplex: 38 – 220 g/m2 (A6 or larger); 64 – 220g/m2 (smaller than A6) (need to be updated) |
Zoom Range | 25% - 400% in 1% increments |
Supported Paper Sizes | 1st Paper Tray: 8.5" x 11" (A4) 2nd Paper Tray: 5.5" x 8" - 12" x 18" (A6-A3, B4-B6), Envelopes Bypass: Up to 12" x 18", Envelopes Custom Sizes: Width: 3.5" - 12.6" (90 - 320 mm), Length: 5.8" - 49.6" (148 - 1260 mm) |
Supported Paper Weights | Standard Trays: 16 - 80 lb./166 lb. Index (60 - 300 g/m2) Bypass Tray: 14 - 80 lb./166 lb. Index (52 - 300 g/m2) Duplex Unit: 14 - 45lb./142 lb. Index (52 - 169 g/m2) |
Supported Paper Types | Plain, Recycled, Special, Colored, Letterhead, Cardstock, Pre-printed, Coated, Envelope, Label, Gloss |
Standard Paper Capacity | 1,200 sheets (2 x 550 sheets + 100-Sheet Bypass Tray) |
Maximum Paper Capacity | 4,700 sheets (w/Tandem LCT + Side LCT) |
Standard Output Capacity | 500 sheets 8.5" x 11" (A4) or smaller; 250 sheets (B4) or larger |
Maximum Output Capacity | 3,625 sheets |
Maximum Monthly Volume | 50000 |
Power Source | 120V - 127V, 60Hz |
Typical Electricity Consumption (TEC) | 0.69 kWh/week TEC value is measured based on the ENERGY STAR Ver.3.0 test method. |
Power Consumption | Less than 1,584 W; Sleep Mode: 0.3W |
EPEAT Status | Gold |
Dimensions W x D x H | 23.0" x 27.0" x 37.9" (587 mm x 685 mm x 963 mm) |
Weight | 222.2 lbs/100.8 kg |
Color Controller E-26C
ID: 419419
- Optional Fiery® color controller that can be configured with the standard Print/Scan controller for embedded scan features and Fiery print. Includes connector.
Notes:
- Color Controller E-26C cannot be installed with IEEE 802.11 a/b/g/n/ac Wireless Interface Unit Type M52, PostScript3 Unit Type M52, Optional Counter Interface Unit Type M12 or Unicode Font Package for SAP® 1 License.
Fax Memory Unit Type M52
ID: 419430
- Increases fax memory to 4,800 pages and fax resolution to 400 x 400 dpi.
Notes:
- Fax Option Type M52 must be selected to add this option.
Fax Option Type M52
ID: 419423
- Installation required to enable fax services: 33.6 kbps, approximately 3 second transmission speed, standard JBIG and standard 320-Page Memory. Includes standard Internet Fax (T.37), LAN Fax, IP-Fax (T.38), Fax Forwarding to Email and Paperless Fax function.
G3 Interface Unit Type M52
ID: 419427
- Required to add an additional fax line. Up to two units can be installed.
Notes:
- Fax Option Type M52 must be selected to add this option.
Auto Trap Type FS-100
ID: 404602
- Provides a fast and simple way to ensure that your image output is optimized.
Notes:
- Color Controller E-25C is required to add this option.
EFI Compose Digital
ID: 3000013504-PS1
- Provides intuitive tools that make advanced document preparation simple and quick.
Notes:
- Color Controller E-25C is required to add this option.
EFI CPS V5.X ES-3000 1 year Digital
ID: 3000013158
- Contains Color Profiler software and ES-3000 spectrophotometer: Includes 1 year of phone support.
Notes:
- Color Controller E-25C is required to add this option.
EFI ES-3000
ID: 45202146
- Color measurement device for calibration and profiling. Enables fast, precise, and flexible color management that produces the highest color quality.
Notes:
- Color Controller E-25C is required to add this option.
EFI Impose Digital
ID: 3000013503-PS1
- Helps to automate and streamline labor-intensive prepress tasks.
Notes:
- Color Controller E-25C is required to add this option.
EFI Productivity Pack for Fiery
ID: 007183MIU
- Aids in workflow productivity - helps meet tight turnaround times and to produce top notch color documents while achieving process automation.
Notes:
- Color Controller E-25C is required to add this option.
Hot Folders Type FS-100
ID: 404600
- Fiery option that enables the creation of special folders that can assign a group of print options.
Notes:
- Color Controller E-25C is required to add this option.
Spot On Type FS100
ID: 404601
- Enables you to reproduce custom or spot colors.
Notes:
- Color Controller E-25C is required to add this option.
1 Bin Tray BN3140
ID: 419383
- Provides an additional output tray above the standard Internal Tray, optional Internal Finisher, optional Multi-Fold Unit, optional Internal Shift Tray or optional Bridge Unit.
- Holds 125 sheets.
- Allows user to separate print and fax output from copy.
- Supports paper sizes up to 12.6" x 17.7".
- Weight: 3.1 lbs. (1.4 kg)
- W × D × H (inches): 17.5 × 17.7 × 5.9
- W × D × H (mm): 445 × 450 × 150
Booklet Finisher SR3330 (1,000 Sheet)
ID: 419397
- 1,000-sheet Booklet Finisher.
- Allows documents to be professionally finished as paginated, saddle-stitched booklets. It provides three destinations for output and offers optional hole punching. Ideal for the production of program guides, instruction sheets, newsletters and meeting agendas.
- Supports paper sizes up to 12" x 18".
- Weight: 95.9 lbs. (43.5 kg)
- W × D × H (inches): 22.6 × 24.4 × 37.8
- W × D × H (mm): 574 × 620 × 960
Notes:
- 1. Bridge Unit BU3100 or Internal Multi-Fold Unit FD3020 must be installed to add this option.
- 2. Booklet Finisher SR3330 cannot be installed with Internal Shift Tray SH3090, Internal Finisher SR3310 or any related options.
Bridge Unit BU3100
ID: 419381
- A required accessory when the main unit is configured with an external finisher. The Bridge Unit transports pages from the standard exit area into a Finisher for inline stapling or hole punching.
Notes:
- 1. Booklet Finisher SR3330 must be selected to add this option.
- 2. Bridge Unit BU3100 cannot be installed with Internal Finisher SR3310, Internal Multi-Fold Unit FD3020, Internal Shift Tray SH3090 or any related options.
Finisher SR3320 (1,000 sheet)
ID: 419399
- 1,000-sheet Finisher.
- For offices that produce collated and stapled sets of documents, this finisher helps shorten production time. It offers 50-sheet, multi-position stapling, mixed sized stapling, optional hole punching and shift-sort collating, as well as a staple-less binding capability of up to 5 sheets.
- Supports paper sizes up to 12" x 18".
- Weight: 75 lbs. (34 kg)
- W × D × H (inches): 22.6 × 25.2 × 37.8
- W × D × H (mm): 574 × 640 × 960
Notes:
- 1. Bridge Unit BU3100 or Internal Multi-Fold Unit FD3020 must be installed to add this option.
- 2. Finisher SR3320 cannot be installed with Internal Shift Tray SH3090, Internal Finisher SR3310, Booklet Finisher SR3330 or any related options.
Finisher SR3340 (3,000 sheet)
ID: 419392
- 3,000-sheet Finisher.
- For offices that produce collated and stapled sets of documents, this finisher helps shorten production time. It offers 65-sheet, multi-position stapling, mixed sized stapling, optional hole punching and shift-sort collating.
- Supports paper sizes up to 12" x 18".
- Weight: 83.8 lbs. (38 kg)
- W × D × H (inches): 25.6 × 26.4 × 37.8
- W × D × H (mm): 650 × 671 × 960
Notes:
- 1. Bridge Unit BU3100 or Internal Multi-Fold Unit FD3020 must be installed to add this option.
- 2. Finisher SR3340 cannot be installed with Internal Shift Tray SH3090, Internal Finisher SR3310, Finisher SR3320, Booklet Finisher SR3330 or any related options.
Internal Multi-Fold Unit FD3020
ID: 419409
- Allows for the creation of professionally designed finished documents such as newsletters, brochures and sales and marketing materials. Folding patterns include Z-Fold, Half-Fold and Tri-Fold. The unit can tri-fold up to 3 letter-sized sheets at a time.
- This option can be added to the configuration with or without an external finisher. No Bridge Unit is required.
- Paper sizes up to 12" x 18".
- Weight: 35.3 lbs. (16 kg)
- W × D × H (inches): 24.1 × 21.9 × 7.2
- W × D × H (mm): 612 × 556 × 183
Notes:
- 1. This option or Bridge Unit BU3100 must be installed when adding Booklet Finisher SR3330.
- 2. Internal Multi-Fold Unit FD3020 cannot be installed with Internal Finisher SR3310, Internal Shift Tray SH3090, Bridge Unit BU3100 or any related options.
Internal Shift Tray SH3090
ID: 419385
- The Internal Shift Tray enables the system to output copies as sets in sequential order. Each time the copies of one set or a job are delivered, the next copy is shifted to separate each set or job.
- Holds 250 sheets of 8.5" 11"/A4 or smaller and holds 125 sheets of 8.5" x 14" or larger.
- Supports paper sizes up to 12" x 18".
- Weight: 3.1 lbs. (1.3 kg)
- W × D × H (inches): 16.5 × 19.3 × 4.2
- W × D × H (mm): 419 × 490 × 107
Notes:
- Internal Shift Tray SH3090 cannot be installed with Internal Finisher SR3310, Internal Multi-Fold Unit FD3020, Bridge Unit BU3100, Booklet Finisher SR3330 or any related options.
Punch Unit PU3080 NA
ID: 418381
- Optional hole punching for the Finisher SR3260, Booklet Finisher SR3270, Finisher SR3320, and Booklet Finisher SR3330.
- Supports paper sizes up to 11" x 17".
Punch Unit PU3110 NA
ID: 419438
- Optional hole punching for Finisher SR3340.
- Supports paper sizes up to 11" x 17".
Notes:
- Finisher SR3340 must be selected to add this option.
Cabinet Type A5
ID: 52721
- Provides a convenient option for the storage of supplies and paper.
- Can only be configured with the standard configuration.
- Weight: 29.0 lbs. (13.2 kg)
- W × D × H (inches): 23.1 × 27 × 9.7
- W × D × H (mm): 587 × 686 × 246
Notes:
- Cabinet Type A5 cannot be installed with Paper Feed Unit PB3340.
LCIT PB3330
ID: 419374
- Provides an additional 2,000 sheets.
- Paper sizes up to 8.5" x 11"/A4.
- Paper weights up to 80 lb./166 lb. Index (300 g/m2).
- Weight: 50.7 lbs. (23 kg)
- W × D × H (inches): 23.1 × 27 × 9.7
- W × D × H (mm): 587 × 686 × 246
Notes:
- LCIT PB3330 cannot be installed with Paper Feed Unit PB3320 or Cabinet Type A5.
LCIT RT3050
ID: 419378
- A side large capacity tray that provides an additional 1,500 sheets.
- Supports paper sizes of 8.5" x 11"/A4 only.
- Paper weights up to 80 lb./166 lb. Index (300 g/m2).
- Weight: 23.1 lbs. (10.5 kg)
- W × D × H (inches): 13.4 × 21.4 × 11.4
- W × D × H (mm): 340 × 544 × 290
Notes:
- 1. Paper Feed Unit PB3320 or LCIT PB3330 must be selected to add this option.
- 2. LCIT RT3050 cannot be installed with Cabinet Type A5.
Paper Feed Unit PB3320
ID: 419365
- Provides an additional 1,100 sheets.
- Paper sizes from 5.5" x 8.5" to 12" x 18".
- Paper weights up to 80 lb./166 lb. Index (300 g/m2).
- Weight: 50.7 lbs. (23 kg)
- W × D × H (inches): 23.1 × 27 × 9.7
- W × D × H (mm): 587 × 686 × 246
Notes:
- Paper Feed Unit PB3320 cannot be installed with LCIT PB3330 or Cabinet Type A5.
IEEE 802.11 a/b/g/n/ac Wireless Interface Unit Type M52
ID: 423571
- Allows device to connect to the network over WiFi. Useful for temporary sites and locations where cabling is impractical.
OCR Unit Type M52
ID: 419445
- This function embeds invisible texts on scanned images of PDFs and enables users to search PDF files by arbitrary keywords. Searchable PDF files can be sent to email, folders and external media (USB). Supports blank page removal when scanning.
PostScript3 Unit Type M52
ID: 419416
- Genuine Adobe® PostScript®3™. Recommended for printing more complex color and PDF files.
- The main unit comes with standard PostScript3 Emulation and PDF Direct Print Emulation. This option is available for customers who require True Adobe® workflows like Photoshop®, Illustrator® and PDF/X as well as additional font support. When enabled on the MFP, the standard PostScript3 Emulation and PDF Direct Emulation will be disabled.
Card Reader Cover Type M52
ID: 419413
- For use with Ricoh and 3rd party software solutions. The Card Reader Cover attaches to the right-hand side of the Smart Operation Panel.
- A card reader is not included. Not all card readers may be supported.
Enhanced Security SSD Option Type M52 256GB
ID: 419436
- An optional FIPS 140-2 validated 256 GB Solid State Drive. This option will replace the standard 256 GB Solid State Drive when added to the configuration.
Notes:
- Enhanced Security SSD Option Type M52 256 GB cannot be installed with HDD Option Type M52 320 GB.
HDD Option Type M52 320 GB
ID: 419435
- Optional 320 GB Hard Disk Drive required to enable DOSS and IEEE 2600.1 certification. This option will replace the standard 256 GB Solid State Drive when added to the configuration.
Notes:
- HDD Option Type M52 320 GB cannot be installed with Enhanced Security SSD Option Type M52 256 GB.
Optional Counter Interface Unit Type M12
ID: 417111
- 20-Pin interface used to attach external key counter or key card device.
Power Filter with Inrush, Surge and Noise Protection 120V/15A
ID: W1500-15-120
- Designed to provide a higher level of noise filtering and surge protection for devices that employ more sensitive and complex electronic components.
- Our Advanced Technical Support (ATS) recommends the use of power protection products to minimize potential electrical interference with products.
