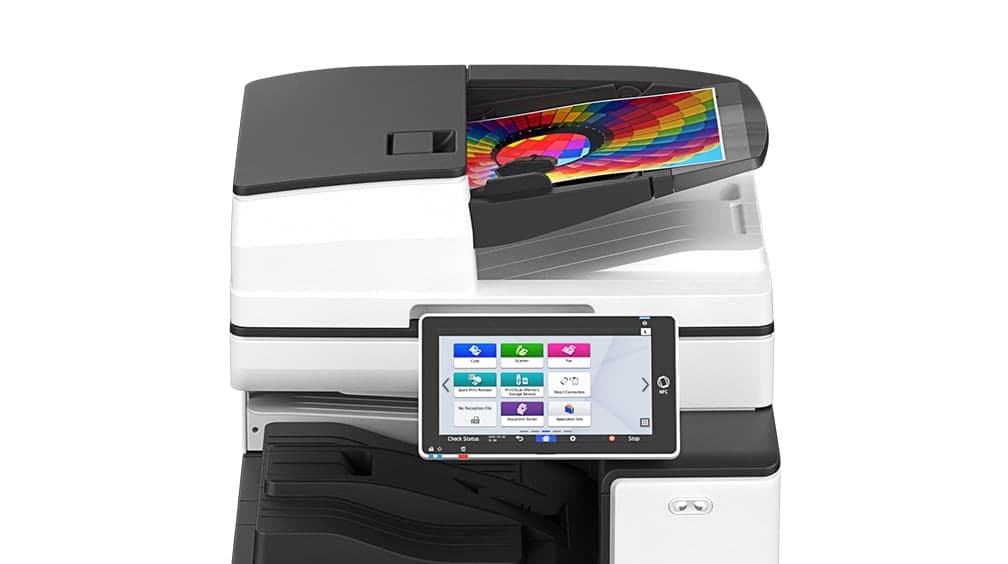

IM C4500

Color Laser Multifunction Printer

ID: 418309

Upgrade your workflows with speed and new technologies

  •   Prints up to 45 ppm, copy, scan, optional fax
  •   1200x1200 dpi max print resolution
  •   Paper capacity up to 4,700 pages
  •   Expand high-speed capabilities with responsive control and convenient apps
Call for a Quote: 866-230-2723
8am-5pm CT M-F

Upgrade to a higher level of performance

Showcase the scalable intelligence of the RICOH IM C4500 Color Laser Multifunction Printer (MFP) and share more information with incredible speed, precision and reliability. Built on RICOH Always Current Technology (ACT) platform, the device can be updated quickly with new features, enhancements and online services to simplify and expedite print, copy, scan and fax tasks.

Download optimization on demand

Discover a smarter way to share ideas faster. With the RICOH Always Current Technology platform, you can update the device with new software, cloud services, online apps and more. Download a variety of features as soon as they're released to keep the MFP up to date and optimized. Best of all, you can do it in moments right from the Smart Operation Panel without technical assistance.

Digitize messages to energize workflows

Scan documents at up to 240 images per minute (ipm) using the Single-Pass Document Feeder (SPDF). Share them instantly with Scan-to capabilities or send directly to cloud services such as Dropbox and SharePoint . With the optional Double Feed Detection Unit, you can ensure all originals were scanned. Use the optional Small Paper Feeding Unit for digitizing tickets, checks and other documents.

Make a lasting impression

Captivate audiences with professional-grade output produced at a fast 45 pages per minute (ppm). With continuous recalibration and an optional Fiery® E-25C Color Controller, you can create exceptional, economical reproductions with precise text and vivid colors. Choose from many finishing options, including an internal Multi-Folding Unit and a Hybrid Stapleless + Stapler Finisher.

Respond with information faster

Redesigned with the familiarity you want, and the precise touch you need, the Android-based 10.1" Smart Operation Panel offers an intuitive and responsive user experience. Check settings, add widgets, toggle between tasks and more with incredible speed. Preview documents before printing. Use Full View mode to see copier settings on one screen and the web browser to access optional cloud services. Experience Ricoh's intuitive, user-friendly Smart Operation Panel with the Smart Operation Panel Simulator.

Connect with RICOH Intelligent Support*

Help is easy to find. Download our How-to Videos app for quick guidance and resolutions. Watch a video directly from the Home Screen for toner replacement instructions. With RemoteConnect Support, you can share access to your Smart Operation Panel and get expert advice from our technicians. Or, perform device management in-house using the Remote Panel Operation tool.
*When enabled, internet connection required.
infovisual-support-MFP

Stay productive on the run

Download the RICOH Smart Device Connector App to your personal mobile device for remote printing without drivers, utilities or software. Access information in the cloud and print it from the MFP, even emails with images or PDF attachments. Share files with Ricoh projectors and interactive flat panel displays to enhance collaborative efforts.

Take everything and everyone into account

With user authentication, you can hold printed output until an authorized user releases the job with a passcode or optional card reader. An embedded Near Field Communications (NFC) tag lets users authenticate and print from an Android® mobile device. Restrict access to specific functions such as color prints. Use RICOH Device Manager NX Accounting to issue chargebacks to users or departments.
infovisual-SOP-passcode

Put energy to good use

Enjoy powerful performance using less energy. With its built-in motion sensor, the Smart Operation Panel powers up within one second when touched. Default duplex printing cuts paper usage and the default Auto Off Timer reduces energy consumption when the device is inactive. Plus, it's ENERGY STAR certified and offers low Typical Electricity Consumption.

Need more information?

Learn more about the RICOH IM C4500 Color Laser Multifunction Printer and how it may fit your business.

Engine/General Specifications

Resolution

600 dpi

Dimensions W x D x H

23.0" x 27.0" x 37.9" (587 mm x 685 mm x 963 mm)

Weight

223.5 lbs/101.4 kg

Maximum Monthly Volume

50000

EPEAT status

Gold

Power Consumption

Less than 1,584 W; Sleep Mode: 0.59W

Supported Paper Weights

Standard Trays: 16 - 80 lb. Bond/166 lb. Index (60 - 300 g/m2)
Bypass Tray: 14 - 80 lb. Bond/166 lb. Index (52 - 300 g/m2)
Duplex Unit: 14 -68 lb. Bond/142 lb. Index (52 - 256 g/m2)

Power Source

120V - 127V, 60Hz

Duplexing

Automatic (Standard)

Color / Black & White

Color

Control Panel

10.1" Smart Operation Panel

Maximum Copy Quantity

Up to 999 copies

Typical Electricity Consumption (TEC)

0.512 kWh/week
TEC value is measured based on the ENERGY STAR Ver.3.0 test method.

Standard Output Capacity

500 sheets 8.5" x 11" (A4) or smaller; 250 sheets (B4) or larger

Configuration

Console

Printing Process

4-Drum Method

Supported Paper Sizes

1st Paper Tray: 8.5" x 11" (A4)
2nd Paper Tray: 5.5" x 8.5" - 12" x 18" (SRA3, A3-A6, B4-B6), Envelopes
Bypass: Up to 12" x 18", Envelopes
Custom Sizes: Width: 3.5" - 12.6" (90 - 320 mm), Length: 5.8" - 49.6" (148 - 1260 mm)

System Memory

2 GB RAM/320 GB HDD Standard & 4 GB RAM/320 GB HDD Option

Maximum Output Capacity

3,625 sheets

First Page Out Time

3.6 seconds B&W
5.4 seconds Color

Supported Paper Types

Plain, Recycled, Special, Colored, Letterhead, Cardstock, Pre-printed, Bond, Coated, Envelope, Label, OHP, Gloss

Output Speed Copy/Print

45 ppm B&W & FC (LTR)

Maximum Paper Capacity

4,700 sheets (w/Tandem LCT + Side LCT)

Standard Paper Capacity

1,200 sheets (2 x 550 sheets + 100-Sheet Bypass Tray)

Document Feeder Type

Single Pass Document Feeder (SPDF)

Zoom Range

25% - 400% in 1% increments

Printer Specifications

Interfaces

Standard: Ethernet 10 base-T/100 base-TX/1000 base-T, USB Host I/F Type A, USB Device I/F Type B
Option: Wireless LAN (IEEE 802.11a/b/g/n), Additional NIC (2nd port)

Font Support

Standard: PCL: 45 Roman fonts + 13 International fonts
PostScript®3 Emulation: 80 Roman fonts + 13 International fonts
Optional: Genuine Adobe® PostScript®3: 136 Roman fonts

Device Management Utilities

Device Manager NX Series, Web Image Monitor, @Remote

Security Features

DataOverwriteSecurity System (DOSS), HDD Encryption, User Codes, SNMP v3 Support, Encryption, Locked Print, User Authentication, 802.1x Wired Authentication, Quota Setting/Account Limit, Digitally Signed PDF, and more

Printer Languages

Standard: PCL5c, PCL6, PostScript®3 Emulation, PDF Direct Print Emulation
Optional: Genuine Adobe® PostScript®3, Adobe® PDF Direct Print

Network Protocol

TCP/IP (IPv4, IPv6)

Processor Speed

Intel Apollo Lake 1.6 GHz

Mobile Printing Support

Apple AirPrint™, Mopria, Google Cloud Print, NFC, Ricoh Smart Device Connector

Supported Operating Systems

Windows® V7/8.1/10/Server 2008/Server 2008R2/ Server2012/ Server2012R2/Server 2016; Unix: Sun Solaris, HP-UX, SCO OpenServer, RedHat Linux, IBM AIX, Mac OS X v.10.11 or later, SAP R/3, SAP S/4, IBM iSeries AS/400-using OS/400 Host Print Transform

Print Resolution

Up to 1200 x 1200 dpi

Scanner Specifications

Scan Modes

E-mail, Folder, USB, SD Card

Scan Speed BW Full Color

120 ipm (simplex)/240 ipm (duplex)

File Formats

Single Page: TIFF, JPEG, PDF, PDF/A, High Compression PDF, encryption PDF, OCR*
Multi Page: TIFF, PDF (Default), PDF/A, High Compression PDF, encryption PDF, OCR*

Scanning Resolution

Up to 1200 dpi



*Requires optional OCR Unit Type M13

Scan Area

11.7" x 17" (297 - 432 mm)

Fax Specifications

Type

ITU-T (CCITT) G3

Compression Method

MH, MR, MMR, JBIG

Group Dials

100 Group Dial numbers

Max Auto Dials

2,000 Quick/Speed Dial numbers

Circuit

PSTN, PBX

Scanning Speed

81 spm (A4/LT LEF Image Rotation)

Transmission Speed

2 seconds (200 x 100 dpi, JBIG, ITUT #1 chart TTI off, memory transmission)

Modem Speed

33.6 Kbps

Fax Resolution

Standard: 8 x 3.85 line/mm, 200 x 100 dpi
Optional: 16 x 15.4 line/mm, 400 x 400 dpi

Memory

Standard: 4 MB (approx. 320 pages)
Optional: 60 MB (approx. 4,800 pages) with optional SAF memory

Document Server Specifications

Maximum Page Capacity

9000

Maximum Pages/Document

2000

Max Number of Folders

200
