Dare to overachieve
Need to print large amounts of duplicate pages? The Ricoh DD 6650P Digital Duplicator is a versatile, high-speed digital duplicating machine for modest daily tasks or serious production runs. Produce compelling content at 60 to 135 pages per minute (ppm) with offset-like image quality. Engineered to be overworked but not overpriced, the user-friendly DD 6650P digital duplicator offers the durability of up to 4,000-sheets per master-template, plus a monthly print volume of up to 250,000 pages.
Apply superior color imaging
Use Ricoh's proprietary imaging system to produce competitive output at true 600 x 600 dpi resolution. Evenly distributed fast-drying ink produces single-color page printing with clean edges, without offset or bleeding. Use it to handle your choice of single colors without compromising efficiency or your budget.
Explore more media choices
Start your production runs backed by a 1,000-sheet standard paper capacity, and achieve fewer interruptions for a consistent workflow. The DD 6650P digital duplicator is equipped with an innovative paper clamping system for accurate ink registration, and produces smooth half tones and sharp fine lines for superior output. Print on a variety of media including envelopes, vellum, and NCR in weights from 12.5 lb. Bond to 110 lb. Index - at sizes up to 11" x 17".
Get the same production with less energy
Enjoy a host of convenient features that reduces energy consumption without compromising performance. Reduce your operating costs with the energy-saving sleep mode to cut power costs, and activate the Automatic Shut-Off mode to deactivate the device when it's not in use. Plus, because the digital duplication process doesn't require heat, you can produce sharp images with excellent contrast while still conserving energy.
Put the user first

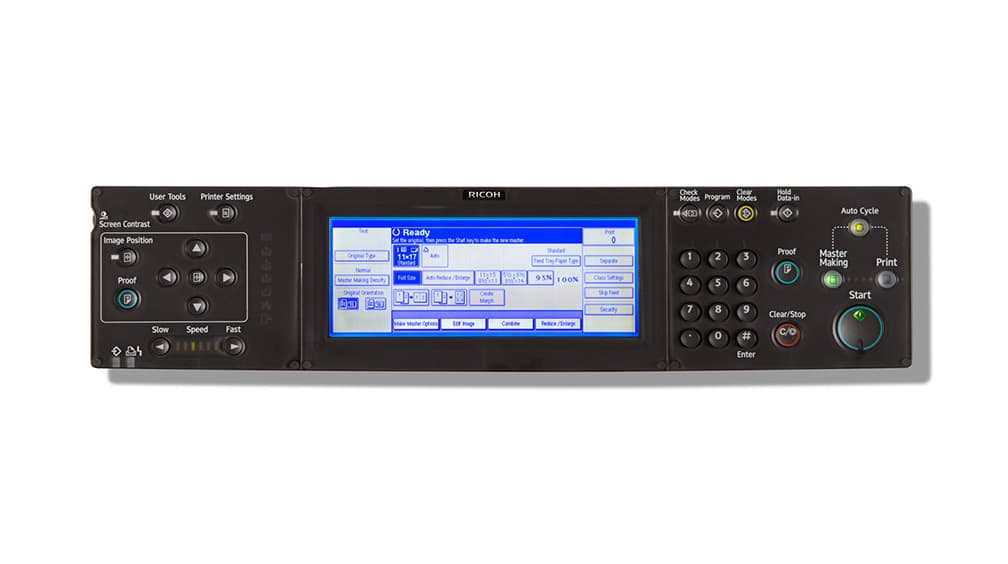

Take advantage of an easy-to-use touch screen for exceptional control of primary operating functions. Easily communicate commands using the control panel's large LED-backlit keys, so walk-up users can effortlessly navigate print and copy jobs. Utilize intuitive prompts, graphics and more to check your system status. Plus, use a one-button control for printing and master-making to expedite tasks and minimize input errors.
Grant access only to the right people
With lock print features, you can help prevent unauthorized users from adjusting your specific settings or accessing your information. You can also verify users, administer access controls and restrict print access with passwords. Need to accommodate a large staff? Create unique user authentication codes for up to 200 individuals.
Manage the machine your way
With the DD 6650 digital duplicator, you get flexible connectivity and management options. Connect easily to standalone computers or a network, and print from more sources using the built-in Refined Print Command Stream™ (RPCS) controller and the optional Adobe® PostScript® 3™. Additionally, the RICOH @Remote™, Web Image Monitor and SmartDeviceMonitor utilities provide fast, easy desktop administration to quickly get your print run moving.
Need more information?
Learn more about the RICOH DD 6650P Digital Duplicator and how it may fit your business.
Configuration | Desktop |
---|---|
Interactive Touch-Screen | Yes |
Printing Process | Fully Automatic One Drum Press Cylinder System (Standard Black Drum included) |
Printing Speed | 60 - 135 sheets/min. (6 steps) |
Image Modes | Letter, Photo, Letter/Photo Auto Separation, Tint, Pencil |
Supported Paper Sizes | 2.8" x 5.9" to 12.8" x 17.6" (70 x 148 mm to 325 x 447 mm) |
Supported Paper Weights | 12.5 - 55.6 lbs (47 - 209 g/m2) |
Image Position | Horizontal: +/- 10 mm (by 0.25 mm) Vertical: +/- 10 mm (by 0.25 mm) |
First Print Time | (A4) 18 seconds (Platen) |
Default Time to Sleep | 1 minute |
Recovery Time From Sleep Mode | 22 seconds |
Print Resolution | 600 x 600 dpi |
Reproduction Ratio | 50, 65, 74, 77, 85, 93, 121, 129, 155, 200% |
Paper Feed/Delivery Capacity | 1,000 sheets (20 lb.) |
Master Roll Capacity | (A3) 200 sheets per roll |
Master Run Length | 4000 |
Master Eject Box Capacity | Approx. 100 masters |
Master Feed Capacity A3 | 200 masters |
Power Source | 120V, 60Hz |
Power Consumption | Master Making/Printing: Up to 280w (135 ppm) Standby: Less than 45.7w Energy Saving Mode (Sleep): 5.4w |
Typical Energy Consumption (TEC) | 2.44 kWh/week |
Energy Saver Mode | Standard/0W Auto Shut-Off |
Dimensions W x D x H | (WxDxH) Set up (with platen): 55.9" x 28.7" x 23.9" (1,420 x 730 x 608 mm) Set up (with ADF): 55.9" x 28.7" x 31.5" (1,420 x 730 x 801 mm) Stored (with platen): 29.5" x 28.7" x 23.9" (750 x 730 x 608 mm) Stored (with ADF): 29.5" x 28.7" x 31.5" (750 x 730 x 801 mm) |
Weight | (Mainframe) 230 lbs./104.5 kg |
Special Features | User Codes (200); Image Combine (2 in 1, 4 in 1); Repeat Print (2/4/8/16 in 1 and custom); Overlay; Double-feed Detection; Quality Start |
Duty Cycle | 600,000 prints |
PM Interval | 1,200,000 prints (or 12 months) |
Single color one pass | |
Color Inks Available | Black, Red, Blue, Brown, Green, Gray, Purple, Yellow, Navy, Maroon, Teal, Orange, Hunter Green, Burgundy,Gold, Reflex Blue, Violet |
Print Area max | (max.) 11.4" x 16.6" (more than 290 x 422 mm) Original Size Platen: Max. 11.7" x 17.0" (297 x 432 mm) ADF: 5.8" x 8.3" to 11.7" x 17.0" (148 x 210 mm to 297 x 432 mm) |
Original Type | Book, Sheet |
Zoom | 50 - 200% (by 1%) |
Paper Clamper | Standard |
Job Separation | Standard |
Security Mode | Drum Lock, Print Lock, Master Box Lock |
Program Mode | Yes (10 programs) |
Skip Feed | Standard (max. 9 revolutions) |
Auto Density Control | Standard |
Print Density Control | Standard (4 levels) |
Auto Color Drum Detection | Standard |
Controller | (Standard) |
CPU | 300 MHz |
RAM | 128 MB |
Network Operating Systems | Windows: XP/Server2003/Vista/Server2008/7/Server2008R2 (32/64 bit) Mac OSX: v10.4 - 10.8 |
Supported Languages | Standard:RPCS, PJL Optional: Adobe PostScript 3, Adobe PDF |
