| Master Processing | Digital |
|---|---|

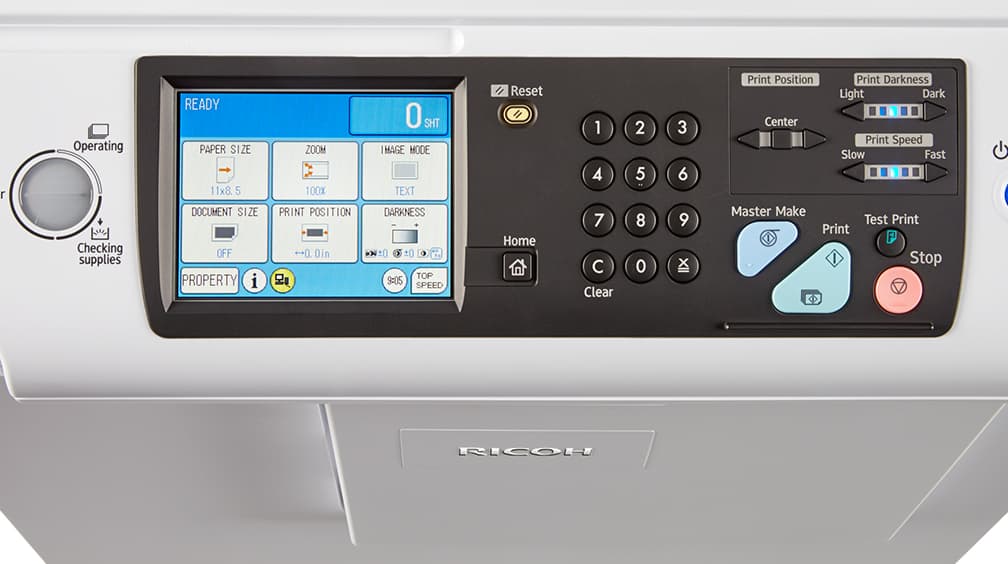

| Operation Panel | 5.7" QVGA Color Touch Panel |
| Printing Process | Press Roller System, Full Automatic One Drum System |
| Printing Speed | 45 - 130 sheets per minute (A4) 5 Levels Top Speed 150 ppm |
| Image Modes | Text, Photo, Text/Photo, Pencil, Screen (two types) |
| Pixel Density | Master Making: 300 dpi x 600 dpi Scanning: 300 dpi x 600 dpi |
| Original Size | Platen: Maximum - 11.7" x 17.0" (297 mm x 432 mm) Document Feeder: 3.9" x 5.8" to 11.7" x 17.0" (100 mm x 148 mm to 297 mm x 432 mm) |
| Supported Paper Sizes | Maximum: 12.6" x 18" (320 mm x 450 mm) Minimum: 3.95" x 5.5" (100 mm x 148 mm) |
| Supported Paper Weights | 12 to 110 lb. Index (45 to 210 g/m2) |
| Printing Area | Up to 11.4" x 16.6" (290 mm x 423 mm) |
| Leading Edge Margin | Vertical +/- 15mm (Electronic) Horizontal +/- 10 mm (Manually) |
| Master Process Time | 18 seconds |
| Default Time to Sleep | 5 minute |
| Reproduction Ratio | Reduction: 50%, 64%, 77% Enlargement: 121%, 129%, 154% |
| Paper Feed/Delivery Capacity | Up to 1,500 sheets (17lb. Bond 64 g/m2 paper) |
| Master Roll Capacity | 220 masters/roll (A3) |
| Master Eject Box Capacity | 55 masters |
| Power Source | 120V, 50/60Hz |
| Typical Energy Consumption (TEC) | 2.0 kWh/week |
| Sleep Mode | 7.4W |
| Energy Star | Certified |
| Dimensions W x D x H | With Platen: 55.1" x 27.1" x 28.1" (1,401 mm x 688 mm x 715 mm) With ADF: 55.1" x 27.1" x 33.7" (1,401 mm x 688 mm x 857 mm) |
| Weight | 224.4 lb. (102 kg) |
| Special Features | Color Drum Change, Auto Rotation, Book Shadow Erasure, Economy Mode, Multiple Exposure, Confidential Safeguard, Panel Setting Memory, Shortcut Setting, Auto Pressure Control, Master Re-make, Fine Start, Prints Per Set/Document Program, Energy Saver Mode, Auto Shut Off, Replenishing Ink, Print Tray Detection, Master Remain Monitor, Used Master Roll Capacity Monitor, Ink Detection, Document Position Detection |
| Original Type | Sheet, Book |
| Zoom | 50% - 500% (by 1%) |
| Image Density | For Scanning, Master-Making and Printing: 5 Levels |
| Supported Languages | English, German, French, Polish, Spanish, Italian, Russian, Japanese, Korean, Thai, Traditional Chinese, Simplified Chinese |
| Optional Equipment | Platen Cover PN7000, Automatic Document Feeder DF7010, Printer Unit (NIC)Type D1, Printer Unit (USB) Type DI, USB Slot Type D1, Tape Dispenser Type D1, Cabinet Type K |
Cabinet Type K
ID: 52661
A3 Color Drum Type D1
ID: 243300
A4 Color Drum Type D1
ID: 243302
ADF DF7010
ID: 243299
Platen Cover PN7000
ID: 243298
Tape Dispenser Type D1
ID: 243303
Printer Unit NIC Type D1
ID: 243305
Printer Unit USB Type D1
ID: 243304
USB Slot Type D1
ID: 243306
ESP XG-PCS-15D Power Filter
ID: 006428MIU
- The ESP XG-PCS-15D power filter provides multi-stage power protection as well as line conditioning. Our Advanced Technical Support (ATS) recommends the use of Power Protection products to minimize potential electrical interference with products.
Notes:
- ESP XG-PCS-15D Power Filter cannot be installed with the ESP S1 Power Filter.
