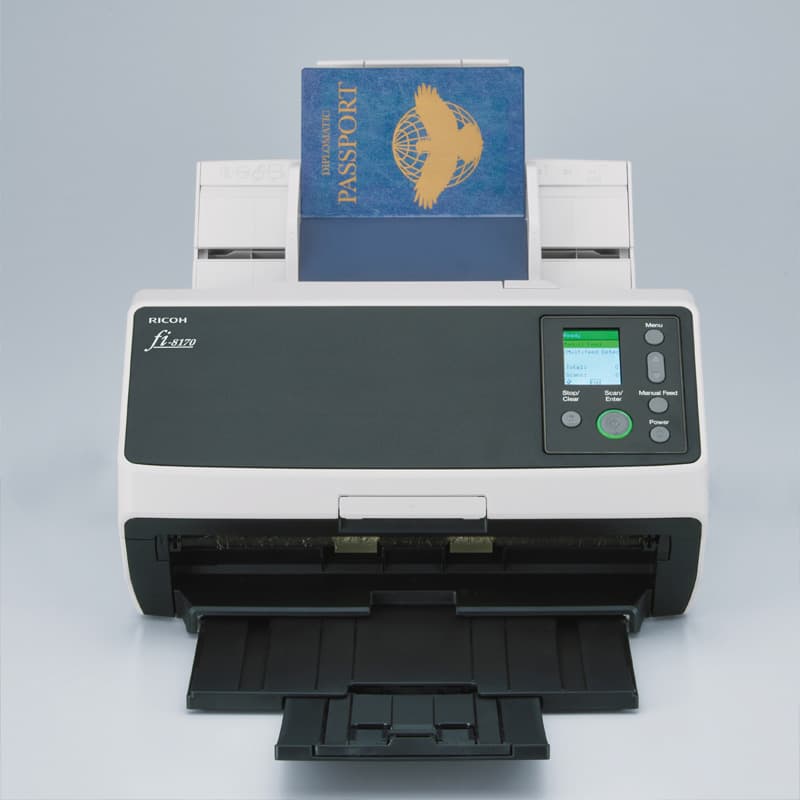

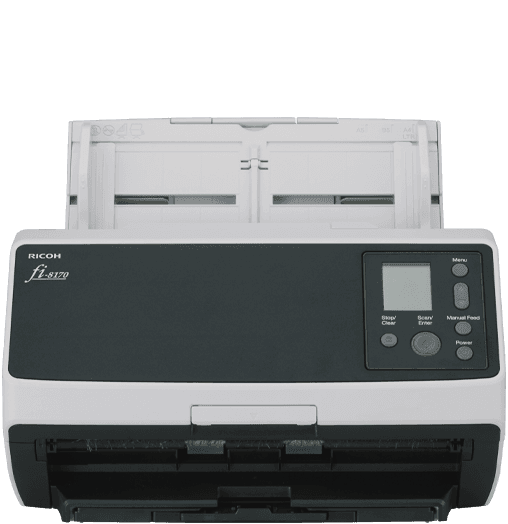

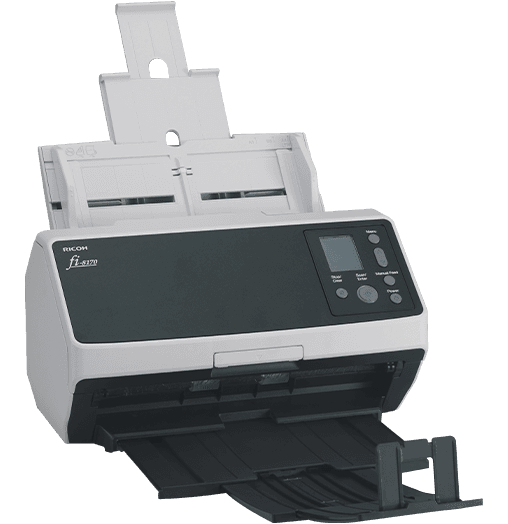

Compact size, large volume capabilities
The fi-8170 scanner provides fast and reliable color scanning and with an estimated daily scan volume of 10,000 sheets, it can work hard without taking up valuable space. Automatic Separation Control keeps your business running smoothly and Multi-feed Detection minimizes jams. Manual Feed Mode enables reading of copy forms, glued-on documents, bi-folded A3 documents and booklets up to 7mm thick.

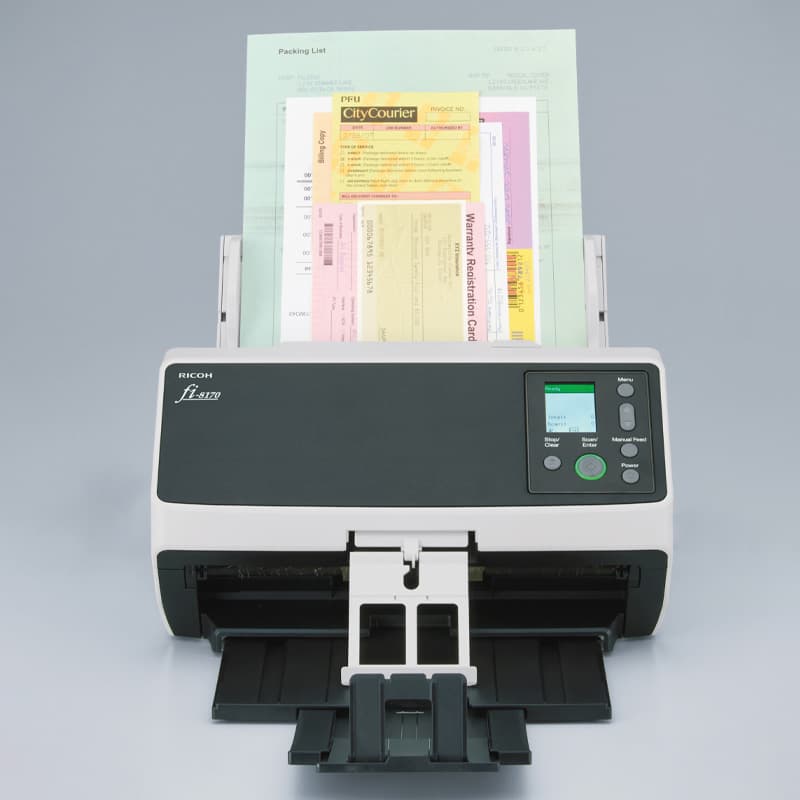

Get the entire picture
Eliminate the need to re-scan documents with the Overscan Control function. Three sensors accurately detect the tip of the document and automatically increase the scanning area to provide complete, quality images even when the document is skewed. Paired with Clear Image Capture, you get high quality images for data extraction. PaperStream software provides additional image management.

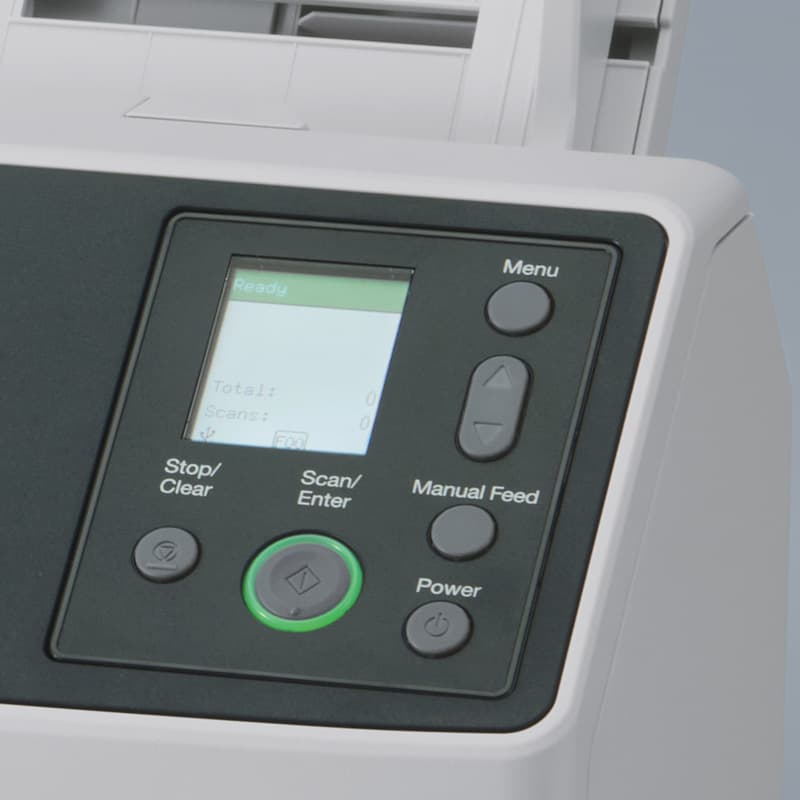

Operate easily with intuitive features
The color LCD panel allows users to intuitively operate the scanner to change between modes, view notifications and select jobs. The Stacker Supporter keeps documents of all sizes together, even when scanning mixed batches containing small pieces of paper. Features both USB and LAN connectivity, and the PaperStream NX Manager software makes it possible to scan without a PC or web application running.
Fulfill a variety of scanning needs
Perfectly suited for front office or home office needs, the fi-8170 scanner provides high volume, high speed scanning with a small footprint. The large capacity tray reduces prep time, providing you with accurate scans, allowing you to work faster and worry free.

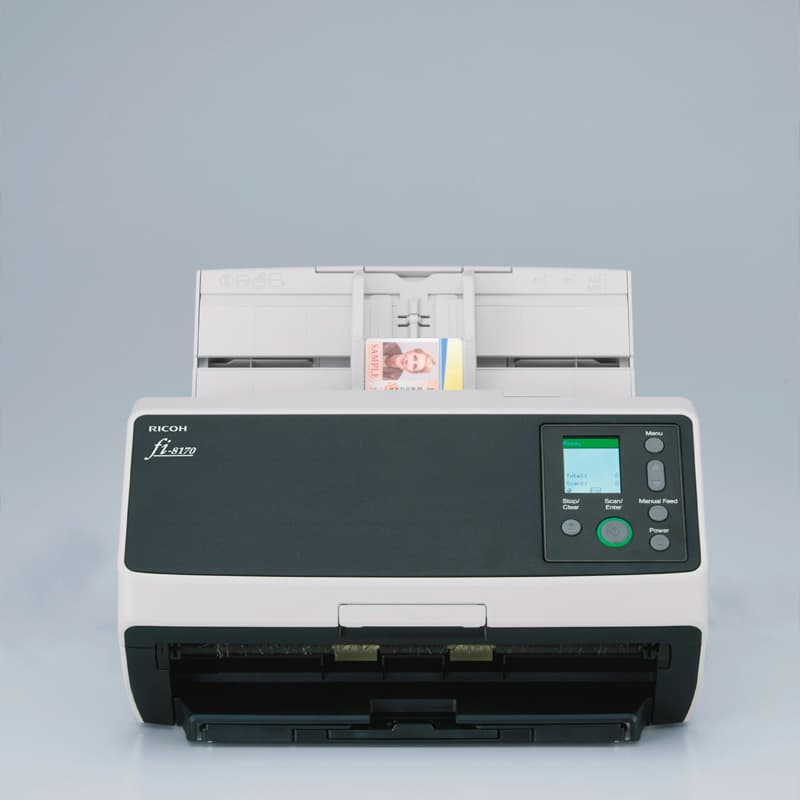

Software to support end-to-end productivity
Fi-series scanners are equipped with PaperStream IP scanner driver and PaperStream Capture software, improving your productivity by reducing the number of operations before and after scanning. Frequent manual operations such as deleting blank pages can be reduced by using the Setting Assistant on PaperStream Capture. Extract information from the MRZ (Machine Readable Zone) for efficient entry of customer information from passports and ID cards.
Government compliance and environmental regulations
TAA (Trade Agreements Act) and EPEAT Silver ratings meet Federal Government compliance standards, giving organizations confidence that the scanner meets all regulatory requirements. EnergyStar® and RoHS ratings give peace of mind that the fi-8170 scanner meets an organization's sustainability requirements, as we work together to safeguard our environment for future generations.
Need more information?
Learn more about the RICOH fi-8170 Scanner and how it may fit your business.
|Scanner Type||ADF (Automatic Document Feeder) / Manual Feed, Duplex|
|Simplex / Duplex||Duplex|
|Scanning Speed (Color/Grayscale/Monochrome)||Simplex: 70 ppm (200/300 dpi)|
Duplex: 140 ipm (200/300 dpi)
|Image Sensor||CIS x 2 (front x 1, back x 1)|
|Light Source||RGB LED x 2 (front x 1, back x 1)|
|Optical Resolution||600 dpi|
|Output Resolution (Color / Grayscale / Monochrome)||50 to 600 dpi (adjustable by 1 dpi increments), 1200 dpi (driver)|
|Output Format||Color: 24-bit, Grayscale: 8-bit, Monochrome: 1-bit|
|Background Colors||White / Black (selectable)|
|Dimensions (W x D x H)||300 x 170 x 163 mm (11.8 x 6.7 x 6.4 in.)|
|Weight||4 kg (8.8 lb)|
|Supported Operating System||Windows® 11, Windows® 10, Windows Server® 2022, Windows Server® 2019, Windows Server® 2016, Windows Server® 2012 R2, Windows Server® 2012, macOS*17, Linux (Ubuntu)|
|Image Processing Functions||Multi image output, Automatic color detection, Blank page detection, Dynamic threshold (iDTC), Advanced DTC, SDTC, Error diffusion, Dither, De-Screen, Emphasis, Dropout color (None/Red/Green/Blue/White/Saturation/Custom), sRGB output, Hole punch removal, Index tab cropping, Split image, De-Skew, Edge filler, Vertical streaks reduction, Background pattern removal, Cropping, Static threshold|
