Speed turnarounds, satisfy customers

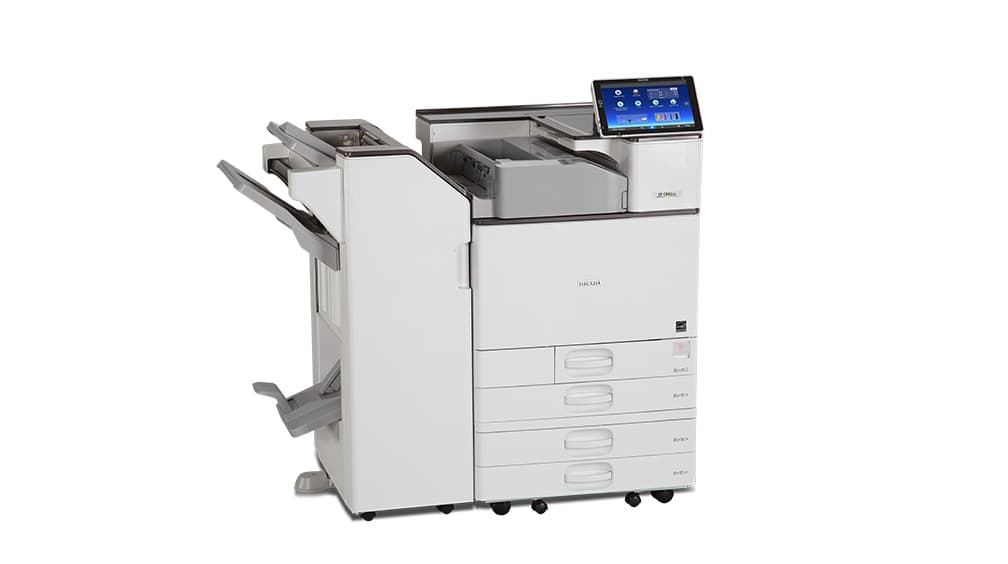

SP C840DN Color Laser Printer to produce professional-quality color documents in-house and avoid outsourcing delays and costs. Produce up to 45 pages per minute (ppm), even in duplex mode, so your audience has critical information when they need it most. Reload paper and replace toner and drums in moments without technical assistance.
Compel with quality color
Add impact with more media
Finish in style, in house
Get personal, stay productive
Integrate software, improve workflow
Work on the run
Track users, devices and protect information
Make energy savings your responsibility
Need more information?
Configuration | Desktop |
---|---|
Color / Black & White | Color |
Technology | Color laser electro-photographic printing |

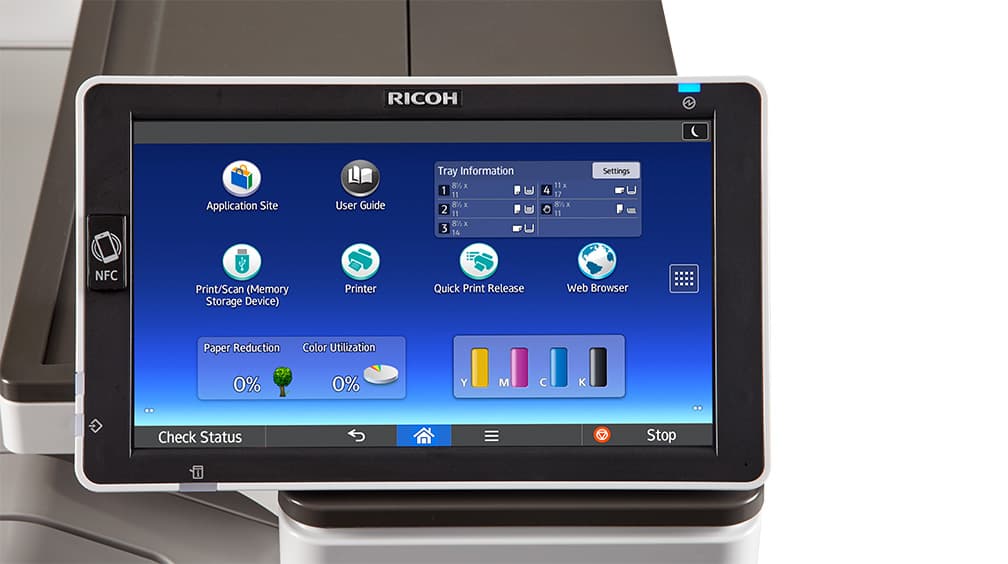

Operation Panel | 10.1" Smart Operation Panel color touchscreen with integrated USB 2.0 host port and SD card slot |
Black & White Speed | 45 ppm |
Color Print Speed | 45 ppm |
Duplex Print Speed | Near 100% productivity for all paper sizes |
Maximum Monthly Volume | 10000 |
First Print Speed | B&W: 4.0 seconds or less; Full-color: 5.7 seconds or less |
Warm-Up Time | 22 seconds or less |
Recovery from Sleep Mode | 7.3 seconds |
Print Resolution | Up to 1200 x 1200 dpi |
Standard Paper Capacity | 550-Sheet x 2 Paper Tray + 100-Sheet Bypass Tray (1,200 sheets total capacity) |
Maximum Paper Capacity | 4,700 Sheets (Standard Trays 1 & 2 + 2,000-Sheet LCT + 1,500-Sheet Side LCT + 100-Sheet Bypass) |
Output Capacity | Standard: 500 sheets, face down (8.5" x 11" or smaller); 250 sheets, face down (8.5" x 14" or larger) Maximum: Up to 4,000 sheets with Finisher, Bridge Unit and 4-Bin Mailbox |
Supported Paper Sizes | Standard Tray 1: Fixed for Letter (8.5" x 11") (216 x 279mm), A4, A5 Standard Tray 2 and Optional Paper Feed Units: User adjustable up to 12" x 18" including Letter (8.5" x 11"), Legal (8.5" x 14"), Exec (10.5" x 7.25"), Ledger (11" x 17"), A3, A4, A5, A6; Custom Sizes: 3.55" x 5.83" - 12.6" x 18" (90 x 148 mm to 320 x 457 mm); Envelopes for Tray 2: Com10, Monarch, C5, C6, DL; Envelopes for Optional Paper Feed Units: Com10, C5 Bypass Tray: User adjustable up to 12" x 18" including 5.5" x 8.5" to 11" x 17" (140 x 216 mm to 279 x 432 mm), A3, A4, A5, A6; Custom Sizes: 3.55" x 5.83" to 12.6" x 49.6" (90 x 148 mm to 320 x 1260 mm) and Envelopes: Com10, Monarch, C5, C6, DL Optional 2,000-Sheet LCT and Optional 1,500-Sheet Side LCT: Fixed for Letter (8.5" x 11") (216 x 279 mm), A4 When Duplexing: 3.55" x 5.83" to 12.6" x 18" (90 x 148 mm x 320 x 457 mm) |
Supported Paper Weights | Standard Trays: 16 - 82 lb. Bond/170 lb. Index (60 - 300 g/m2) Bypass Tray: 16 - 82 lb. Bond/170lb. Index (52-300g/m2) Optional Paper Feed Units, Optional 2,000-Sheet LCT and Optional 1,500-Sheet Side LCT: 14 - 82 lb. Bond/170 lb. Index (52 - 300 g/m2) Duplex Unit: 14 - 68 lb. Bond140 lb. Index (52- 256 g/m2) |
Supported Paper Types | All Sources: Plain Paper, Recycled Paper, Color Paper, Letterhead, Special Paper 1-3, Card Stock, Bond Paper, Preprinted Paper, Coated Paper Envelopes: Com10 and C5 envelopes can be fed using Standard Tray 2, Bypass Tray and Optional Paper Feed Units Bypass Tray Only: Labels, OHP |
Duplexing | Automatic (standard) |
Power Requirements | 120 - 127V, 60 Hz |
Power Consumption | Operating: 1,584 W or less; Sleep Mode: 0.7W |
Typical Energy Consumption (TEC) | 0.518 kWh/week TEC value is measured based on the ENERGY STAR Ver.3.0 test method. |
Dimensions W x D x H | 23.1" x 27" x 34" (587 x 685 x 864 mm) (Standard Configuration) |
Weight | 187 lb. (85 kg) |
Mail Box CS3010
ID: 407965
- The 4-Bin Mailbox offers workgroups the ability to separate and stack document output to designated bins directly from the print driver. This option helps keep workflows streamlined and organized.
- Weight: 28.7 lbs. (13 kg)
- W x D x H (inches): 21.9 x 21.4 x 19.9
- W x D x H (mm): 556 x 544 x 505
Notes:
- The Mailbox CS3010 can be installed by itself or simultaneously with either Finisher, the Attention Light or the paper supply options.
Output Jogger Unit Type M25
ID: 417630
- Aligns and stacks output delivered to Finisher SR4150 or Booklet Finisher SR4160.
Booklet Finisher SR3220
ID: 417484
- 1,000-sheet Booklet Finisher.
- Allows documents to be professionally finished as paginated, saddle-stitched booklets. It provides three destinations for output, and offers optional hole-punching. Ideal for the production of program guides, instruction sheets, newsletters, and meeting agendas.
- Supports Paper Sizes up to 12" x 18".
- Weight: 87.3 lbs. (40 kg)
- W x D x H (inches): 22.2 x 24.4 x 37.8
- W x D x H (mm): 564 x 620 x 960
Notes:
- 1. The Bridge Unit BU3070 is required to add this option.
- 2. Booklet Finisher SR3220 cannot be installed with these options: Internal Shift Tray SH3070, Internal Finisher SR3130, Finisher SR3210, Finisher SR3230, or any related options.
Bridge Unit BU3070
ID: 417587
- A required accessory when the main unit is configured with an external finisher. The Bridge Unit transports pages from the standard exit area into a Finisher for online stapling or hole-punching.
Notes:
- One of the following finishers is required to add this option: Finisher SR3210, Finisher SR3230, Booklet Finisher SR3220, or Booklet Finisher SR3240.
Finisher SR3210
ID: 417483
- 1,000-sheet Finisher.
- For offices that produce collated and stapled sets of documents, the SR3210 helps shorten production time. It offers 50-sheet, multi-position stapling, mixed sized stapling, optional hole-punching, and shift-sort collating, as well as a staple-less binding capability of up to 5 sheets.
- Supports Paper Sizes up to 12" x 18".
- Weight: 60 lbs. (27 kg)
- W x D x H (inches): 22.2 x 24.4 x 37.8
- W x D x H (mm): 564 x 620 x 960
Notes:
- 1. Bridge Unit BU3070 is required to add this option.
- 2. Finisher SR3210 cannot be installed with these options: Internal Shift Tray SH3070, Internal Finisher SR3130, Finisher SR3230, Booklet Finisher SR3220, Booklet Finisher SR3240, or any related options.
Finisher SR3230
ID: 417487
- 3,000-sheet Finisher.
- For offices that produce collated and stapled sets of documents, the SR3230 helps shorten production time. It offers 50-sheet, multi-position stapling, mixed sized stapling, optional hole-punching, and shift-sort collating.
- Supports Paper Sizes up to 12" x 18".
- Weight: 74 lbs. (33.5 kg)
- W x D x H (inches): 25.9 x 24.1 x 37.8
- W x D x H (mm): 658 x 612 x 960
Notes:
- 1. Bridge Unit BU3070 is required to add this option.
- 2. Finisher SR3230 cannot be installed with these options: Internal Shift Tray SH3070, Internal Finisher SR3130, Finisher SR3210, Booklet Finisher SR3220, Booklet Finisher SR3240, or any related options.
Internal Multi-Fold Unit FD3000
ID: 417838
- Multi-fold option that allows for the creation of professionally designed finished documents such as newsletters, brochures, and sales and marketing materials. Folding patterns include Z-Fold, Half-Fold, Outer Tri-Fold and Inner Tri-Fold.
- Weight: 33 lbs. (15 kg)
- W x D x H (inches): 24.1 x 21.9 x 7.3
- W x D x H (mm): 612 x 556 x 185
Notes:
- 1. Internal Multi-Fold Unit FD3000 cannot be installed with Internal Shift Tray SH3070, Internal Finisher SR3130, or any related options.
- 2. This option or Bridge Unit BU3070 must be installed when adding the following items: Hybrid Finisher SR3210, Finisher SR3230, Booklet Finisher SR3220, or Booklet Finisher SR3240.
Punch Unit PU3050 NA
ID: 416609
- Optional hole punching for the Finisher SR3210 or Booklet Finisher SR3220.
- Supports Paper Sizes up to 11" x 17".
Notes:
- 1. Finisher SR3210 or Booklet Finisher SR3220 is required to for this option.
- 2. Punch Unit PU3050NA cannot be installed with the Internal Finisher SR3130 or Internal Finisher SR3180.
Punch Unit PU3060
ID: 416612
- Optional hole punching unit for Finisher SR3230, Booklet Finisher SR3240, Finisher SR4120 or Booklet Finisher SR4130.
Notes:
- 1. One of the following finishers is required to add this option: Finisher SR3230, Booklet Finisher SR3240, Finisher SR4120 or Booklet Finisher SR4130.
- 2. This option cannot be installed with Finisher SR4080.
Cabinet Type F
ID: 100478FNG
- Provides businesses with a convenient option for the storage of supplies and paper.
- Can only be configured with the standard configuration.
- Weight: 32.3 lbs. (14.7 kg)
- W x D x H (inches): 23.1 x 26.7 x 10
- W x D x H (mm): 587 x 678 x 254
Notes:
- Cabinet Type F cannot be installed with any Paper Feed Unit.
Caster Table Type M3
ID: 416737
- The caster table must be added to the configuration when the PB3250 Paper Feed Unit is selected. It provides a platform with wheels to easily move the device.
Notes:
- 1. Paper Feed Unit PB3250 is required for this option.
- 2. Caster Table Type M3 can only be installed with Paper Feed Unit PB3250.
LCIT PB3260
ID: 408116
- Provides an additional 2,000 sheets.
- Paper Sizes up to 8.5" x 11"/A4.
- Paper Weights up to 300 g/m<sup>2</sup>.
- Weight: 48.5 lbs. (22 kg)
- W x D x H (inches): 23.1 x 27 x 9.7
- W x D x H (mm): 587 x 686 x 246
Notes:
- LCIT PB3260 cannot be installed with Paper Feed Unit PB3240, Paper Feed Unit PB3250, Caster Table Type M3, or Cabinet Type F.
LCIT RT3030
ID: 416548
- Provides an additional 1,500 sheets.
- Paper Sizes up to 8.5" x 11"/A4.
- Paper Weights up to 80 lb. Bond/166 lb. Index (300 g/m<sup>2</sup>).
- Weight: 21.6 lbs. (9.8 kg)
- W x D x H (inches): 13.4 x 21.4 x 11.4
- W x D x H (mm): 340 x 544 x 290
Notes:
- 1. LCIT RT3030 cannot be installed with any of these Paper Bank options: Paper Feed Unit PB3250, Caster Table Type M3, or Cabinet Type F.
- 2. LCIT RT3030 must be configured with either the Paper Feed Unit PB3240 or PB3260.
Paper Feed Unit PB3240
ID: 408112
- Provides an additional 1,100 sheets.
- Paper Sizes up to 12" x 18".
- Paper Weights up to 300 g/m<sup>2</sup>.
- Weight: 48.5 lbs. (22 kg)
- W x D x H (inches): 23.1 x 27 x 9.7
- W x D x H (mm): 587 x 686 x 246
Notes:
- 1. Paper Feed Unit PB3240 cannot be installed with Paper Feed Unit PB3250, Paper Feed Unit PB3260, Caster Table Type M3, or Cabinet Type F.
Paper Feed Unit PB3250
ID: 408114
- Provides an additional 550 sheets.
- Paper Sizes up to 12" x 18".
- Paper Weights up to 300 g/m<sup>2</sup>.
- Weight: 24 lbs. (10.9 kg)
- W x D x H (inches): 23.1 x 27 x 4.7
- W x D x H (mm): 587 x 686 x 119
Notes:
- 1. Paper Feed Unit PB3250 cannot be installed with Cabinet Type F, Booklet Finisher SR3220 or any related options.
- 2. This option must be installed with Caster Table Type M3.
HDD Option Type P11
ID: 408047
- HDD is required for Sample Print, Locked/Secure Print, HDD Hold & Storage Print, Stored Print, Stored Print (Shared), and Cover Sheet features.
- This option may only be installed on the SP C840DN since the Hard Disk Drive is standard on the SP C842DN.
Imageable Area Extension Unit Type P11
ID: 408046
- Allows customers to print crop marks for proofing SRA3/12.6" documents.
Notes:
- 1. Fusing Unit SP C840 for SRA3 is required to add this option.
- 2. Imageable Area Extension Unit Type P11 cannot be installed with Fusing Unit SP C840.
PostScript3 Unit Type P11
ID: 408091
- Genuine Adobe® PostScript®. Required for printing from Mac OS. Recommended for printing more complex color and PDF files.
Notes:
- PostScript3 Unit Type P11 cannot be installed with Camera Direct Print Card Type M19, XPS Direct Print Option Type P11, or VM Card Type P8.
PrinterOn HotSpot Portal Inc. 1 Year
ID: COM1-PS1
- Allows users to easily print from any mobile platform connected to Wi-Fi or the Internet, directly to a HotSpot enabled device (MFP/Printer).
XPS Direct Print Option Type P11
ID: 408040
- Allows for direct printing of XPS-type file formats.
Notes:
- XPS Direct Print Option Type P11 cannot be installed with PostScript3 Unit Type P11, Camera Direct Print Card Type M19, or VM Card Type P8.
Banner Paper Guide Tray Type M19
ID: 417485
- Recommended when printing on banner paper to avoid paper skew.
- Supports Paper Sizes up to 12.8" x 49".
Camera Direct Print Card Type M19
ID: 417507
- Allows users to connect a PictBridge-compatible digital camera directly to the MFP, enabling the printing of photos without a computer.
Notes:
- Camera Direct Print Card Type M19 cannot be installed with Color Controller E-23C or any related options.
Extended USB Board Type M19
ID: 417566
- Required for printing from USB Type B port.
Notes:
- Extended USB Board Type M19 cannot be installed with IEEE 1284 Interface Board Type M19, IEEE 802.11a/g/n Interface Unit Type M19, or File Format Converter Type M19.
IEEE 1284 Interface Board Type M19
ID: 417596
- For environments that require parallel connectivity.
- Allows device connection with legacy computer equipment.
Notes:
- IEEE 1284 Interface Board Type M19 cannot be installed with IEEE 802.11a/g/n Interface Unit Type M19, File Format Converter Type M19, or Extended USB Board Type M19.
IEEE 802.11a/g/n Interface Unit Type M19
ID: 417493
- This option allows you to connect the device to an IEEE 802.11 a/b/g/n wireless LAN.
USB Device Server Option Type M19A
ID: 418105
- An interface board for adding an extra Ethernet port. If you install the USB Device Server Option, you can connect two Ethernet cables simultaneously: one to the machine's Gigabit Ethernet port and one to the Gigabit Ethernet port of USB Device Server Option. An IP address can be assigned to each connection and you can use one machine to print from different network segments.
Notes:
- USB Device Server Option Type M19A cannot be installed with IEEE 1284 Interface Board Type M19, IEEE 802.11a/g/n Interface Unit Type M19, File Format Converter Type M19, or Extended USB Board Type M19.
Attention Light AL3000
ID: 407964
- The attention light visually alerts operators to changes in status system for prompt attention.
- Weight: .66 lbs. (.3 kg)
- W x D x H (inches): 4 x 4.1 x 23.9
- W x D x H (mm): 102 x 104 x 607
ESP XG-PCS-15D Power Filter
ID: 006428MIU
- The ESP XG-PCS-15D power filter provides multi-stage power protection as well as line conditioning. Our Advanced Technical Support (ATS) recommends the use of Power Protection products to minimize potential electrical interference with products.
Notes:
- ESP XG-PCS-15D Power Filter cannot be installed with the ESP S1 Power Filter.
External NFC Card Reader Bracket Type P11
ID: 408066
- Table shaped option used to place either card reader or counter device.
NFC Card Reader Type P11
ID: 408088
- Used to login and authenticate users via NFC card. The card reader and its cable will be covered inside the mainframe when this option is attached.
VM Card Type P8
ID: 407864
- The VM Card enables the installation of embedded software applications.
Notes:
- 1. When this option is configured with the SP C840DN, HDD Option Type P11 is required to add this option.
- 2. VM Card Type P8 cannot be installed with PostScript3 Unit Type P11, Camera Direct Print Card Type M19, or XPS Direct Print Option Type P11.
