Display Touch Panel
Panel Size
Diagonal: 21.5" wide (546 mm)
Display Type
Electrostatic display
Effective Display Area W x H
18" x 10.5" (475.2 x 267.3 mm)
Resolution
Maximum: 1,920 x 1,080 dpi
Display Color
Maximum: 16.7 million colors
Brightness
Maximum: 250 cd/m²
Response Speed
14 ms (Grey to Grey, Ave.)
Viewing Angle HV
178°/178°
Display Orientation
Landscape
Touch Sensor
Technology
Capacitance touch
Accuracy
+/-1 mm in touchable areas
Operating System
Single-touch: Windows 7 Home Basic/Home Premium/Ultimate/Professional; Windows 8 and 8.1 Pro/Enterprise; Windows 10 Technical Preview; Windows Embedded Standard 7 P; Mac OS 10.6 and later; Android Multi-touch: Windows 7 Home Premium/Ultimate/Professional; Windows 8 and 8.1 Pro/Enterprise; Windows 10 Technical Preview; Windows Embedded Standard 7 P, Android
Touch Output
USB 2.0 (Type B)
Cover Glass
Pretreated anti-glare 1.1 mm thick
General
Video Input
VGA x 1, HDMI x 1, DisplayPort x 1
Audio Input
Microphone (embedded)
Audio Output
Headphone (not supplied) and internal, stereo 12W + 12W speakers

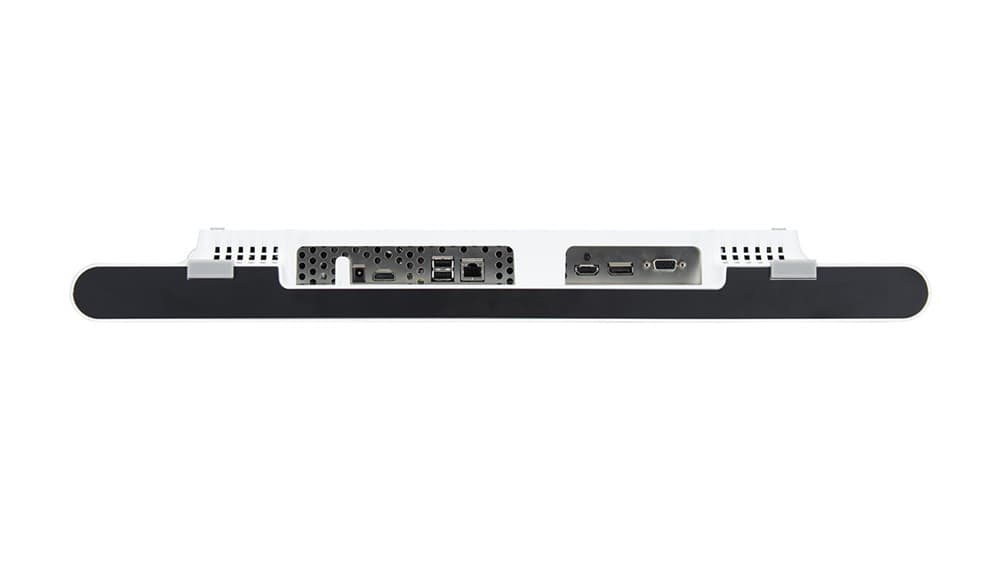

Interfaces
USB 2.0 TYPE A x 3
Network Connection
Wired LAN: 10BASE-T/100BASE-T/1000BASE-T; DVI x 1
Dimensions W x D x H
22.4" x 2.4" x 15.2" (570 x 62 x 385 mm)
Power Source
100 - 240 V, 50/60 Hz
User Functions
Select, Delete (Erase), Undo/Redo, Save to USB/Network Folder/Interactive Whiteboard, Open PDF and PPT files from USB and Network Folder, Screen Page Select, Capture Page, Add New Page, Captured Page List, Delete Page, Copy Page, Marker Function, Auto Firmware Download
Enhanced Features
Zooming Recovery function Email Page Print Data saving form: PDF v1.4 Max. page creation: 100 Max. strokes/page: 3,000
Remote sharing function
Up to 20 RICOH Interactive Whiteboards or RICOH Projector Systems Up to 20 remote viewers per Interactive Whiteboard
CPU
Intel Core i3 5010U 2.1GHz
Operating Systems
Windows Embedded Standard 8 (64-bit)
Environmental Data
Power Consumption
Maximum: Less than 65W
Start-up time
About 70 seconds
Recovery time from stand-by mode
About 5 sec.
Operating Temperature
0°C - 32°C
Operating Humidity
10% - 80%
Altitude limitation
Lower than 2,000 m (sea level)
