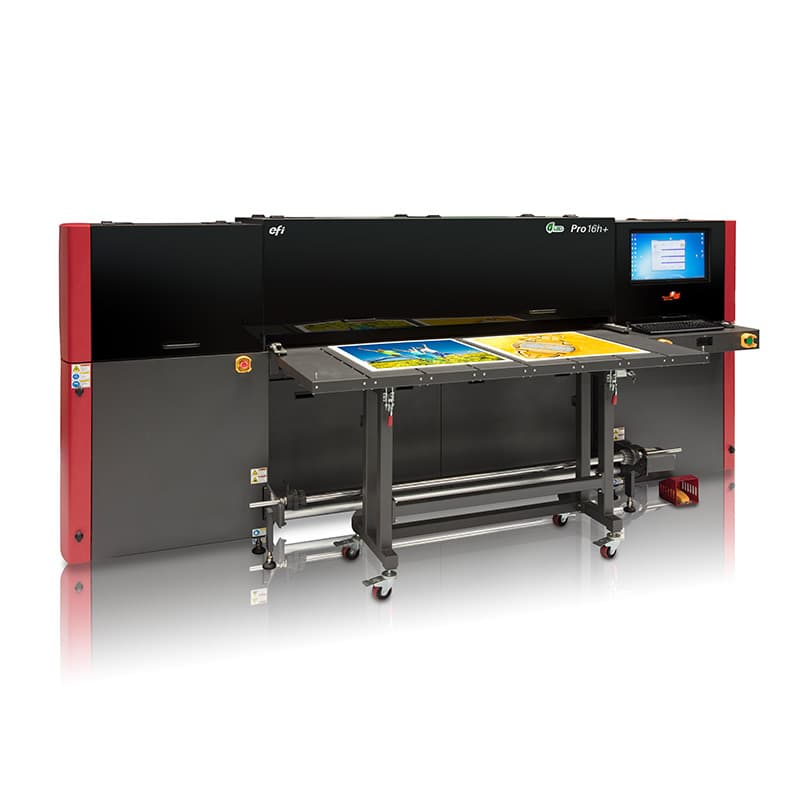

EFI H1625 / Pro 16h

Wide Format Hybrid Printer

Call for more information: 1-800-63-RICOH  8am-5pm CT M-F

Capture more wide-format market share

Expand capacity and enter new markets with the mid-level EFI® H1625 and the high-speed EFI® Pro 16h Wide Format Hybrid UV LED Flatbed Printers. Proven print technology can help your graphic arts business grow with vivid output, ease of use, low total cost of ownership and more:

  • Near-photographic images with up to 1200 dpi x 1200 dpi resolution
  •  CMYK plus white colors on both flexible and rigid substrates in a single pass
  • Instant on/off LED lamps that increase uptime and productivity
  • Efficient, environmentally friendly LED printing that reduces energy costs
application-versatility

Exceptional application versatility

Produce unique applications for indoor and outdoor use that help your customers stand out. A single hybrid system covers a spectrum of possibilities for stunning large-format output.

print-quality

Outstanding print quality that lasts

Advanced wide-format technologies produce durable pieces with near-photographic quality. UV inks, LED cool curing and our Gen 5 printheads work together reliably to produce consistent, repeatable color.

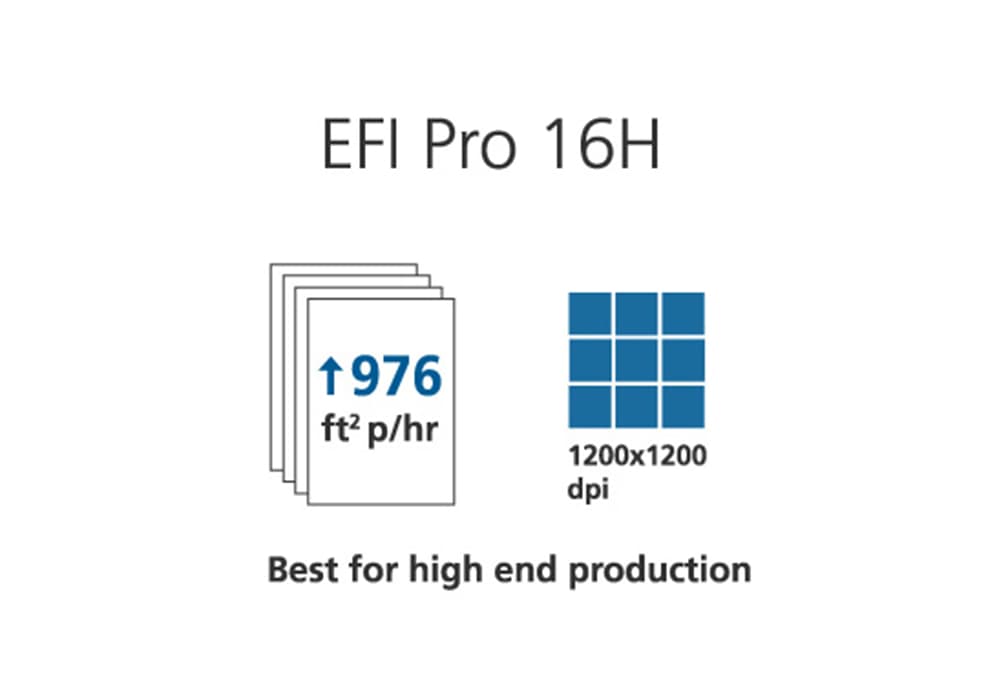

Rethink wide-format performance

Optimize flatbed and roll-fed throughput with a space-saving design engineered to maximize uptime and productivity.

differentiation



Innovative hybrid wide-format printers that let you unleash your creativity.



Think outside the box for flatbed and roll-fed applications

With up to 64" full-bleed printing, your application possibilities are nearly limitless. Print on diverse substrates up to 65” wide and 2” thick. A modular, tandem table allows you to switch easily from rigid to roll-to-roll or roll-to-sheet printing in minutes. These wide-format flatbed printers handle rolls up to 9” in diameter and weights up to 100 lb.

Redefine media flexibility

Go beyond paper with materials like styrene, ceramic tile, static cling, vinyl and wood for posters, custom signage and more. LED curing technology allows you to print on many substrates and specialty materials at production speeds. Whether you're a commercial printer, print-for-pay shop or in-plant business, you and your customers can explore a range of creative choices.

custom-signage


Create custom signage


unique-substrates


Use unique substrates


posters


Print popular posters


indoor-pieces

Help your customers get noticed with vibrant indoor pieces

Print marketing and promotional materials that turn heads. Near-photographic image quality can transform point-of-purchase (POP) items, store decals, exhibition graphics and display graphics into eye-catching, memorable experiences.

Set higher standards for outdoor advertising

Enhance your customers' brand with distinctive materials that can withstand the elements. LED technology and the ability to print on rigid substrates allow you to expand your expertise into new opportunities, such as: bus shelters, day-night backlit graphics, fleet graphics, banners and signs, custom signage and more.
experts

Ricoh experts back your business

When you invest in one of our large-format color printing solutions, you can count on us to be a committed business partner that is focused on your success. Our professional services team will help you make the most of your wide-format opportunities, whether you want to offer more to your customers, expand into new markets, or both.



Produce beautiful, durable output that keeps customers coming back.


captivating-color

Stand out with captivating color

Print vibrant, near-photographic images with white ink and single-pass, multi-layer printing. CMYK plus two white channels are standard, along with up to eight levels of variable drop grayscale for smooth gradations. The H1625 wide-format printer offers up to 1200 x 600 dpi resolution, and the Pro 16h up to 1200 x 1200 dpi resolution.

flexible-applications

Flexible UV ink for more flexible applications

Expand your substrate possibilities with UV ink and LED curing, which uses light — not heat — to improve resistance to damage, weather and abrasion. Cool-curing technology allows you to produce high-margin jobs while reducing operating costs and energy consumption. Ink choices include 3M ink, which is suitable for applications that need to be stretched or heated, and POP ink for the greatest adhesion onto rigid media.

better-quality

Better printheads for better quality

The EFI® Pro 16h UV LED flatbed printer uses Ricoh’s Gen 5 printheads and variable dot system, which together deliver smooth, even prints. The small dot size uses less ink, yet excels at providing exquisite detail and fine quality. Impress your most quality-conscious clients, whether you're a commercial printer, print-for-pay shop or in-plant operation.

color-management

Be known for your color management expertise

Produce consistent color that adheres to your high standards. Our color management experts can show you how to achieve the best quality output from your large-format printer by mastering calibration, standardization techniques and more.



Exceptional performance leads to exceptional results. Improve margins with speed, ease of use and efficient workflow.




Boost productivity with a 2-in-1 wide-format printer

Save space and expand your offerings with a single wide-format solution that has both flatbed and roll-fed capabilities. The EFI 1625H prints up to 458 sq. ft. per hour, and the high-performance EFI Pro 16h prints up to 976 sq. ft. per hour.


performance

wide-format

Hybrid wide-format operation made easy

With minimal training your operators can quickly set up jobs, change ink bottles and switch media. Media replacement is easy thanks to the vacuum belt drive system with variable control and automatic head height adjustment. LED technology enables smooth job completion on the widest range of substrates, and the H1625 and Pro 16h work with industry-standard file formats so compatibility issues won't slow you down.

workflow-efficiency

Digital front end options that boost workflow efficiency

The H1625 and Pro 16h wide-format printers come with an integrated PC, monitor, keyboard and mouse. The Pro 16h includes an embedded EFI® Fiery® proServer digital front end (DFE) with FAST RIP technology, while the H1625 is ready to integrate with web-to-print and MIS/ERP solutions, thanks to native JDF connectivity. Both printers offer RIP and print-on-demand capabilities, and the ability to print pre-ripped files from the printer interface.

greener-printing

A greener printing solution

As an alternative to arc lamp UV, solvent and latex printers, the EFI® wide-format LED printers use fewer consumables and provide up to a 20 percent reduction in energy and operating costs. Non-degradable bulbs allow you to print with consistency, and instant on/off LED lamps require no warm-up time. Advanced imaging technology increases color accuracy, reducing media waste on unnecessary proofs.

Get end-to-end document production, in-house.

Professional finishing solutions help maximize what you can produce with the EFI Pro 16H/H1625.

Wide Format Finishing

Colex Sharpcut SX-1616

A 5'x5' flatbed cutter that allows you to expand and automate your finishing capabilities. The package pricing includes a flatbed cutter, computer, stand, operating system and Windows® software, vision registration system, a three-horsepower router, two tool holders, installation and onsite training.

Colex Sharpcut SX-1631C

A 10'x10' flatbed cutter that allows you to expand and automate your finishing capabilities. The package pricing includes a flatbed cutter, computer, stand, operating system and Windows® software, vision registration system, a three-horsepower router, two tool holders, installation and onsite training.

Colex Sharpcut SX-1631

A 5'x10' flatbed cutter that allows you to expand and automate your finishing capabilities. The package pricing includes a flatbed cutter, computer, stand, operating system and Windows® software, vision registration system, a three-horsepower router, two tool holders, installation and onsite training.

General Specifications

Configuration

Hybrid roll/flatbed
Flatbed

Resolution

Standard CMYK plus two white channels:
H1625 - Up to 1200 x 600 dpi
Pro 16h - Up to 1200 x 1200 dpi

Cutting Method

Cut after printing

Power Source

H1625 / Pro 16h: 208-240 VAC, single phase, 50/60 Hz, 30 Amps

Dimensions W x D x H

H1625: Dimensions (WxDxH) with one set of tables: 137 in (348 cm) x 88 in (224 cm) x 64 in (163 cm)
Depth: 36 in (91 cm) without tables or rollers, 54 in (137 cm) with tables
Pro 16h: Dimensions (WxDxH) with one set of tables: 137 in (348 cm) x 95 in (241 cm) x 64 in (163 cm)
Depth: 54 in (138 cm) without tables or rollers, 95 in (241 cm) without tables

Weight

H1625 / Pro 16h: 2,722 lbs (1,235 kg), including tables and rollers

Printer Specifications

Controller Board

H1625: EFI Fiery® XF RIP
Pro 16h: Embedded EFI Fiery proServer digital front end

Print Speed

H1625: Up to 458 ft2/hr (42 m2/hr)
Pro 16h: Up to 976 ft2/hr (91 m2/hr)

Supported File Formats

All popular desktop files formats, including: PostScript® 3TM, EPS, TIFF, PDF, and RGB/CMYK

Product Support

Find drivers, manuals, brochures and more. Can't find what you need? Contact us: 1-877-318-8968
